Troxler RoadReader 3430 - Figure 13. Nimh Battery Pack and AA Batteries; Table 4. Typical Battery Operating Life

Appendix A–12
BATTERY PACK
CONNECTOR
BATTERY
SELECT SWITCH
AA ALKALINE
BATTERIES (5)
BATTERY
PACK SCREW
BATTERY
PACK CABLE
BATTERY
PACK SCREW
RECHARGEABLE
BATTERY PACK

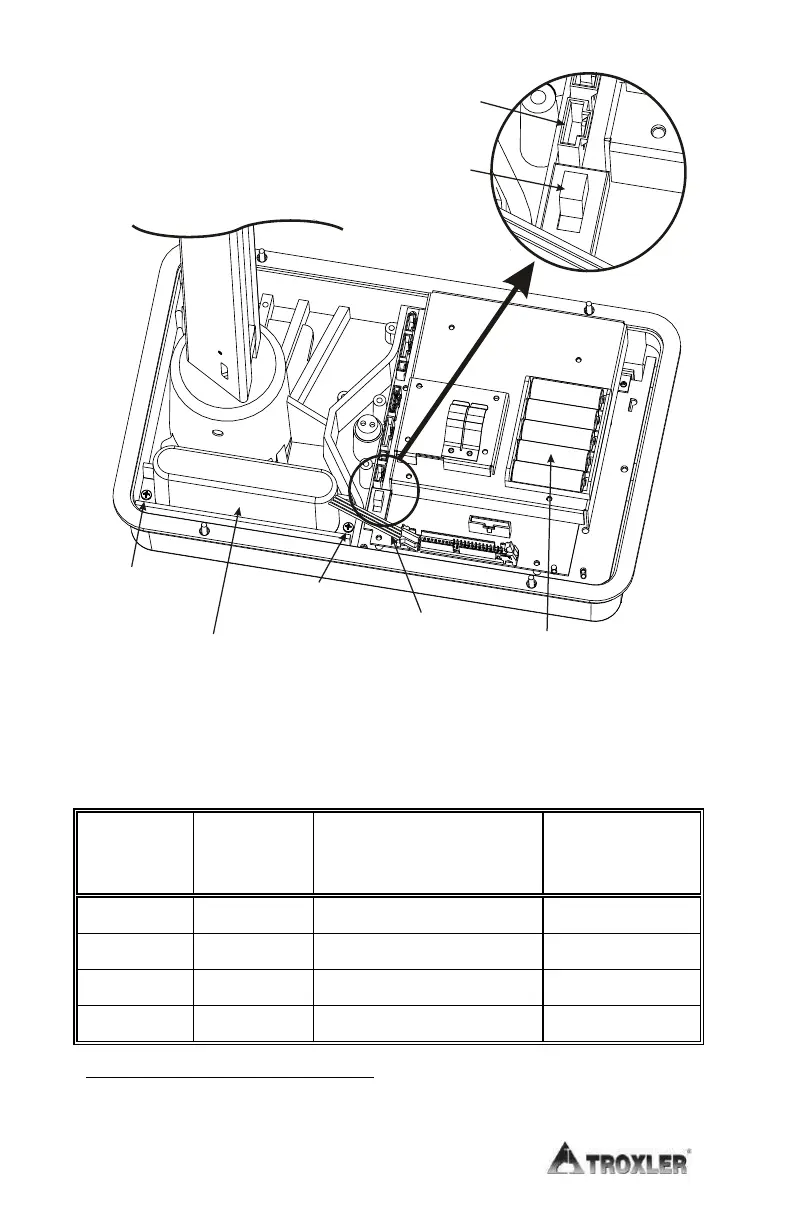

Figure 13. NiMH Battery Pack and AA Batteries
Table 4. Typical Battery Operating Life
Backlight
GPS
Installed?
Typical Life,
NiMH Battery Pack*
Typical Life,
AA Batteries*
Off
No
110 hours
55 hours
Off
Yes
35 hours
18 hours
On
Yes
15 hours
8 hours
On
No
25 hours
13 hours
*
From full charge
