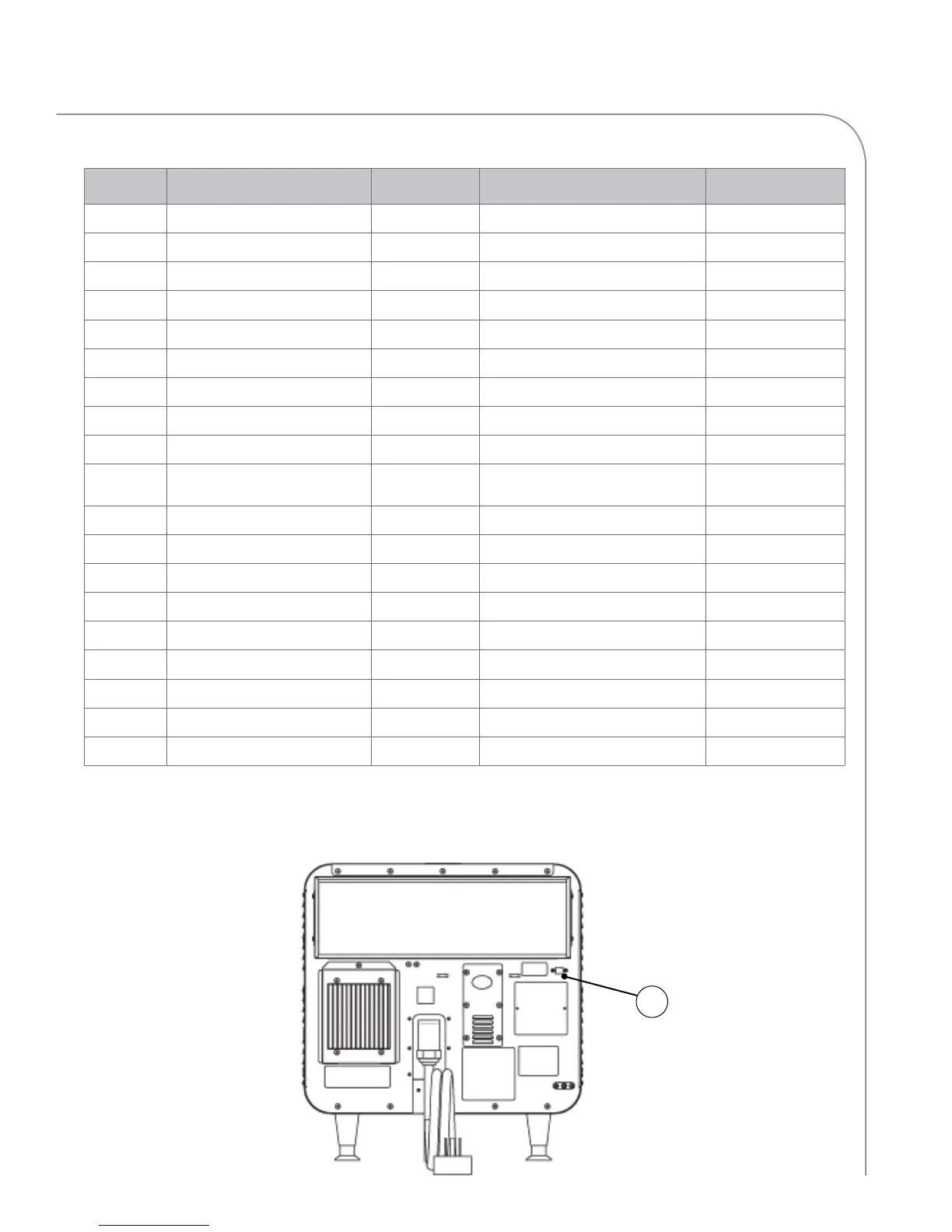

A-11
ENCORE APPENDIX REPLACING OVEN COMPONENTS
Figure
Reference #
Item Description Item Part Number Fastener Description Fastener Part Number
1 Bracket, Control Board, Support ENC-1098 Screw, #6-32 x 1/4”, Int Tooth, PPH, SS 102910 (qty 4)
Not Shown Cable, Display, 5” ENC-1311 None None
2 Cable, Extension, Ethernet 100164 Screw, #4-40 x .25, PPH Sems Int Tooth, SS 101520 (qty 2)
Not Shown Cable, Control Board to Light Ring ENC-1312 None None
Not Shown Cable, Light Ring to USB/Card Reader 100182 None None
3 Casting, Keypad ENC-1116 Screw, #6-32 x 1/4”, Int Tooth, PPH, SS 102910 (qty 6)
4 Clip, Speaker Mounting HCT-4104 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
5 Cover, USB Port ENC-1189 None None
6 Display ENC-3011
Screw, #6-32 x 1/4”, Int Tooth, PPH, SS
Washer, #6-32, Neoprene
102910 (qty 4)
102439 (qty 4)
7 Housing, Display and Controls ENC-1101
Screw, #8-32 x 3/8”, PFH, 100 Deg, SS
Screw, #8-32 x 5/8”, PFH, 100 Deg, SS
102809 (qty 3)
102811 (qty 2)
8 Kit, Control Board CON-3006* Screw, #6-32 x 1/4”, Int Tooth, PPH, SS 102910 (qty 4)
9 Kit, Keypad ENC-3004** Screw, #6-32 x 1/4”, Int Tooth, PPH, SS 102910 (qty 6)
10 Kit, Light Ring (TurboChef) ENC-3005-1 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 4)
11 Kit, Light Ring (SUBWAY®) ENC-3005-2 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 4)
12 Kit, Speaker CON-3003 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
13 USB/Smart Card Reader CON-7005 Screw, #6-32 x 1/4”, Int Tooth, PPH, SS 102910 (qty 4)
14 Window, Display ENC-1191 None None
Not Shown Wire, Display Jumper, 3-Pin i1-9475 None None
Not Shown Harness, Wiring, Low Voltage ENC-1210 None None
* See Service Parts Price List for details.
** ENC-3004 (item 9) includes item 3.
