A-13
ENCORE APPENDIX REPLACING OVEN COMPONENTS

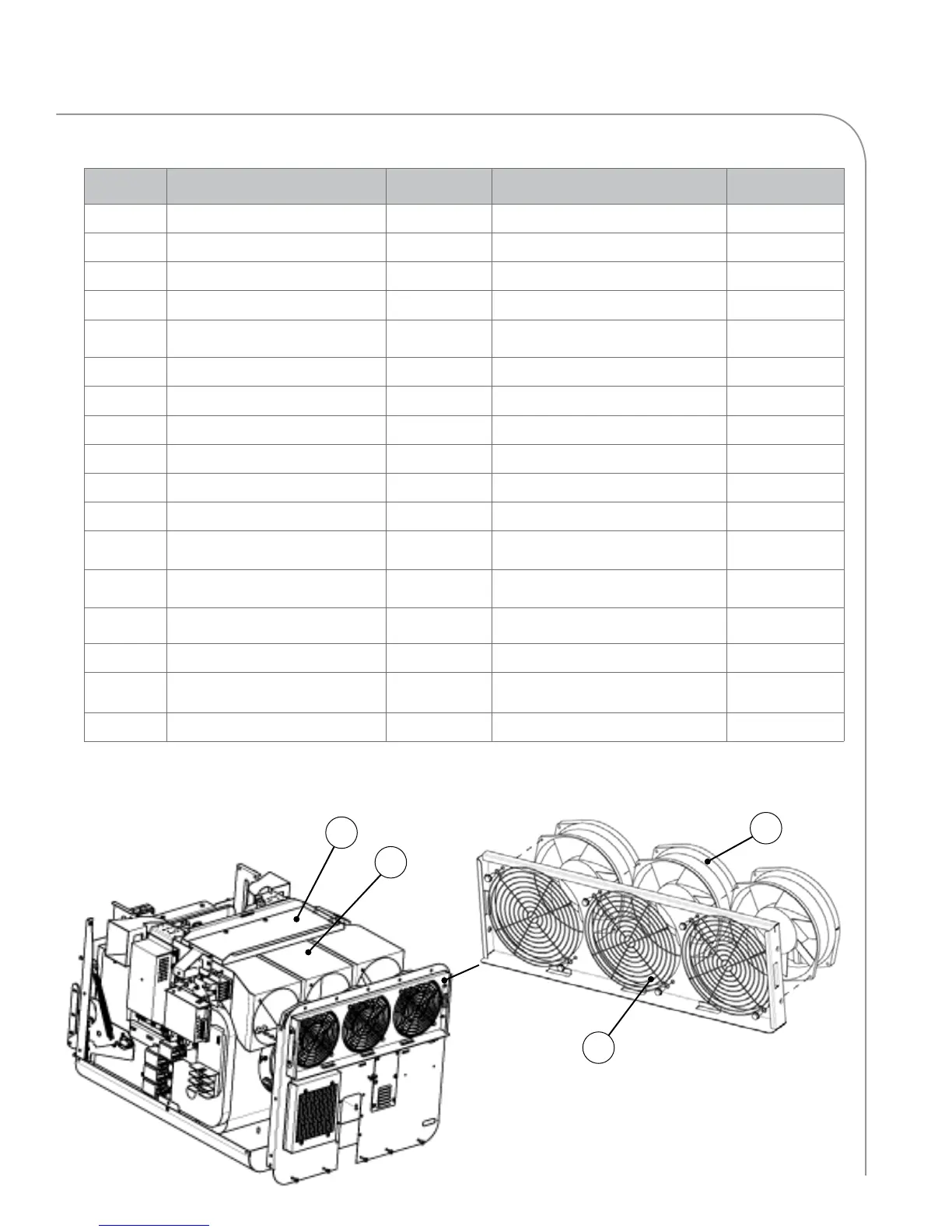

Figure
Reference #
Item Description Item Part Number Fastener Description Fastener Part Number
1 Bracket, Back Wall Support (Bracket Only) ENC-1170 Screw, #8 x 3/8, Ph Mod Truss Hd, Cres 101682 (qty 2)
2 Bracket, Cooling Duct, Center ENC-1096 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
3 Bracket, EMI Mounting ENC-1207 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
4 Bracket, Power Cord ENC-1164 Screw, #8 x 3/8, Ph Mod Truss Hd, Cres 101682 (qty 8)
5 Duct, Cooling, Electrical Compartment ENC-1038 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 5)
6 EMI Filter, 1 Ph 100543 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
7 EMI Filter, 3 Ph 100547 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
8 Fan, Cooling, Electrical Compartment TC3-0433 Screw, #10-32 x 1/2, Hex Wshr Hd, Type 23 101408 (qty 2 each)
9 Finger Guard 100086 Screw, #10-32 x 1/2, Hex Wshr Hd, Type 23 101408 (qty 2 each)
10 Power Cord, 60 Hz, 208-240 VAC, 1 Ph 100187 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 3)
11 Power Cord, 50 Hz, 220-230 VAC, 1 Ph 100195 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 3)
12 Power Cord, 50/60 Hz, 220-230 VAC, 3 Ph 100194
Nut, #10-32, Keps, Ext Tooth, SS
(or provided 90 deg spade terminals)
102963 (qty 4)
13 Power Cord, 50/60 Hz, 380-415 VAC, 3 Ph 103187
Nut, #10-32, Keps, Ext Tooth, SS
(or provided 90 deg spade terminals)
102963 (qty 5)
14 Power Cord, Aus/NZ, Clipsal, 400V, 3Ph 103195
Nut, #10-32, Keps, Ext Tooth, SS
(or provided 90 deg spade terminals)
102963 (qty 5)
15 Power Cord, Japan, 1 Ph NGC-1390 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 3)
16 Power Cord, Japan, 3 Ph NGC-1383
Nut, #10-32, Keps, Ext Tooth, SS
(or provided 90 deg spade terminals)
102963 (qty 4)
17 Strain Relief, Rt Angle 100423 Nut, Mounting, Strain Relief 100424
See pages A-14 and A-15 for more power components.
2
5
8
9
To Next Page
