TurboChef ENCORE Service Manual

A-29

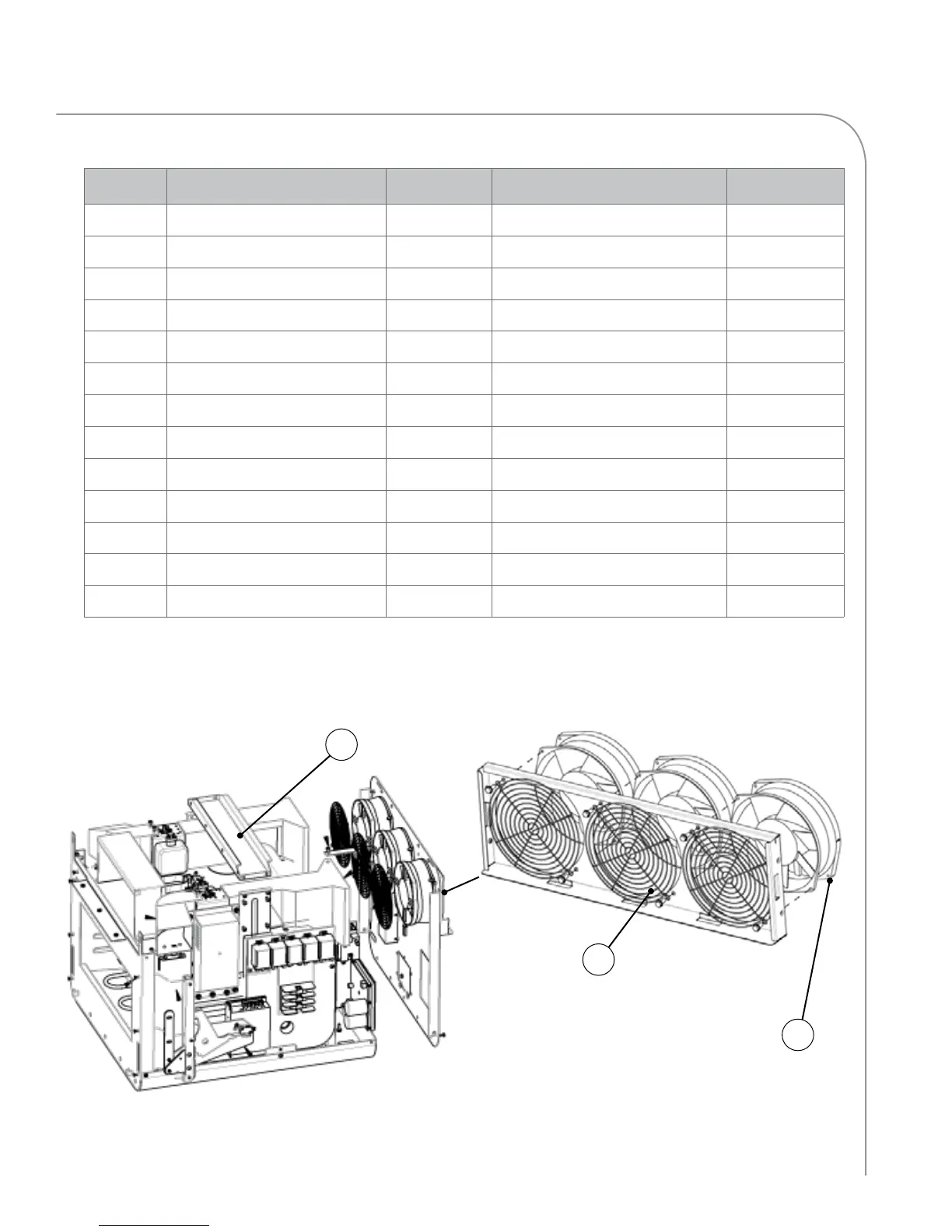

ENCORE 2 APPENDIX  REPLACING OVEN COMPONENTS
Figure
Reference #
Item Description Item Part Number Fastener Description Fastener Part Number
1 Bracket, Back Wall Support (Bracket Only) ENC-1374 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
2 Bracket, Cooling Duct ENC-1206 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
3 Bracket, Power Cord ENC-1388 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 7)
4 EMI Filter, 1 Ph 100543 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
5 Fan, Cooling, Electrical Compartment TC3-0433 Screw, #10-32 x 1/2, Hex Wshr Hd, Type 23 101408 (qty 2 each)
6 Finger Guard 100086 Screw, #10-32 x 1/2, Hex Wshr Hd, Type 23 101408 (qty 2 each)
7 Power Cord, 60 Hz, 208-240 VAC, 1 Ph 100187 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 3)
8 Power Cord, 50 Hz, 220-230 VAC, 1 Ph 100195 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 3)
9 Power Cord, 50/60 Hz, 220-230 VAC, 3 Ph 100194 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 4)
10 Power Cord, 50/60 Hz, 380-415 VAC, 3 Ph 103187 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 5)
11 Power Cord, Aus/NZ, Clipsal, 400V, 3Ph 103195 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 5)
12 Power Cord, Japan, 1 Ph NGC-1390 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 3)
13 Power Cord, Japan, 3 Ph NGC-1383 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 4)
See Page A-30 and A-31 for more power components.
2
5
6

TurboChef ENCORE Specifications

General

Model	ENCORE
Control Type	Touchscreen
Ventilation	Ventless
Exterior Finish	Stainless Steel
Wattage	3600 W
Category	Oven
Cooking Technology	Microwave
Power Requirements	208-240V, 60Hz
Cavity Volume	1.0 cu ft
Temperature Range	500°F
