A-5
ENCORE APPENDIX REPLACING OVEN COMPONENTS
Figure
Reference #
Item Description Item Part Number Fastener Description Fastener Part Number
1 Blower Motor NGC-1025 Nut, 1/4 - 20, Serr Hex Flange, Plated 100906 (qty 6)
2 Blower Motor Speed Controller CON-3010 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 1)
3 Bracket, BMSC HHB-8268 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
4 Bracket, Catalytic Converter (qty 2) ENC-1148 Screw, #8 x 3/8, Ph Mod Truss Hd, Cres 101682 (1 per)
5 Bracket, Solid State Relay ENC-1102 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
6 Catalytic Converter ENC-1147 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
7 Clip, BMSC Bracket (x2) HHB-8269 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2 each)
8 Gasket, Heater, Top NGC-1043 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 10)
9 Heater, Bottom ENC-3002
Retaining Ring, .750” ID, SS, Series SH
Washer, Shim, .752” x 1.12” x .033”
101312 (qty 2)
102449 (qty 2)
10 Heater, Top NGC-3011 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 10)
11 Jetplate, Bottom ENC-1066 None None
12 Relay, Solid State (K4/K5 - Heaters) 101286 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
13 RTD, Cook Cavity, 3” (x2) HHC-6517-2 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2 / heater)
14 Thermostat, High-Limit, 300°C 102075 Screw, M4 x 0.7 x 8, PPHD, Int Tooth, SS 101672 (qty 2)

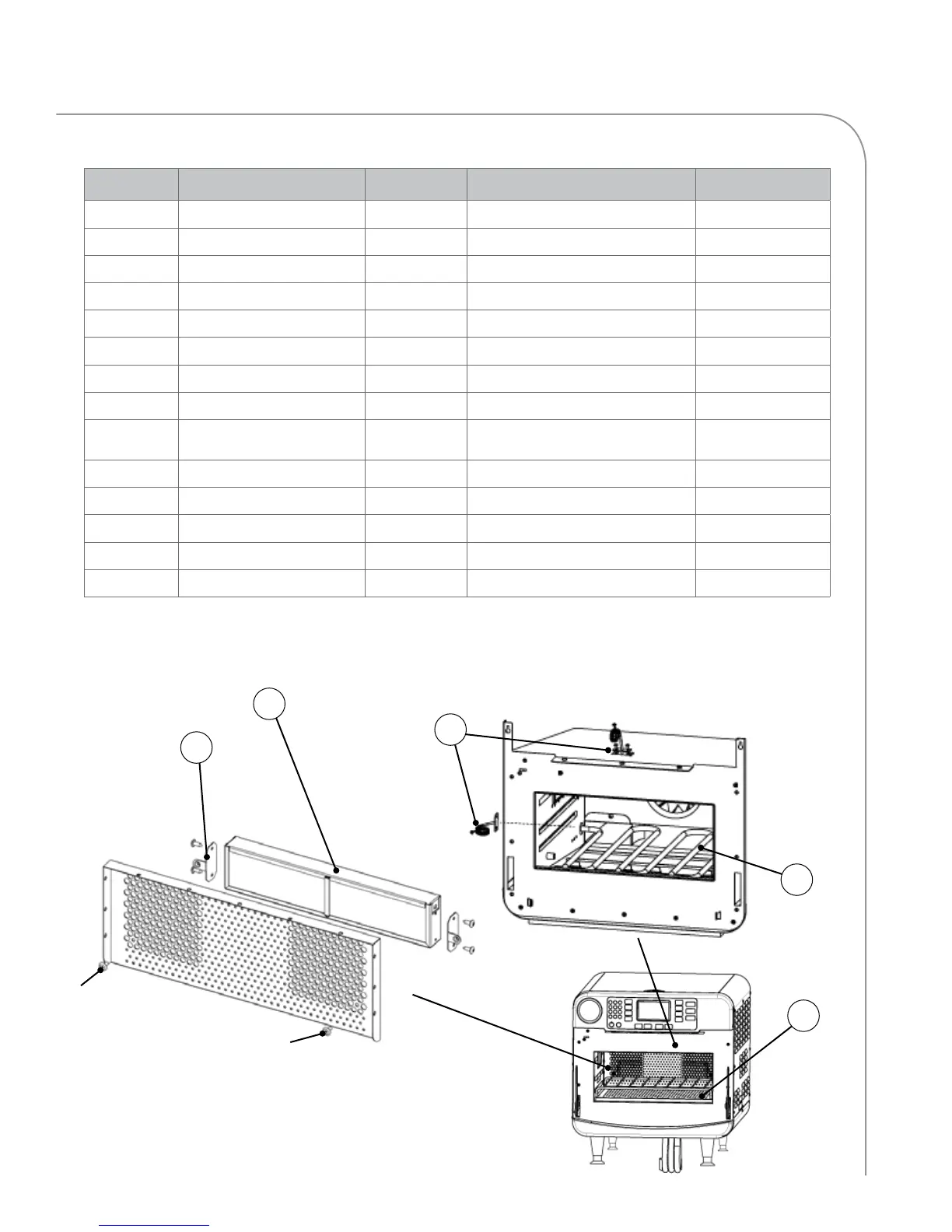

To remove the catalytic converter:
1. Ensure the oven cavity is completely cool.
2. Remove the screws marked “A” and the catalytic converter
will drop beneath the holder.
3. Maneuver the catalytic converter beneath the bottom heater.
4. Lift the bottom heater and remove the catalytic converter.
4
11
6
13
9
A
A
To Next Page
