TurboChef ENCORE Service Manual

A-7

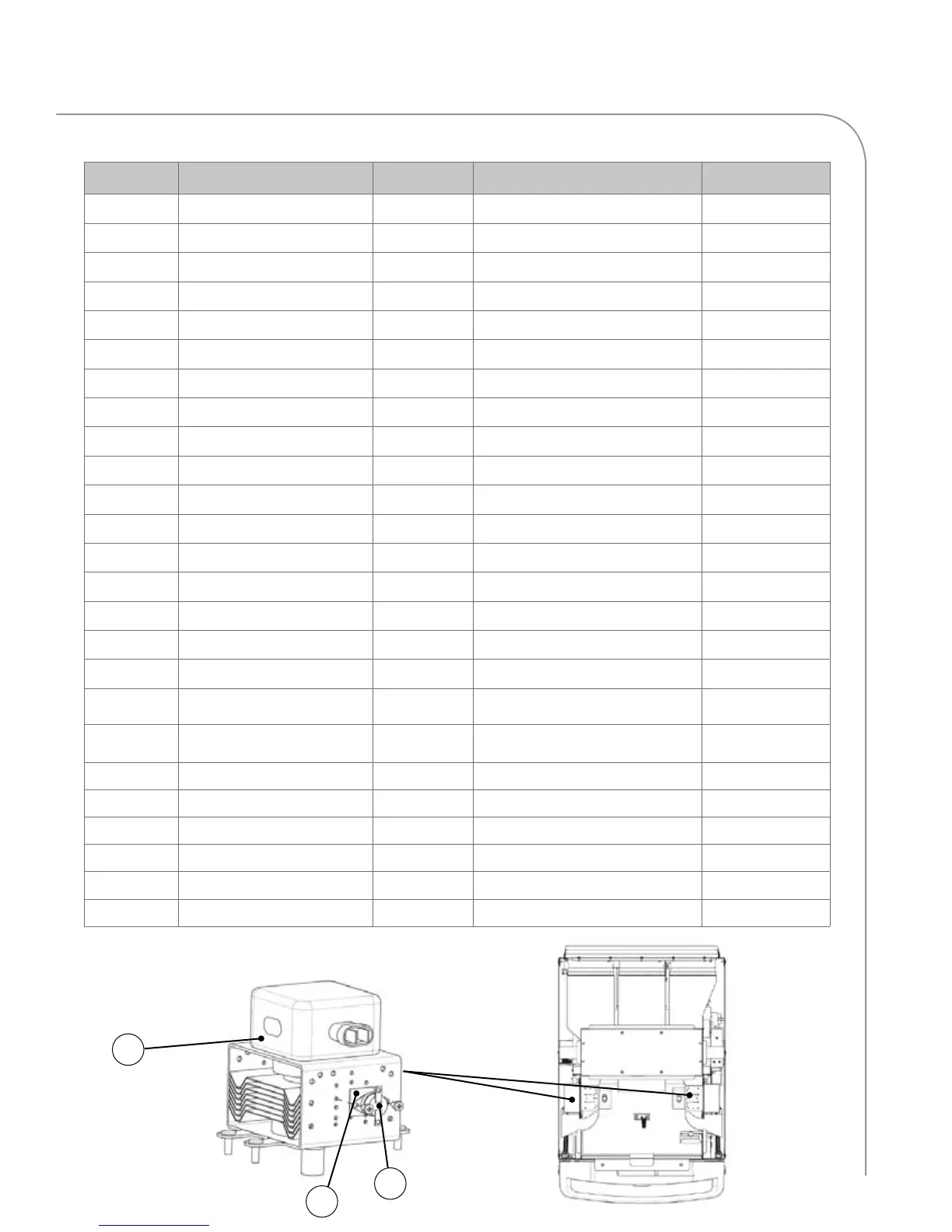

ENCORE APPENDIX  REPLACING OVEN COMPONENTS
Figure
Reference #
Item Description Item Part Number Fastener Description Fastener Part Number
1 Bracket, Capacitor (x2) 100134 Screw, #6-32 x 3/8, Int Tooth, PPH, SS 102911 (qty 1 each)
2 Bracket, HV Components, Right ENC-1161 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 2)
3 Bracket, HV Components, Left ENC-1167 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 2)
4 Capacitor, .91 uf, 2500 VAC (x2) 100232 Bracket, Capacitor See Item 1
5 Diode, High Voltage (x2) 100481 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2 each)
6 Duct, Cooling, Magnetron, Out (x2) ENC-1036 None None
7 Duct, Cooling Fan, Left ENC-1037 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
8 Duct, Cooling Fan, Right ENC-1033 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 6)
9 Fan, Cooling, Magnetron (x2) TC3-0433 Screw, #10-32 x 1/2, Hex Wshr Hd, Type 23 101408 (qty 2 each)
10 Finger Guard, Cooling Fans (x2) 100086 Screw, #10-32 x 1/2, Hex Wshr Hd, Type 23 101408 (qty 2 each)
Not Shown Jumper, Capacitor (Intl only) (x2) i5-9378 None None
11 Magnetron (x2) NGC-3015 Nut, #10-32, Serr Hex Flange, Zinc 100913 (qty 4 each)
12 Pad, Insulator, Mag Thermostat (x2) NGC-1163 Screw, #6 x 3/8, PPHD, Drill Point, Zinc 101684 (qty 2 each)
See page A14 Relay (K1 - Filament) 101273 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 2)
See page A14 Relay (K2 - Anode) 101273 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 2)
See page A14 Relay (K7 - Magnetron Cooling Fan) 101274 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 2)
13 Thermostat, Magnetron (x2) 104228 Screw, #6 x 3/8, PPHD, Drill Point, Zinc 101684 (qty 2 each)
14
Transformer, Filament, 60 Hz (x2)
Transformer, Filament, 50 Hz (x2)
NGC-3061-1
NGC-3061-2
Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4 each)
15
Transformer, HV, 60 Hz (x2)
Transformer, HV, 50 Hz (x2)
NGC-3062-1
NGC-3062-2
Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4 each)
16 Waveguide Kit (x2)* ENC-3008 Included Included
17 Waveguide Cover (x2) i1-9462 None None
18 Waveguide Gasket (x2)* i1-9331 Nut, #10-32, Serr Hex Flange, Zinc 100913 (qty 9 each)
19 Waveguide Seal (x2)* i1-9486 None None
Not Shown Harness, Wiring, HV, MW Circuit 1 ENC-1208-1 None None
Not Shown Harness, Wiring, HV, MW Circuit 2 ENC-1208-2 None None
* Items 17-19 are also included with item 16.
11
12
13
