A-9

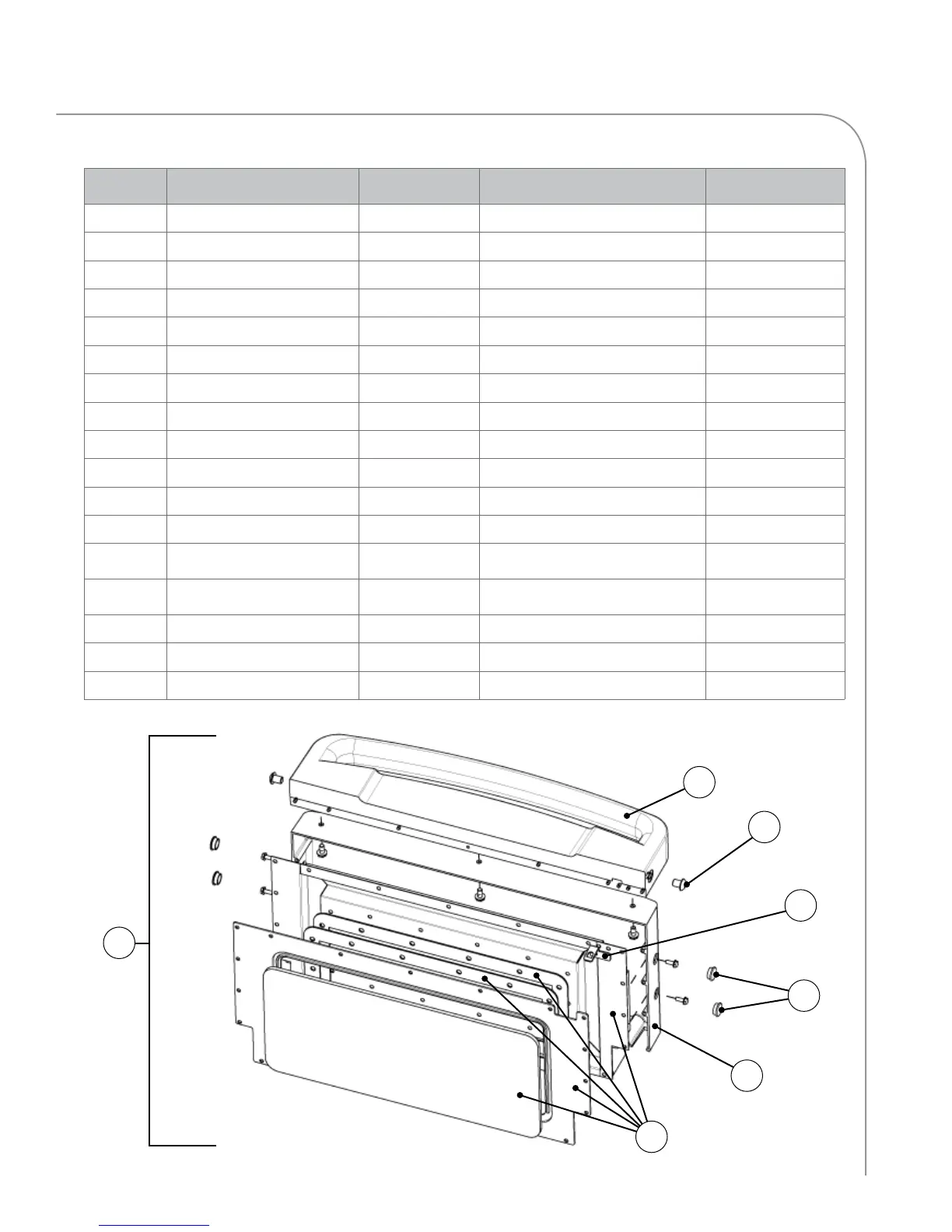

ENCORE APPENDIX  REPLACING OVEN COMPONENTS

Figure

Reference #

Item Description Item Part Number Fastener Description Fastener Part Number

See page A2 Badge, Logo, Encore/Encore 2 ENC-1192 Nut, Push, 1/8 101293 (qty 2)

1 Catch, Latch ENC-1131 Screw, #8 x 3/8, Security, Torx Hd 102748 (qty 2)

2 Cover, Door, Gray ENC-1121-T001 Screw, #8 x 5/8, Ph Mod Truss Hd, Cres 101376 (qty 11)

3 Door, Entire Assembly ENC-3003 Screw, #10-32 x 1/2, Hex, Serr, Zinc 101373 (qty 4)

4 Handle, Door, Black ENC-1122-9005 Screw, #8 x 5/8, Ph Mod Truss Hd, Cres 101376 (qty 7)

5 Hinge, Left i1-3220-1 Screw, #8-32 x 5/8, PFH, 100 Deg, SS 102811 (qty 3)

6 Hinge, Right i1-3220-2 Screw, #8-32 x 5/8, PFH, 100 Deg, SS 102811 (qty 3)

7 Hole Plug, Black, 5/8” Dia (x4) 101195 None None

8 Interlock Switch (Monitor) 102013 Screw, #4-40 x 3/4, Sems, PPHD, SS 102904 (qty 2)

9 Interlock Switch (Secondary) 102013 Screw, #4-40 x 3/4, Sems, PPHD, SS 102904 (qty 2)

10 Kit, Door Switch, Primary* NGC-3033* Included with Kit Included with Kit

11 Kit, Shunt Plate ENC-3007 Included with Kit Included with Kit

Kit, Switch Offset, Shim and

Replacement Tab (x2)

i1-3207 Screw, #4-40 x 3/4, Sems, PPHD, SS 102904 (qty 2)

13 Plate, Door Switch, S/M (x2) NGC-1126

Screw, #4-40 x 3/4, Sems, PPHD, SS

Screw, #8-32 x 3/8, PPHD, Int Sems, SS

102904 (qty 2 each)

102921 (qty 1 each)

See page A14 Relay (K3 - Monitor) 101273 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 2)

14 Screw, Door, Buttonhead (x2) ENC-1220 None None

15 Stop, Paddle, Door Switch, S/M (x2) NGC-1324 Screw, #4-40 x 3/4, Sems, PPHD, SS 102904 (qty 2 each)
