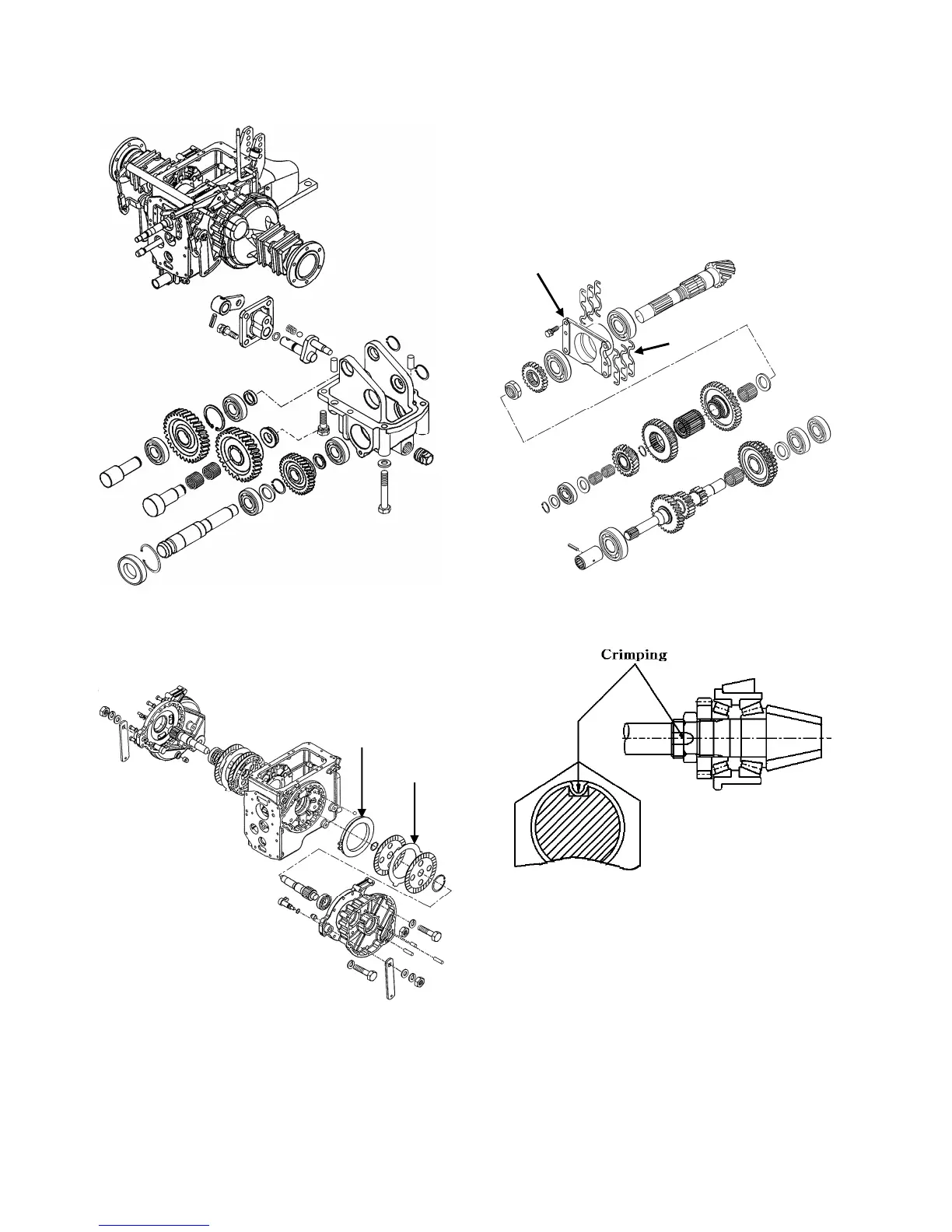

a. Disconnect Mid PTO case by loosening bolts
as shown in Fig.5-25
Fig. 5-25 MID PTO Case
f. Pull out diff pinion shaft(18) and take out dif-
pinions(17) and dif-side gears(15).
g. Remove the pinion metal(support) tightening
bolts and take put drive pinion and related
parts as an assembly.The number of installed
shims should be written down or memorized
for later reference.
Pinion metal
shim
h. Release the lock of nut and remove the nut
Fig.5-27
b. Disconnect Case Brake LH and Case Brake
RH by loosening bolts as shown in Fig.
Fig. 5-26
c. Remove metal brake and plate brake as a set
d. Remove ring gear(2) as a set.
e.When disassembling the ring gear set further,
remove bearing(22) with a puller.
Metal brake
plate brake
h. Release the lock of nut and remove the nut
i.Push out drive pinion(2) from drive pinion
metal on a press.
j.Remove the bearing from the drive pinion with
a special tool.
5-17
Fig.5-28
