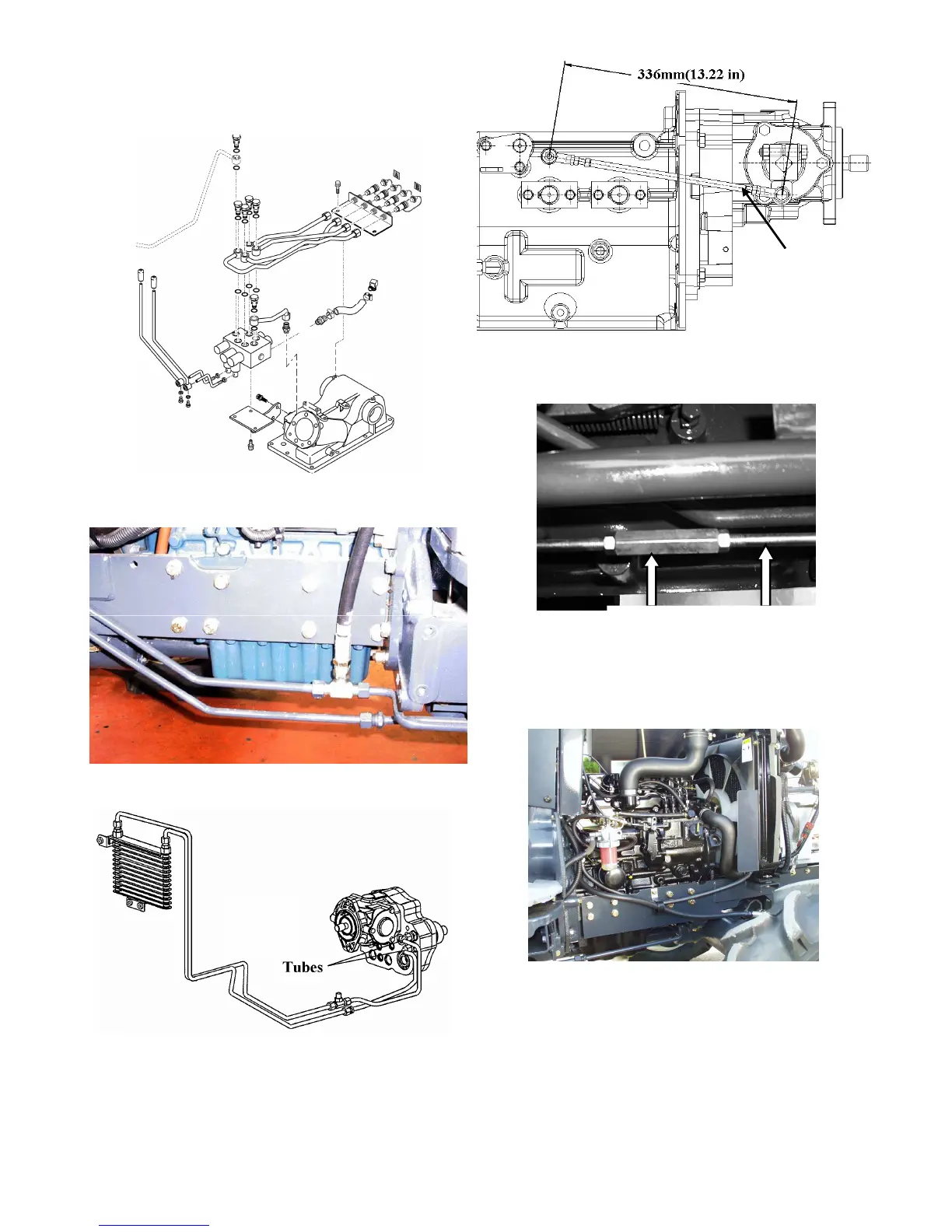

10. Install hydraulic supply tube to tractor.
Connect hydraulic supply tube to SCV.
Tighten tube nut to 55-79N.m(40-59lb-ft).
11.Connect hydraulic pressure tube at lower
Left side of Transmission
14.Connect lower brakes rods to rear brake
levers.Retain with turn buckle and nuts.
Rod
12.Install hydraulic pressure tube clamp
13. Install brake rods to brake bell cranks.
Retain with specified length
15.Route wiring harness through cable clips.
Locate and connect all electrical connectors
attaching wiring harness to switches and
lights on rear half of tractor.
16.Install SCV tube support bracket and tubes
as an assembly.Install two cap screws and
two spacers to attach tube support bracket to
frame.
17.Raise RH rear of tractor and support on
suitable stands.Remove RH rear wheel and
tire.
