u-blox ZED-F9P Integration Manual

ZED-F9P-Integration Manual
UBX-18010802 - R02

5 Hardware description Page 71 of 114
Advance Information

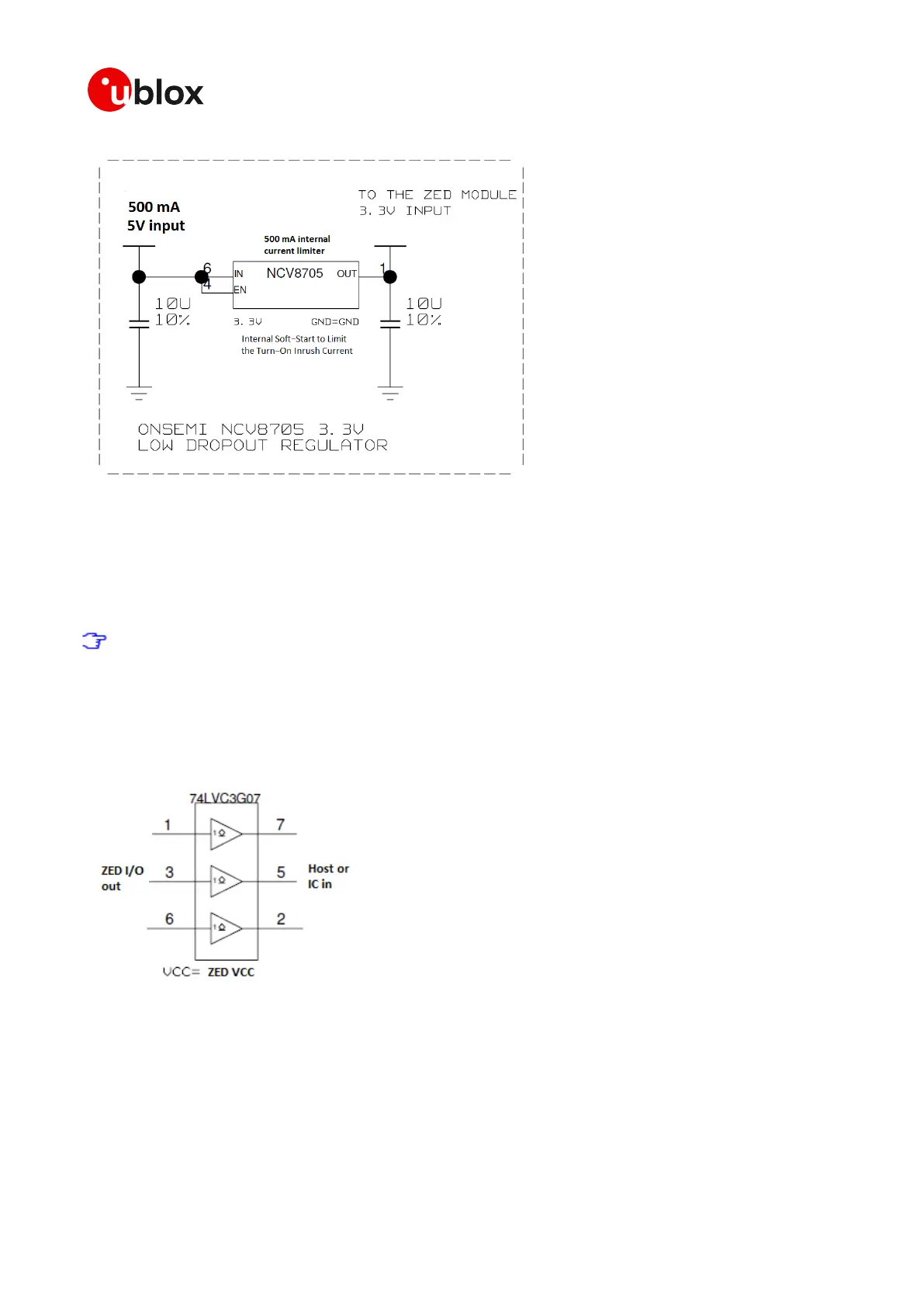

Figure 44: ZED-F9P power supply
5.3 Interfaces
A number of interfaces are available in the ZED-F9P high precision receiver (UART, DDC or SPI), but
not all are supported by the default firmware for data communication. See the ZED-F9P Interface
Description [2] for a description of the interface protocols supported.
It is important to isolate all receiver I/O when VCC is not applied. This is also the case if
V_BCKP is used. The receiver I/O should be allowed to float or connected to a high impedance
if VCC is not applied.
It is advised to use the module VCC for any pull up, level translation or buffer circuits to ensure
compatibility with the module I/O levels and required states.
Figure 45: ZED-F9P I/O output isolation

u-blox ZED-F9P Specifications

General

GNSS	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Concurrent GNSS	4
RTK	Yes
Velocity Accuracy	0.05 m/s
Time Pulse Accuracy	30 ns
Operating Temperature	-40°C to +85°C
Supply Voltage	2.7 V to 3.6 V
Channels	184
Frequency Bands	L1, L2
Dimensions	22 mm x 17 mm x 2.4 mm
Interfaces	UART, SPI, I2C
