ZED-F9P-Integration Manual

UBX-18010802 - R02



8 Design Page 97 of 114

Advance Information

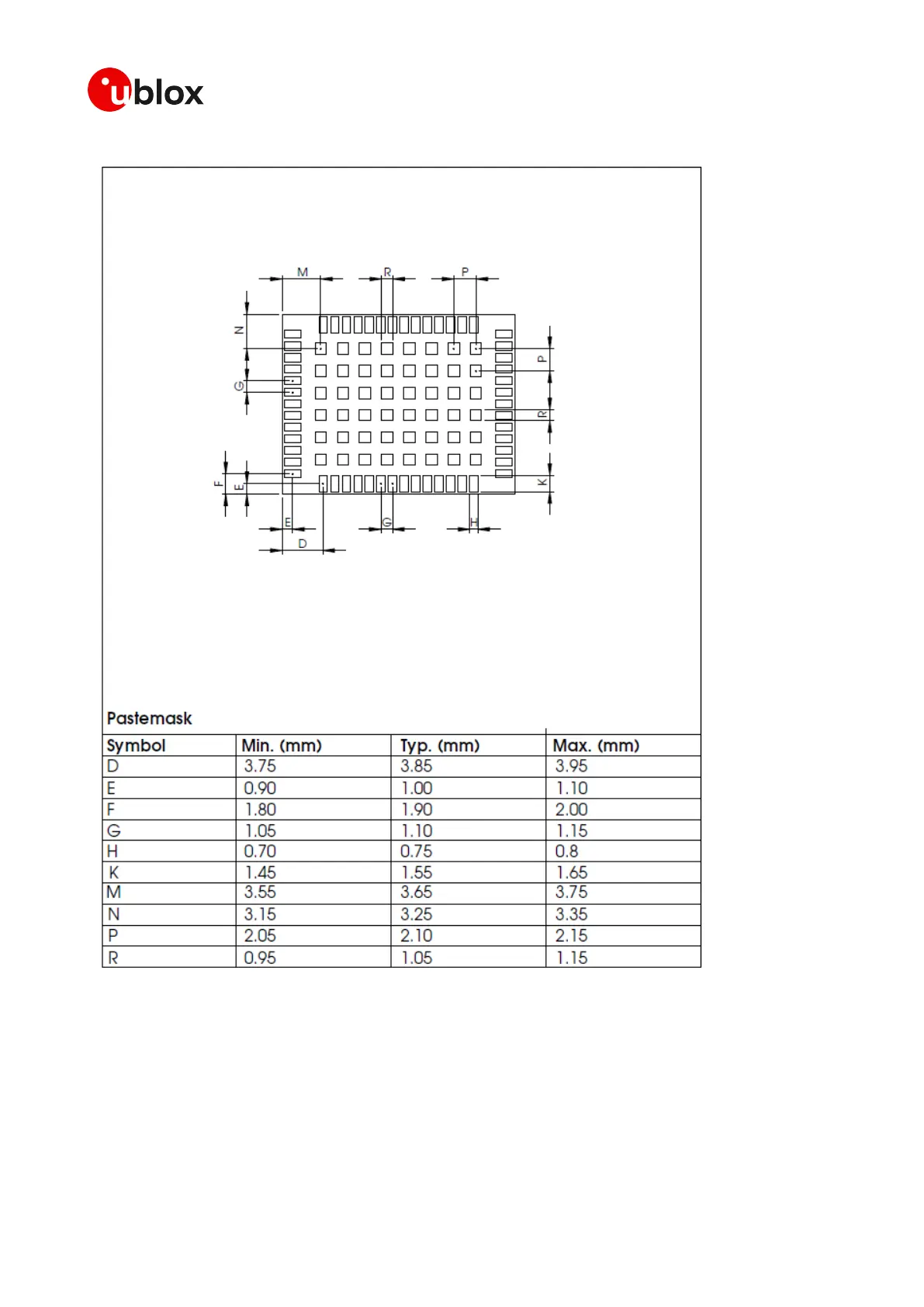

Figure 71: ZED-F9P LGA Paste mask dimensions

8.8 Layout guidance

Presented layout guidance reduces the risk of performance issues at design level with the ZED-F9P

high precision receiver.

8.8.1 RF In trace

The RF In trace has to work in the combined GNSS L1 + L2 signal band.
