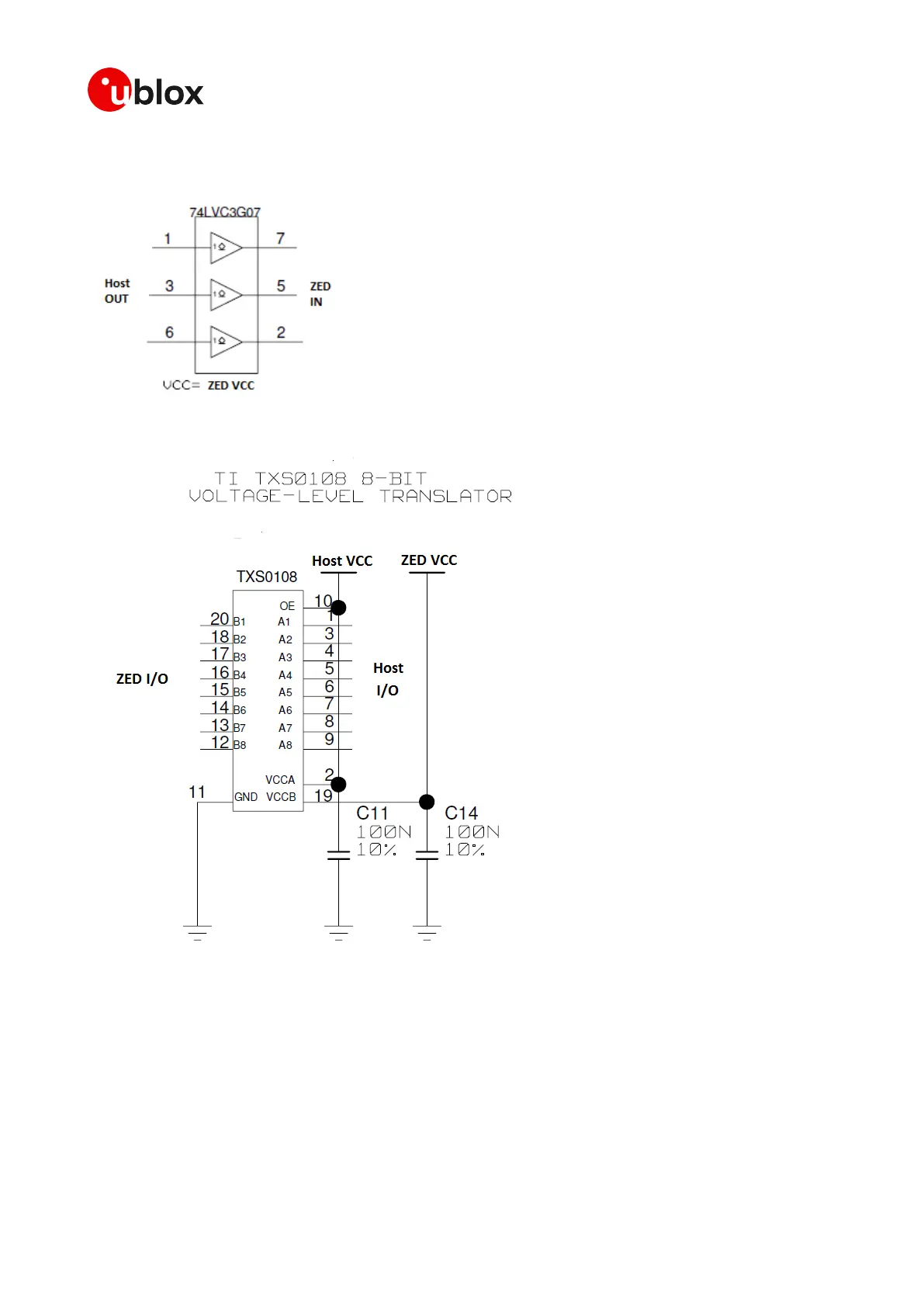

Figure 46: ZED-F9P I/O input isolation
Figure 47: ZED-F9P I/O level translation
5.3.1 UART interfaces
UART1
The ZED-F9P high precision receiver uses a UART interface, which can be used for communication
with a host. It supports configurable baud rates.
UART2
UART2 is intended to convey correction messages to the module and will only accept RTCM and
NMEA protocols and should not be used as a primary host connection.

u-blox ZED-F9P Specifications

General

GNSS	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Concurrent GNSS	4
RTK	Yes
Velocity Accuracy	0.05 m/s
Time Pulse Accuracy	30 ns
Operating Temperature	-40°C to +85°C
Supply Voltage	2.7 V to 3.6 V
Channels	184
Frequency Bands	L1, L2
Dimensions	22 mm x 17 mm x 2.4 mm
Interfaces	UART, SPI, I2C
