u-blox ZED-F9P Integration Manual

ZED-F9P-Integration Manual
UBX-18010802 - R02

8 Design Page 91 of 114
Advance Information

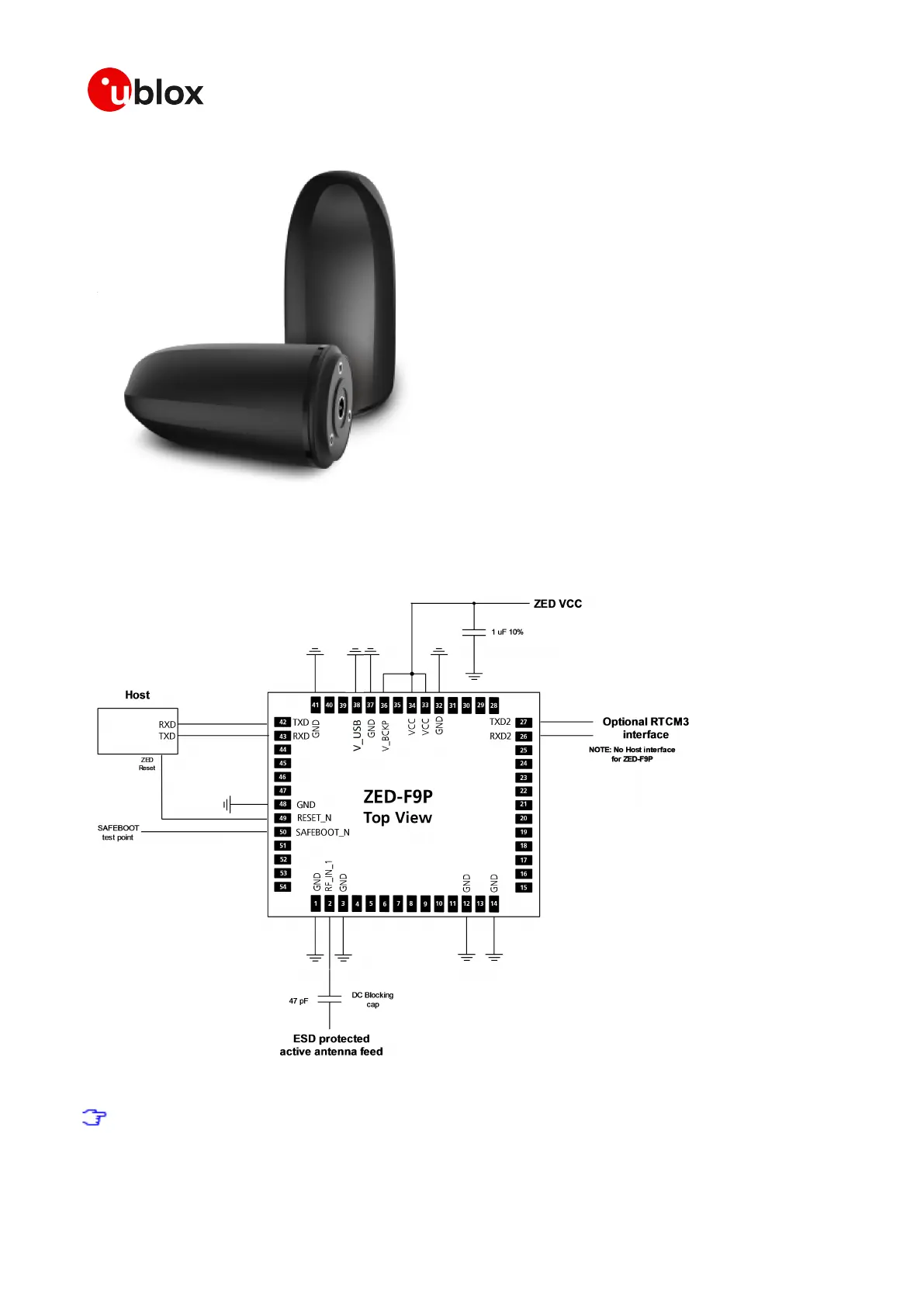

Figure 64: Harxon helix active L1/L2 antenna
8.5 ZED-F9P minimal design
The minimal electrical circuit for ZED-F9P operation using the UART1 interface is shown below
Figure 65: Minimal ZED-F9P design
The LGA center ground pads under the module must be soldered and connected to ground.

u-blox ZED-F9P Specifications

General

GNSS	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Concurrent GNSS	4
RTK	Yes
Velocity Accuracy	0.05 m/s
Time Pulse Accuracy	30 ns
Operating Temperature	-40°C to +85°C
Supply Voltage	2.7 V to 3.6 V
Channels	184
Frequency Bands	L1, L2
Dimensions	22 mm x 17 mm x 2.4 mm
Interfaces	UART, SPI, I2C
