u-blox ZED-F9P Integration Manual

ZED-F9P-Integration Manual
UBX-18010802 - R02

8 Design Page 88 of 114
Advance Information
The absolute best performance will be obtained with the antenna in the center of the roof and not
tilted at any large angle. However the placement of automotive antenna in a mass production vehicle
will probably be compromised.
The antenna cannot be placed under a dashboard, in a rear view mirror or on the rear parcel shelf. It
needs to have very good signal levels and the wide as possible view of the sky.
Low cost L1 + L2 stacked patch antenna must have a minimum band pass performance from their
patch elements and the required internal SAW filtering. An example of the actual measured Band
pass characteristics of a low cost L1 + L2 antenna is shown below.

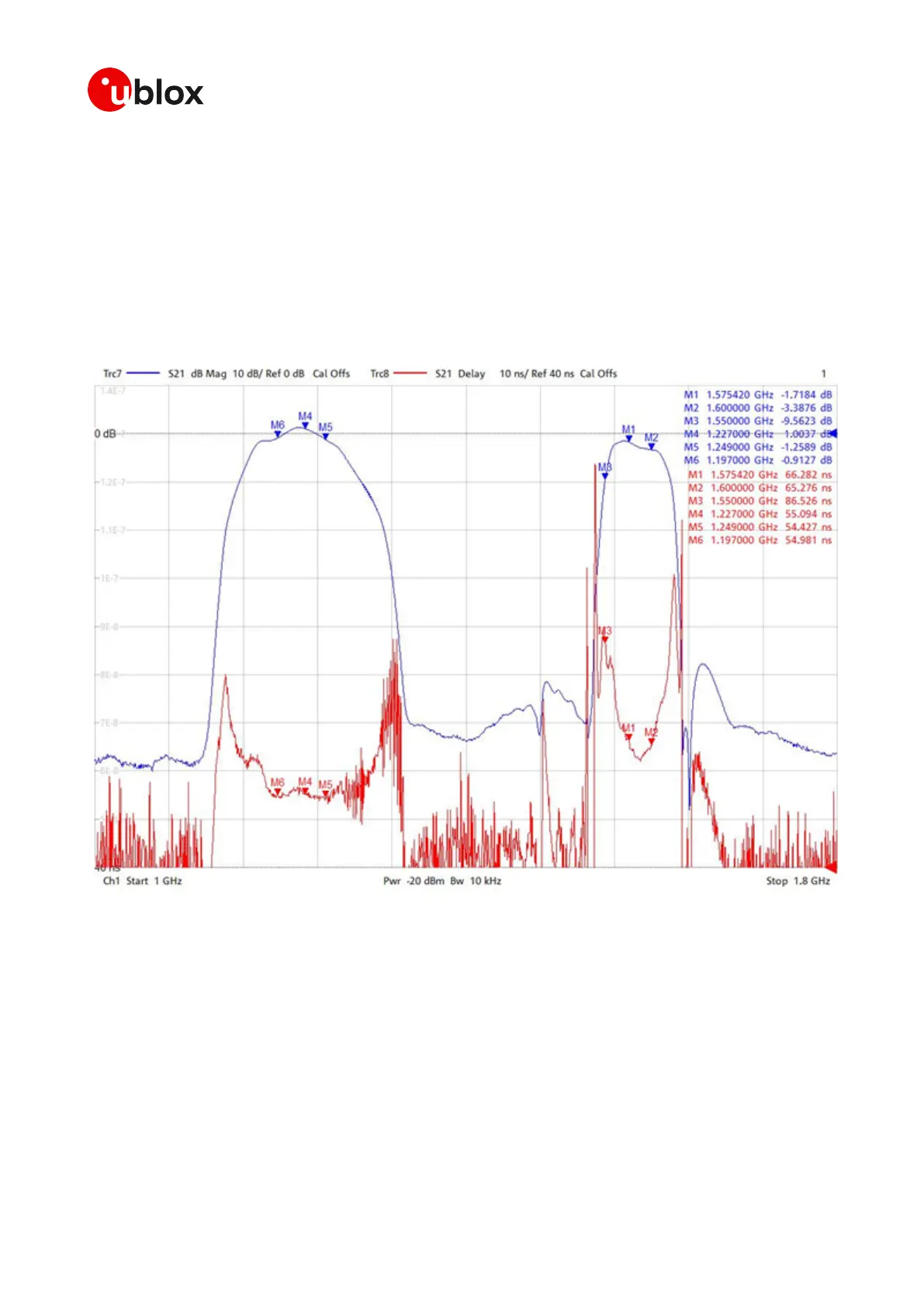

Figure 58: Low cost L1/L2 antenna Band characteristics

u-blox ZED-F9P Specifications

General

GNSS	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Concurrent GNSS	4
RTK	Yes
Velocity Accuracy	0.05 m/s
Time Pulse Accuracy	30 ns
Operating Temperature	-40°C to +85°C
Supply Voltage	2.7 V to 3.6 V
Channels	184
Frequency Bands	L1, L2
Dimensions	22 mm x 17 mm x 2.4 mm
Interfaces	UART, SPI, I2C
