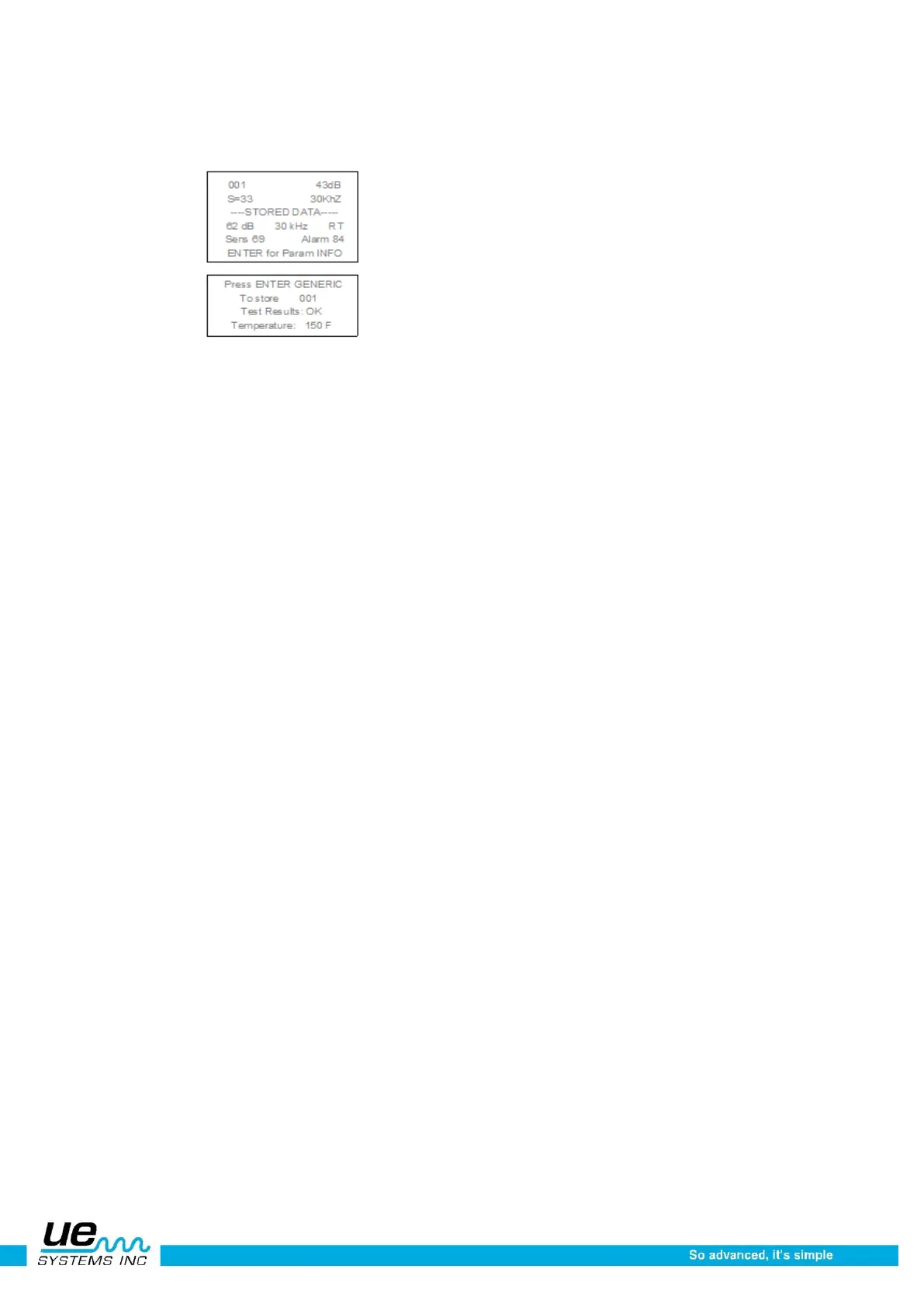

Additional information can be viewed by clicking the Sensitivity Control Dial until the ENTER For
blinks. Spin to MORE and press the Yellow Enter Button to enter. There you will see the following in-
formation represented as an example below:
DATE: 01/01/03
TIME 08:30:43
Module Type: SCM
Offset: 00 dB
Press ENTER to Store
Press Sens. to Exit
Entering text using text editor
1. There is space to enter 16 characters of alpha-numeric text.
2. To enter text, the Text Edit feature must be set to ON (refer to SET UP MODE 08). If text is ON,
click the Sensitivity Control Dial to the bottom of the Display Panel until Press ENTER For is
blinking. Spin to Edit Text and press Enter.
3. The text icon will blink. If the field has no entry, the screen will be blank.
4. The Sensitivity Control Dial can be used to scroll through the alphabet, A-Z , a space character
and then through numbers 0-9
5. Move back through numbers (9-0) and then back down the alphabet (Z-A).33
6. Spin the Sensitivity Dial clockwise to move up through numbers and then through the
7. Alphabet starting with A or spin counter clockwise to move back through numbers (9-0) and then
back down the alphabet (Z-A).
8. To enter a character, spin the Sensitivity Control Dial to the desired character and then click to
move the cursor to the next of 16 positions.
9. Continue until through or until all 16 fields are filled.
10. If an error in recording a letter or number occurs, click the Sensitivity Control Dial and the cursor
will move to the right. Continue clicking the Sensitivity Dial and the cursor will “wrap” around to
the right until the desired location is reached. As explained above, spin the
11. Sensitivity Dial until the corrected entry is displayed and “click” the Sensitivity Control Dial to
enter the text character. When the text is correct, click the Yellow Enter Button to save and store
the text. The instrument will return to the Operation Mode.
