Electrical

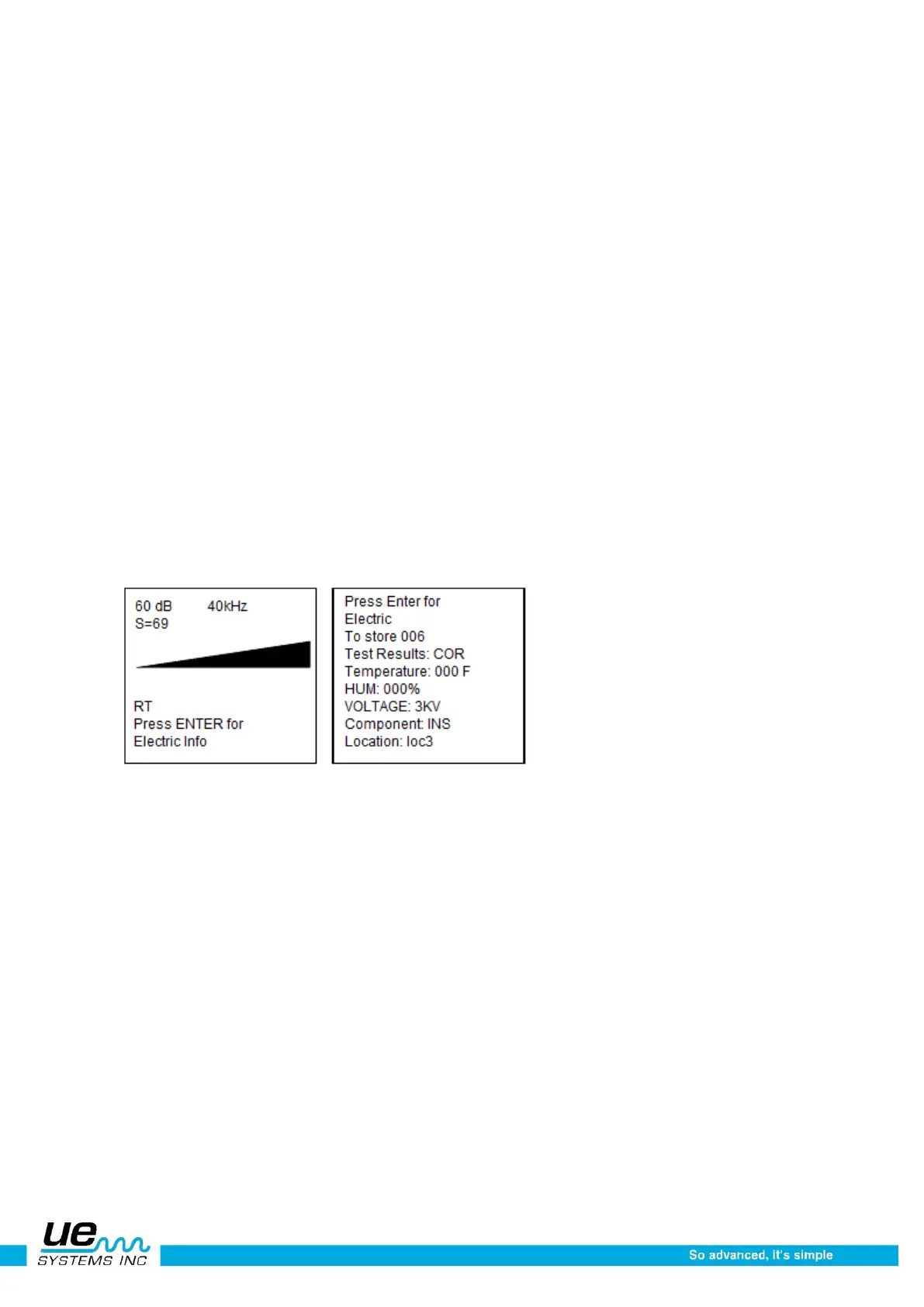

1. To view Electrical Info, click the Sensitivity Dial until the cursor moves to the bottom of the Display
Panel until “Press ENTER For” is blinking. Spin to Electric Info and press Enter.
2. To enter a test condition:
3. Spin to Test Results: the condition default is COR and will blink slowly. If it is necessary to change:
4. Click with the Sensitivity Dial and the condition (COR) will blink rapidly.
5. Spin to select a condition indication. The choices are; COR, TRK, ARC, PD, MEC (Mechanical
looseness)
6. To Set, Click the Sensitivity Dial (the condition will blink slowly)
7. Spin to Temperature should a Temperature entry be desired
8. Click on the Temperature setting (it will blink rapidly) Spin to the left to select a “100” reading (ex
200, 300) and to the Right to select a “tens” reading (ex: 50)
9. Click to set
10. Spin to Humidity
11. Click to enter
12. Spin to VOLTAGE
13. Click to enter and spin to the desired Voltage
14. Click to set
15. Spin to Component
16. Click to enter
17. Spin to desired Location18. Click to set
19. Spin to desired Location
20. Click to set
21. Press Enter to store the information and Spin and click to exit.
If Parameter Info has been selected in the Storage Display function, the identical data
and data entry as described above will be shown. Additional information such as date, time, module
used and a command for data storage will be shown in the MORE function.
Field entry list for electrical
TEST RESULTS: COR/TRK/ARC/PD/MEC VOLTAGE: 120V-750 KV
COMPONENT: INS/SGR/TFR/BSR/TER/DCT LOCATION: Loc0 to Loc9
Steam
1. To view Steam Info, click the Sensitivity Control Dial to move the cursor to the bottom of the Dis-
play Panel until “Press ENTER For” is blinking. Spin to Steam Info and press Enter.
2. To enter a test condition:
3. Spin to Test: the condition default is OK and it will blink slowly. If it is necessary to change:
4. Click with the Sensitivity Control Dial and the condition (OK) will blink rapidly.
5. Spin to select a condition indication. The choices are; OK, LEK/BLW/NIS/PLG/SIZ/OTH
6. To Set, Click the Sensitivity Control Dial (the condition will blink slowly)
7. Spin to Temperature In
8. Click on the Temperature setting (it will blink rapidly) Spin to the left to select a Click on the Tem-
perature setting (it will blink rapidly) Spin to the left to select a v. “100” reading (ex 200, 300) and to
the Right to select a “tens reading (ex: 50)
9. Click to set
To Next Page
