UNI-T UTD1000L Series User Manual



AC Current Measurement
Resistance Measurement
Diode Test
Continuity Test
Capacitance Measurement
4. Relative Measurement
5. working statusIndicator; HOLD : Freeze the display
6. Main Display for Measuring Values
7. Manual Ranging Indicator
5.4 Making Multimeter Measurements
Press DSO/ DMM button to access DMM mode, the display then enters into the multimeter interface.
Multimeter functions are ready to use at the moment.
5.4.1 Measuring Resistance
To measure resistance, do the following:
1. Press down R button to set measurement type to Resistance.
2. Plug test lead connectors into multimeter input terminals (Black to COM and Red to V/Ω).
3. Connect test leads respectively to the resistor under test, then take resistance readings.

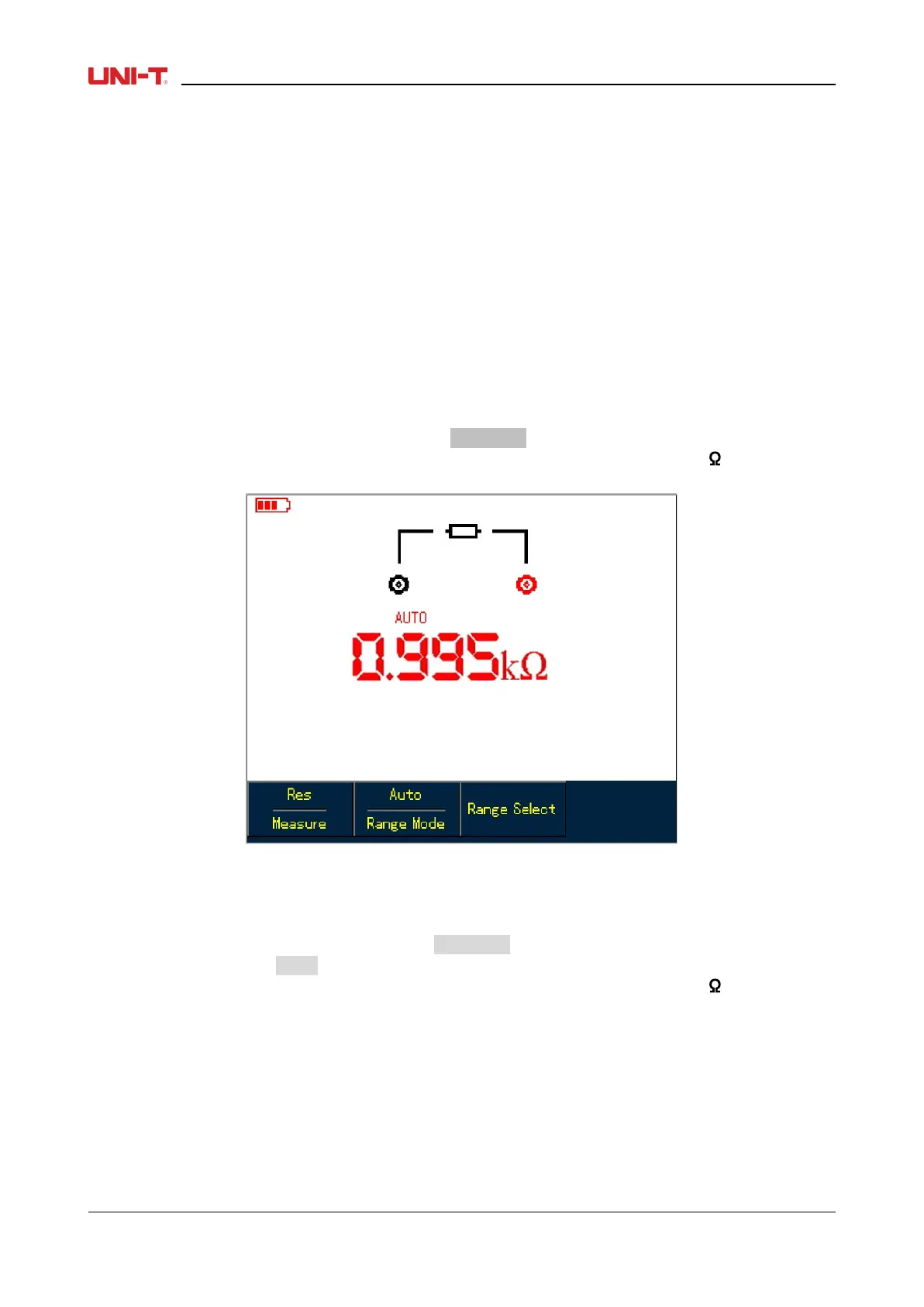

Figure 5-1 Measuring Resistance
5.4.2 Testing Diodes
To test the diode, do the following:
1. Press R button to set the measurement type to Resistance.
2. PressF1 button to select Diode option.
3. Plug test lead connectors into multimeter input terminals (Black to COM and Red to V/Ω).
4. Connect test leads to the tested diode, then forward voltage drop reading for the diode displays,
accompanied by the measurement unit V.
30 UTD1000L User Manual
