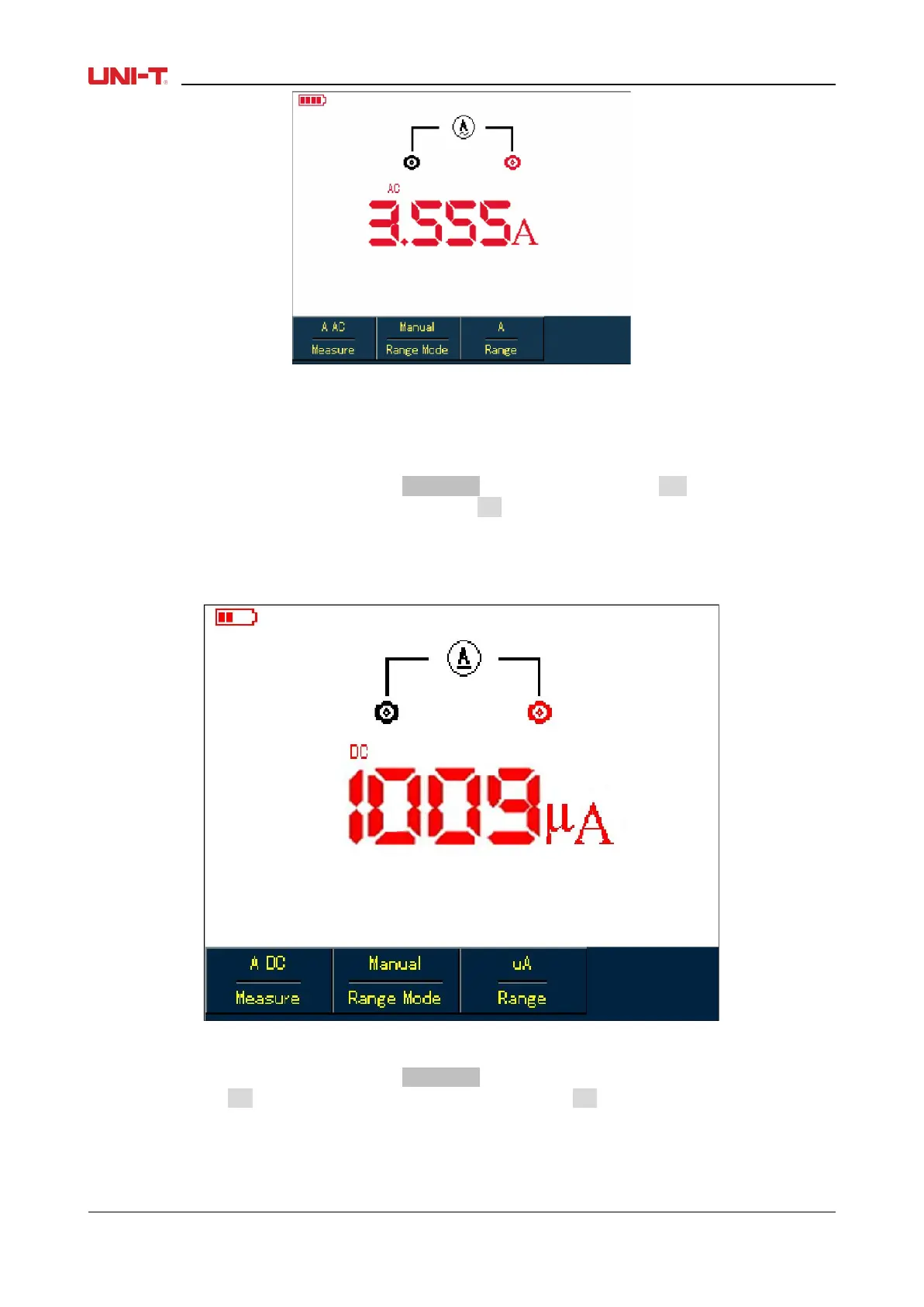

Figure 5-12 Measuring AC Current Greater Than 400mA
5.4.9 Measuring DC Current with UTD1000DL
To measure DC current equal to or lower than 1mA, do the following:
1. Press I button to set measurement type to DC Current, the measurement unit isμA, you can use F3 to
toggle betweenμA, mA and A ranges, the default is mA
2. Plug mA current module (UT-M10) into input terminals COM and V/Ω, then turn the switch on the
module to uA range.
3. Insert black and red test leads correspondingly into Black and Red terminals on the module
4. Then connect test leads to tested points, than take the DC current reading.
Figure 5-13 Measuring DC Current Equal to or Lower than 1mA
To measure DC current within 1mA-40mA, do the following:
1. Press I button to set measurement type to DC Current.
2. Press F3 to select mA range, the measurement unit will change intomA accordingly.
3. Plug mA current module (UT-M10) into input terminalsCOM and V/Ω, then turn the switch on the
module to 40mA range.
4. Insert black and red test leads correspondingly into Black and Red terminals on the module.
5. Then connect test leads to tested points, than take the DC current reading.
36 UTD1000L User Manual
