Figure 5-20 Measuring AC Current Greater than 400mA
5.5 Data Hold
You can freeze the displayed readings any time as you want.
1. Press RUN /STOP to freeze measuring values, and HOLD icon blinks on the display
2. Repress RUN /STOP to restore the measurement

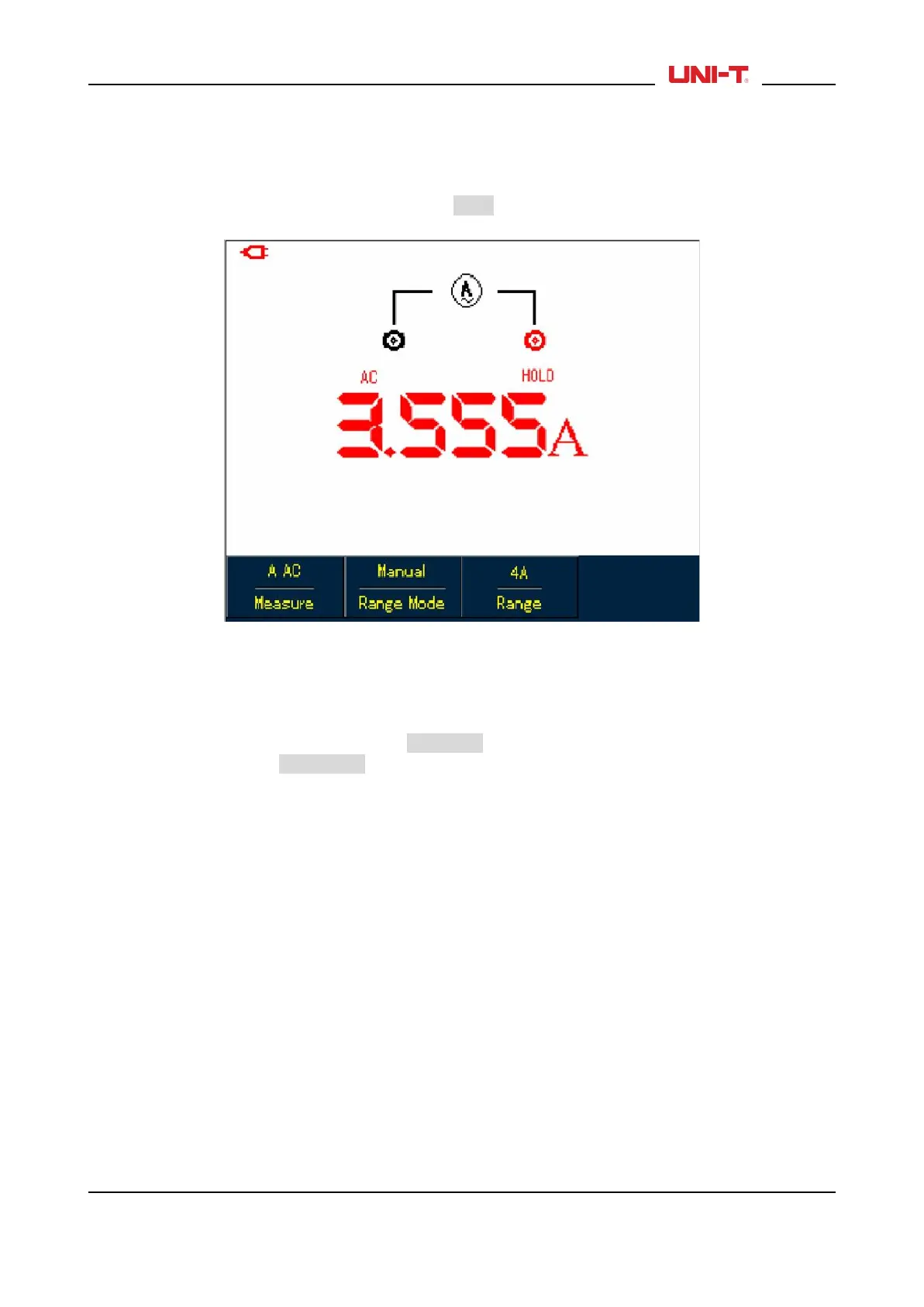

Figure 5-21 Freezing Measurement Values
5.6 Making Relative Measurement
Relative measurement displays a current measuring result relative to the specific reference value.
Refer to capacitance measurement in relative mode. First of all you need to obtain a reference value:
1. Press R button to set measurement type to Resistance.
2. Press F1 button to select Capacitance option
3. Connect test leads to input terminals (Black to COM and Red to V/Ω)
4. Wait until the reading becomes stable, then press F2 button to access the relative mode, △ icon shows
on the upper display and the reference value appears just below △icon.
5. Connect test leads to the capacitor under test, then take capacitance reading on the display.
UTD1000L User Manual 41
