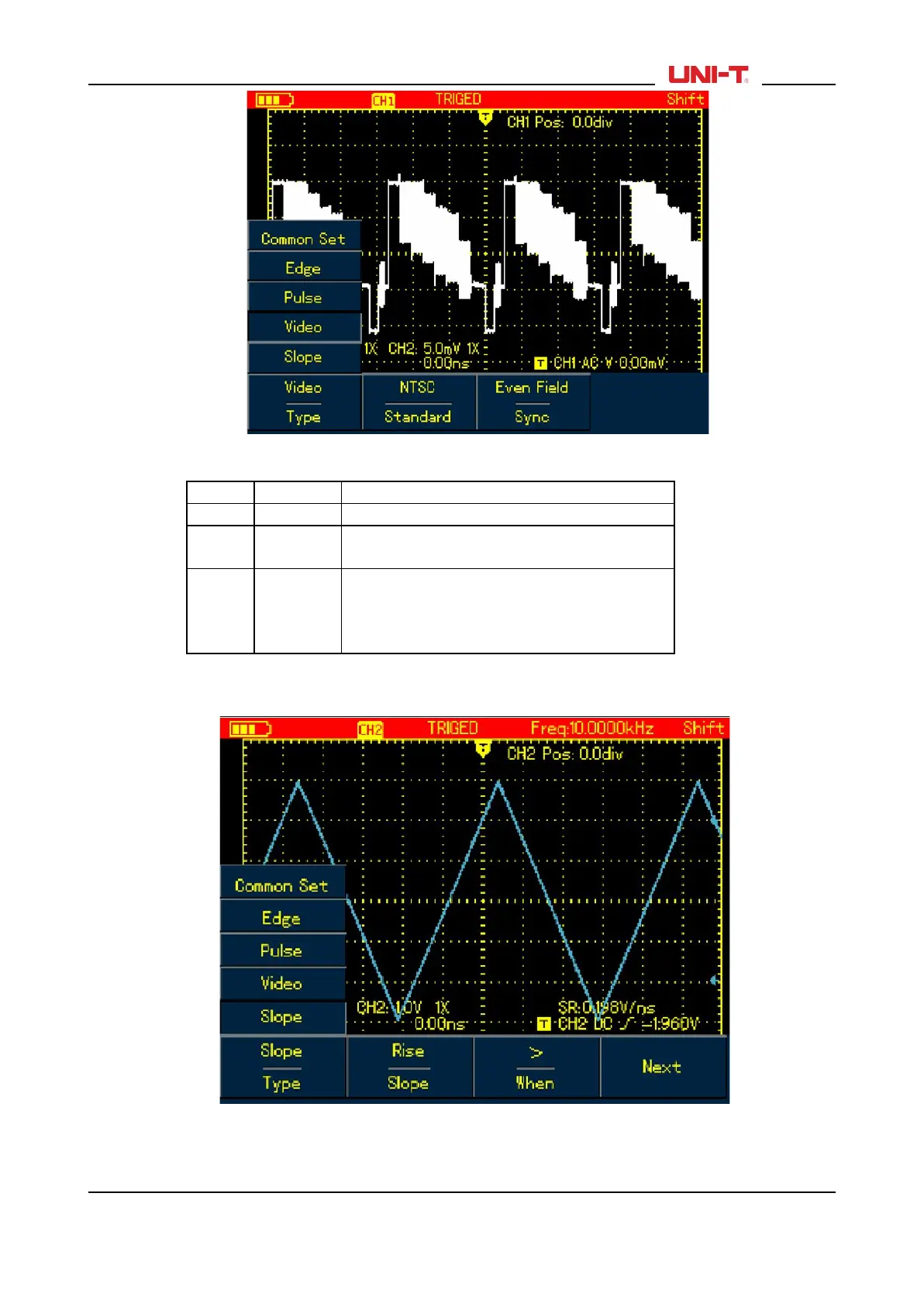

Figure 6-11 Trigger-Video Type
Table 6-6
Menu
Settings
Description
Type
Video
Set trigger Type to Video.
Forma
t
PAL
NTSC
Trigger on PAL format video signal.
Trigger on NTSC format video signal.
Syn
All Lines
Odd Field
Even
Field
Trigger synchronically on all lines.
Trigger on odd fields.
Trigger on even fields.
6.4.5 Slope Trigger
Trigger occurs only after rise or fall speed rate meets set value.
Figure 6-12 Trigger-Slope Type (Page 1)
UTD1000L User Manual 51
