UNI-T UTD1000L Series User Manual

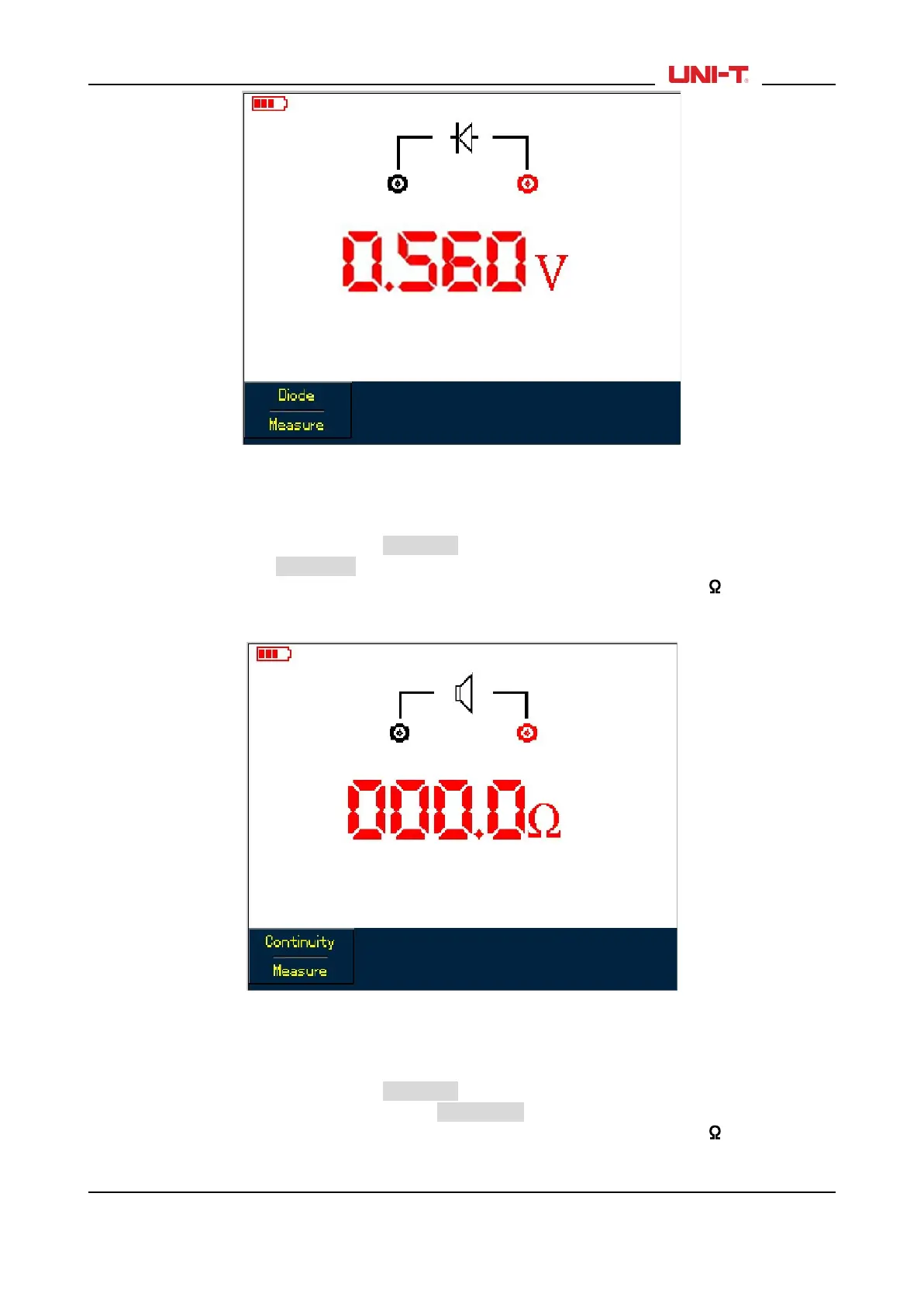

Fgiure 5-2 Testing Diode
5.4.3 Testing for Continuity
To check the continutity, do the following:
1. Press R to set the measurement type to Resistance.
2. PressF1 button to select Continutity.
3. Plug test lead connectors into multimeter input terminals (Black to COM and Red to V/Ω).
4. Connect test leads to tested points. The multimeter will beep if tested resistance between tested points
is lower than70Ω.
Figure 5-3 Testing for Continuity
5.4.4 Measuring Capacitance
To measure capacitance, do the following:
1. Press R to set the measurement type to Resistance.
2. Press F1 button to switch measurement type to Capacitance.
3. Plug test lead connectors into multimeter input terminals (Black to COM and Red to V/Ω).
4. Connect test leads to the capacitor under test, then take the reading.
Note: To ensure the accuracy, please use the relative mode if test capacitance is ＜5 nF.
UTD1000L User Manual 31
