UNI-T UTD1000L Series User Manual

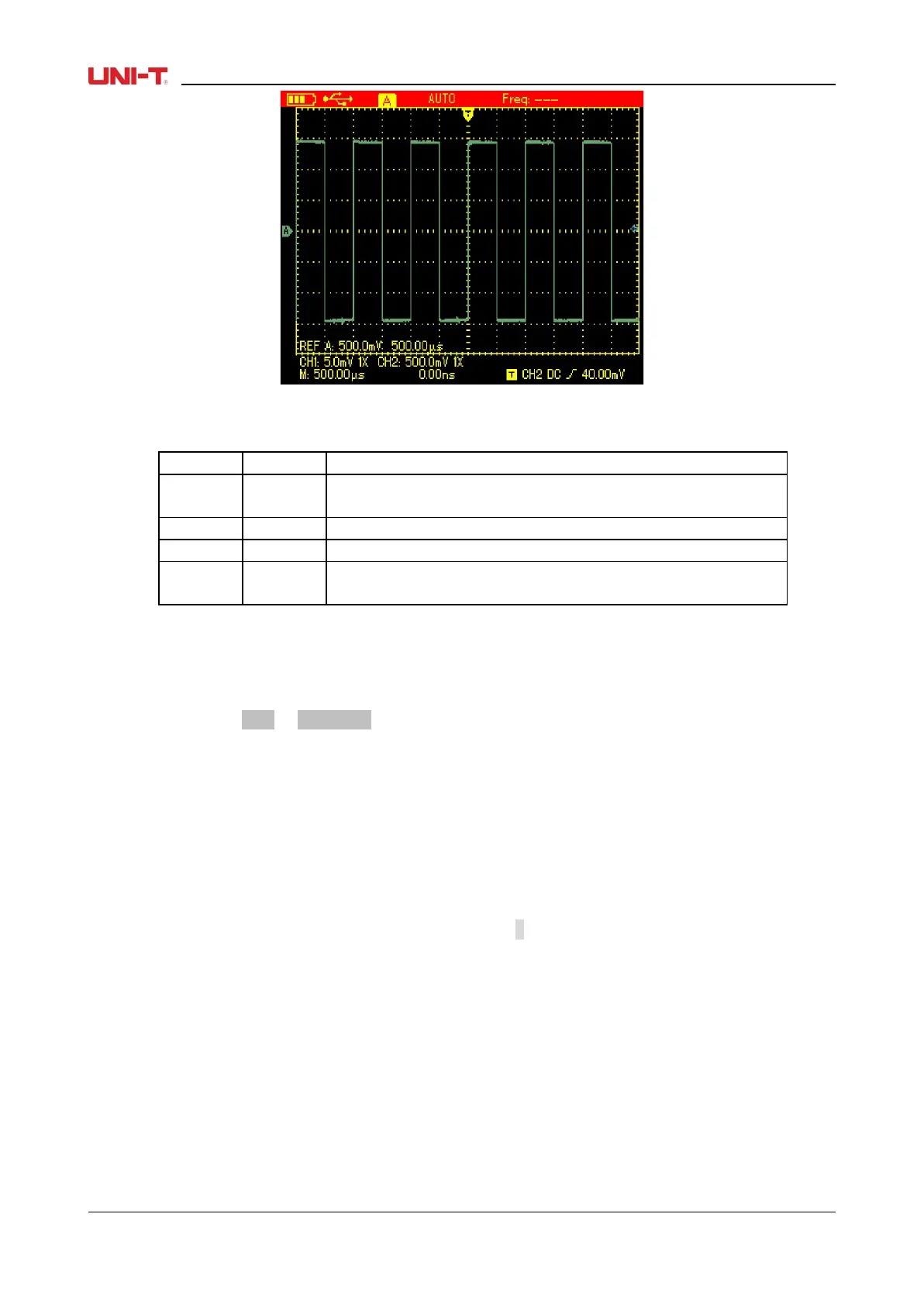

Figure 6-27 Recall Reference Waveforms
Set up as shown in the following table:
Table 6-14
Settings
Description
Ref
Wave
REF A
REF B
UTD1000L can recall REFA or REFB individually or both of them
at the same time.
Location
1-20
Use Right and Left buttons to select the location to be recalled.
Recall
To begin the recalling
Clear
For Model UTD1000L, it’s used to turn off current
waveform(REFA or REFB)
Case 1: To save and recall channel waveforms to the internal channel:
Saving Waveforms
1. Press SHIFT and shift icon shows on upper right part of screen;
2. Press STORAGE to access storage menu;
3. Press F1 to set Type to Waveform;
4. Press Left&Rightbuttons to set Location to 1; press F3 to select target Source; (Only available in
UTD1000DL)
5. Press F3 of UTD1000CL to save, and also F3button for UTD1000DL, then “storage success” shows on
the display , indicating the waveform has been successfully saved into the Oscilloscope;
Recalling Waveform
6. Press SHIFT, shift icon shows on upper right part of display.
7. Press REF to access waveform recall menu;
8. Press F1 of UTD1000L to select between REFA or REFB;
9. Press Left &Right arrow buttons to set Location to 1;
10. Press F3 to recall, “Load Success” will show to indicate the waveform has been successfully
displayed on the screen too;
11. Press F4 to turn off the current reference waveform.
6.9 Making Cursor Measurements
To make cursor measurements, do the following:
1. Press SHIFT and shift icon shows on upper right part of display.
2. Press CURSOR to access cursor menu;
3. Press F2 of UTD1000DL to choose the channel for cursor measurement (No selection for UTD1000CL,
it defaults at CH1)
4. Press F1 to set up measuring type.
64 UTD1000L User Manual
