There are two options available for measuring Type in cursor menu: Voltage and Time.
When measuring voltage, use SELECT and arrow buttons to adjust the locations of two cursors in order to
measure ΔV parameter, do the same with Δt measurement.
Voltage/Time Measurement Tips: Cursor 1 and Cursor 2 shows simultaneously on the screen, use arrow
buttons to remove the cursors and press SELECT to choose and adjust the desired one. Displayed readout is
the voltage or time between two cursors.
When the cursor function turns on, measuring values can be automatically shown on upper left corner of
the display.

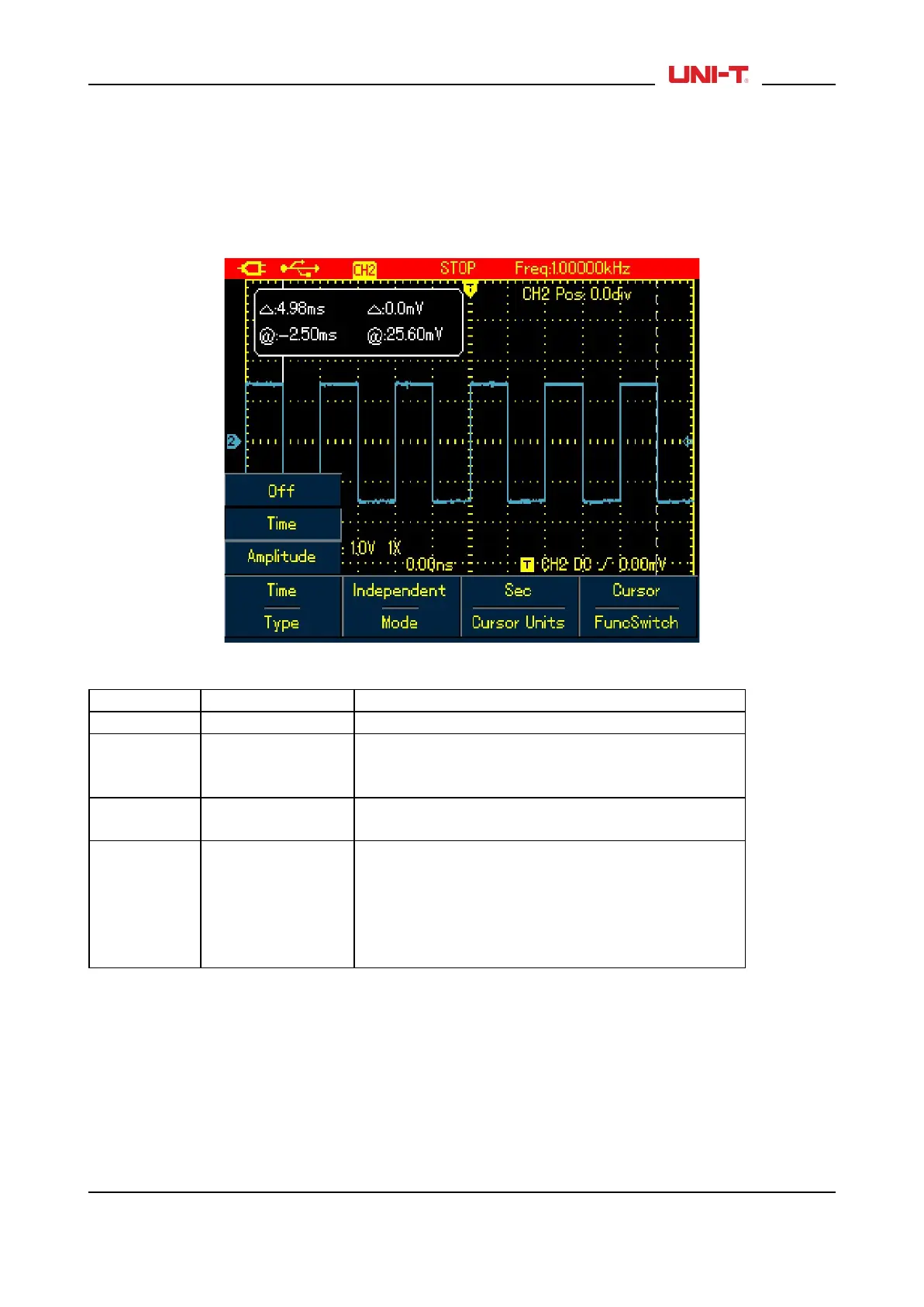

Figure 6-28 Cursor Menu for Time Measurement
Table 6-15
Use arrow buttons to set the target to channel
waveform;
Use arrow buttons to set the target to trigger level;
Use arrow buttons to set the target to the cursors,
press SELECT to select between Cursor 1 and Cursor
2.
To Next Page
