UNI-T UTD1000L Series



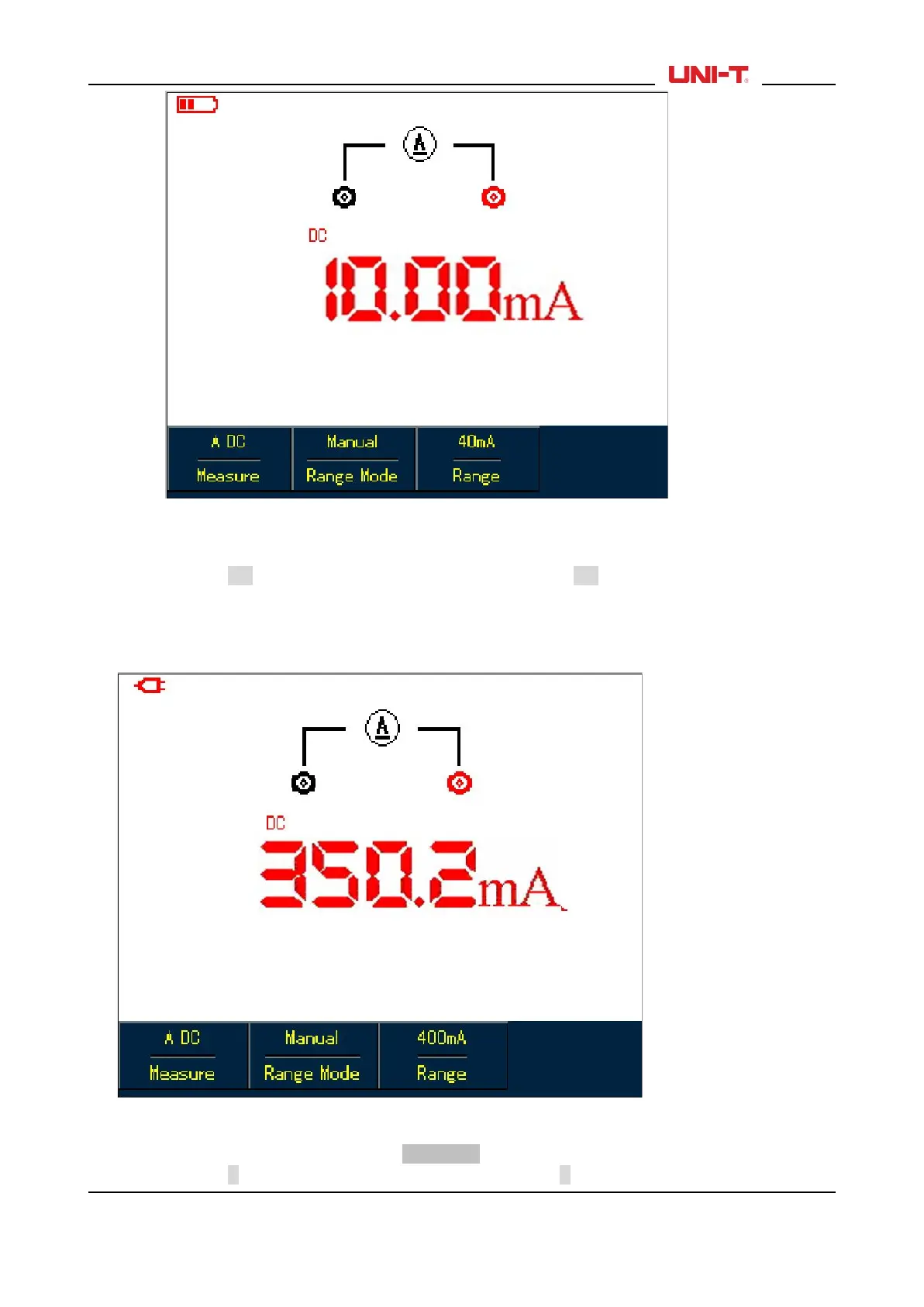

Figure 5-14 Measuring DC Current Lower than 40mA
To measure DC current within 40mA-400mA, do the following:
1. Press I button to set measurement type to DC Current.
2. Press F3 to select mA range, and the measurement unit will display mA accordingly.
3. Plug mA current module (UT-M10) into input terminalsCOM and V/Ω, then turn the switch on the
module to 400mA range.
4. Insert Black and Red test leads correspondingly into Black and Red terminals on the module.
5. Then connect test leads to tested points, than take the DC current reading.
Figure 5-15 Measuring DC Current within 40mA-400mA
To measure DC current greater than 400mA, do the following:
1. Press I button to set measurement type to DC Current.
2. Press F3 to select A range, and the measurement unit will display A accordingly.
UTD1000L User Manual 37
