UNI-T UTD1000L Series User Manual

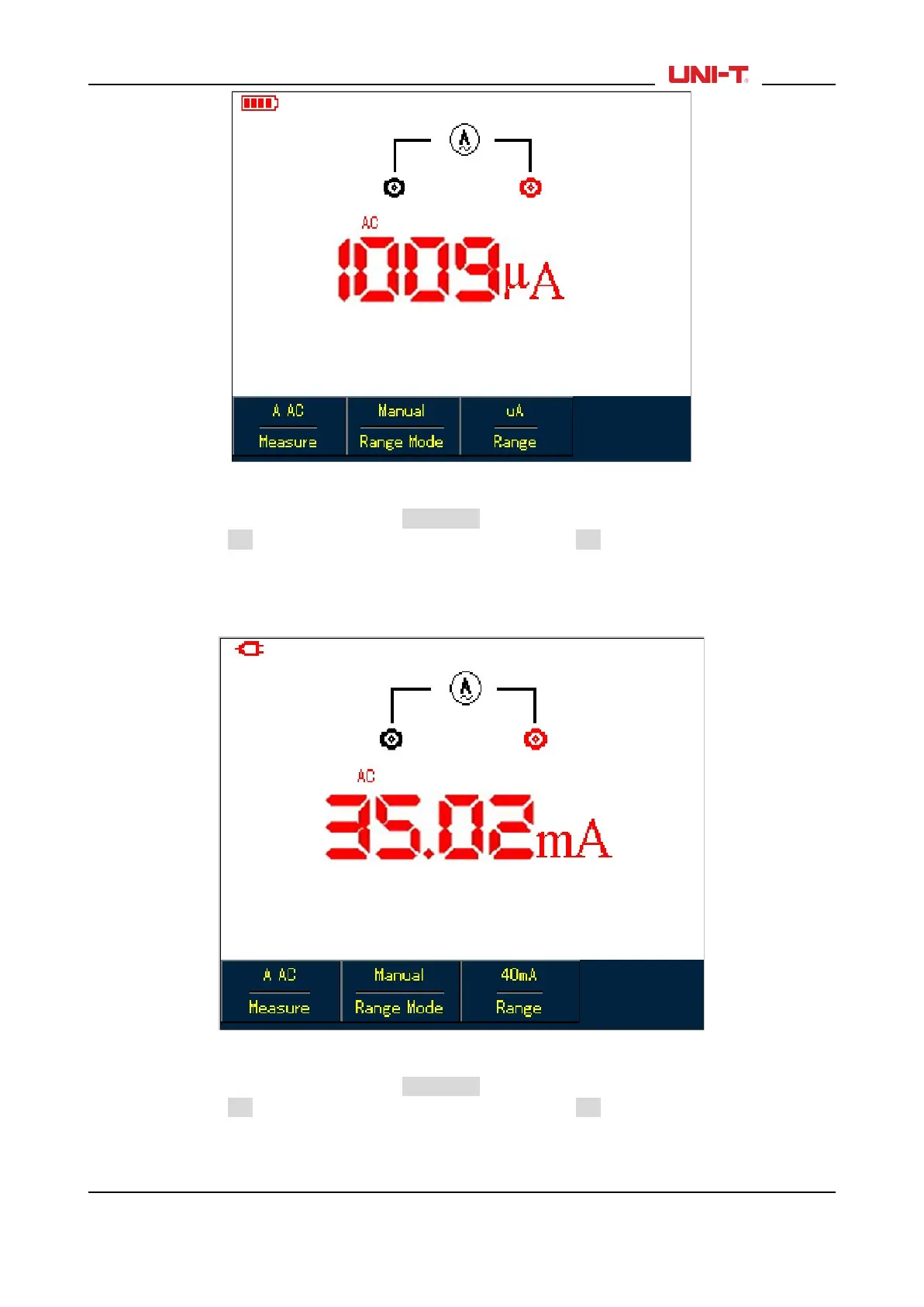

Figure 5-17 Measuring AC Current Equal to or Lower than 1mA
To measure AC Current within 1mA-40mA, do the following:
1. Press I button to set measurement type to AC Current,
2. Press F3 to select mA range, the measurement unit will change into mA accordingly.
2. Plug mA current module (UT-M10) properly into input terminals COM andV/Ω, then turn the switch on
the module to 40mA range.Insert Black and Red test leads correspondingly into Black and Red terminals on
the module.
4. Connect test leads to tested points, then take the AC current reading.
Figure 5-18 Measuring AC Current Lower than 40mA
To measure AC Current within40mA-400mA, do the following:
1. Press I button to set measurement type to AC Current,
2. Press F3 to select mA range, the measurement unit will change into mA accordingly.
3. Plug mA current module (UT-M10) properly into input terminals COM andV/Ω, then turn the switch on
the module to 400mA range.
4. Insert Black and Red test leads correspondingly into Black and Red terminals on the module.
UTD1000L User Manual 39
