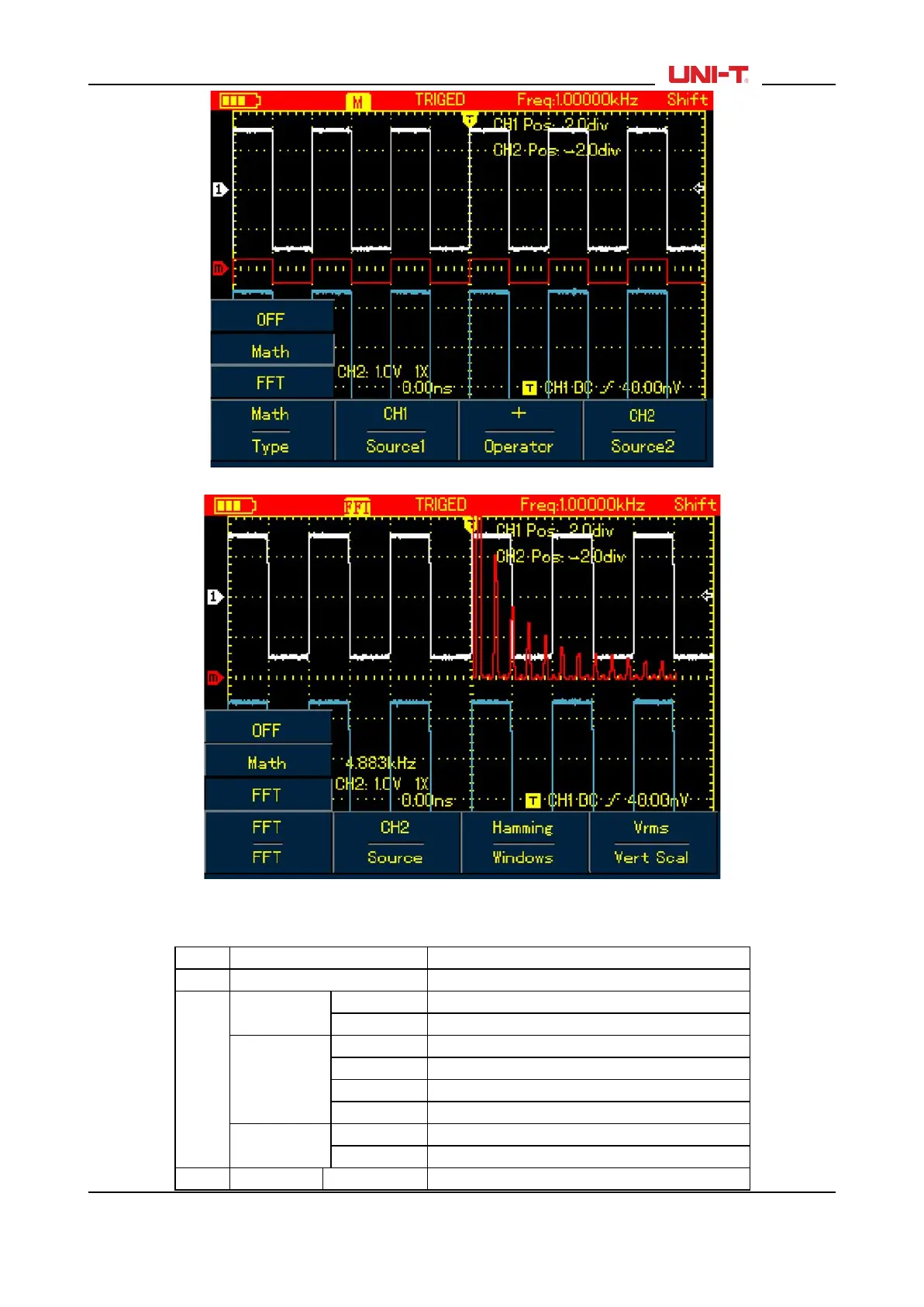

Figure 6-31 UTD1000DL MATH Operation
Figure 6-32 UTD1000DL FFT Operation
Set up Math and FFT menus as follows:
Table 6-20
Type
Settings
Description
OFF
-----
Turn off MATH function
Mat
h
Source 1
CH1
Set CH1 as Source 1 of Math operation
CH2
Set CH2 as Source 1 of Math operation
Operator
＋
Source1＋Source 2
－
Source 1－Source 2
×
Source 1×Source 2
÷
Source 1÷Source 2
Source2
CH1
Set CH1 as Source 2 of Math operation
CH2
Set CH2 as Source 2 of Math operation
Source
CH1
Set the source to CH1
UTD1000L User Manual 69
