36
OPERATING CONTROLS AND FUNCTIONS
METERS, INDICATORS AND LAMPS (cont’d)
STATUS DISPLAY (cont’d)

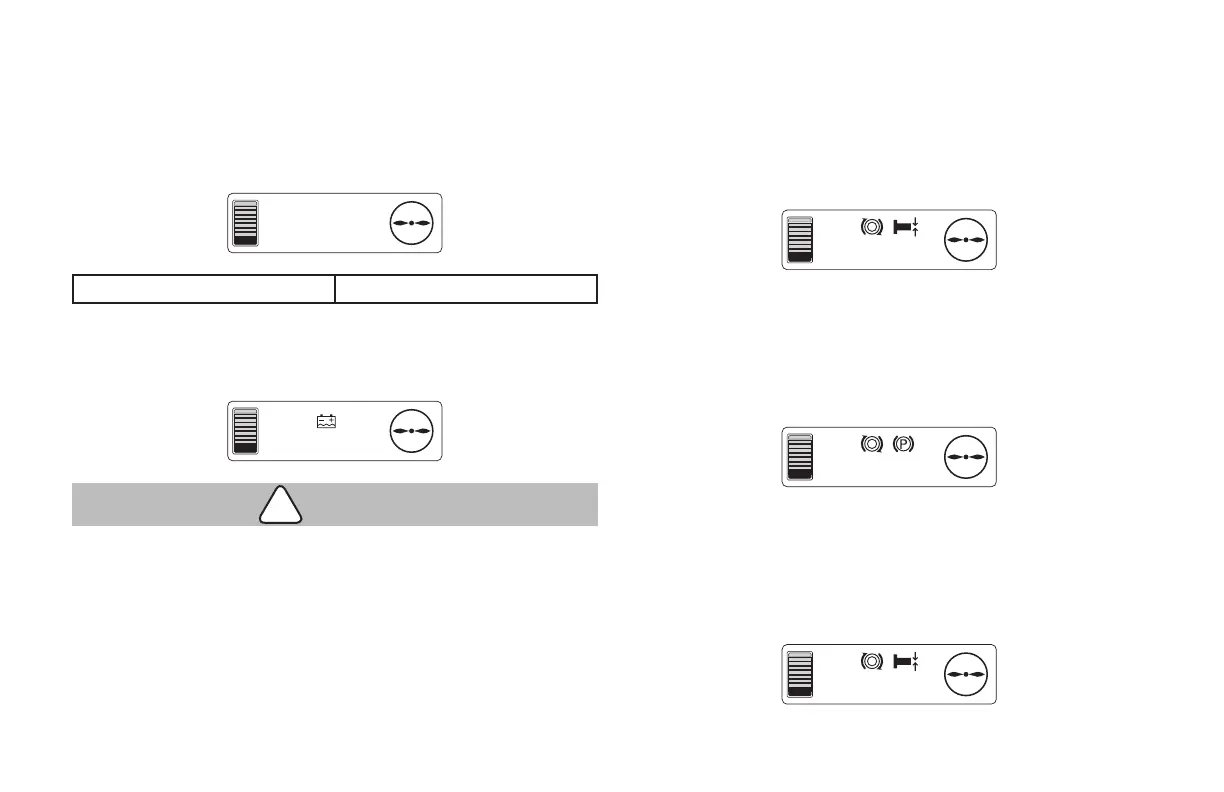

Speedometer
The current traveling speed (MPH) is displayed.
Display range 0 MPH - 8 MPH
Battery discharge indicator
When the battery is discharged to more than 70 percent of capacity, the
battery discharge indicator is displayed.
CAUTION
!
• When the “charge battery” symbol mark appears, immediately
charge the battery. If the truck is used until it stops operating,
the battery lifetime will be shortened.
F
E
AM 10:00
2 MPH
F
E
AM 10:00
Neutral safety (for traveling)
If the ignition switch is turned to the ON position with the multi-
functional lever operated to travel forward/backward, a warning is
displayed and the forklift truck cannot travel. When the multi-functional
lever is returned to the neutral position, the warning disappears and the
forklift truck can travel.
Neutral safety (for brake)
If the ignition switch is turned to the ON position with the brake pedal
depressed, a warning is displayed and the forklift truck cannot travel.
When the brake pedal is released to apply the parking brake, the
warning disappears and the forklift truck can travel after re-depressing
the brake pedal.
When starting to travel
If the presence pedal is depressed with the multifunctional lever
operated to travel (forward/backward) and the brake pedal depressed
when starting to travel, a warning is displayed and the forklift truck
cannot travel. When the multi-functional lever is returned to the neutral
position, the warning disappears and the forklift truck can travel.
F
E
AM 10:00
F
E
AM 10:00
F
E
AM 10:00
