208 Local phone settings
€ Scroll

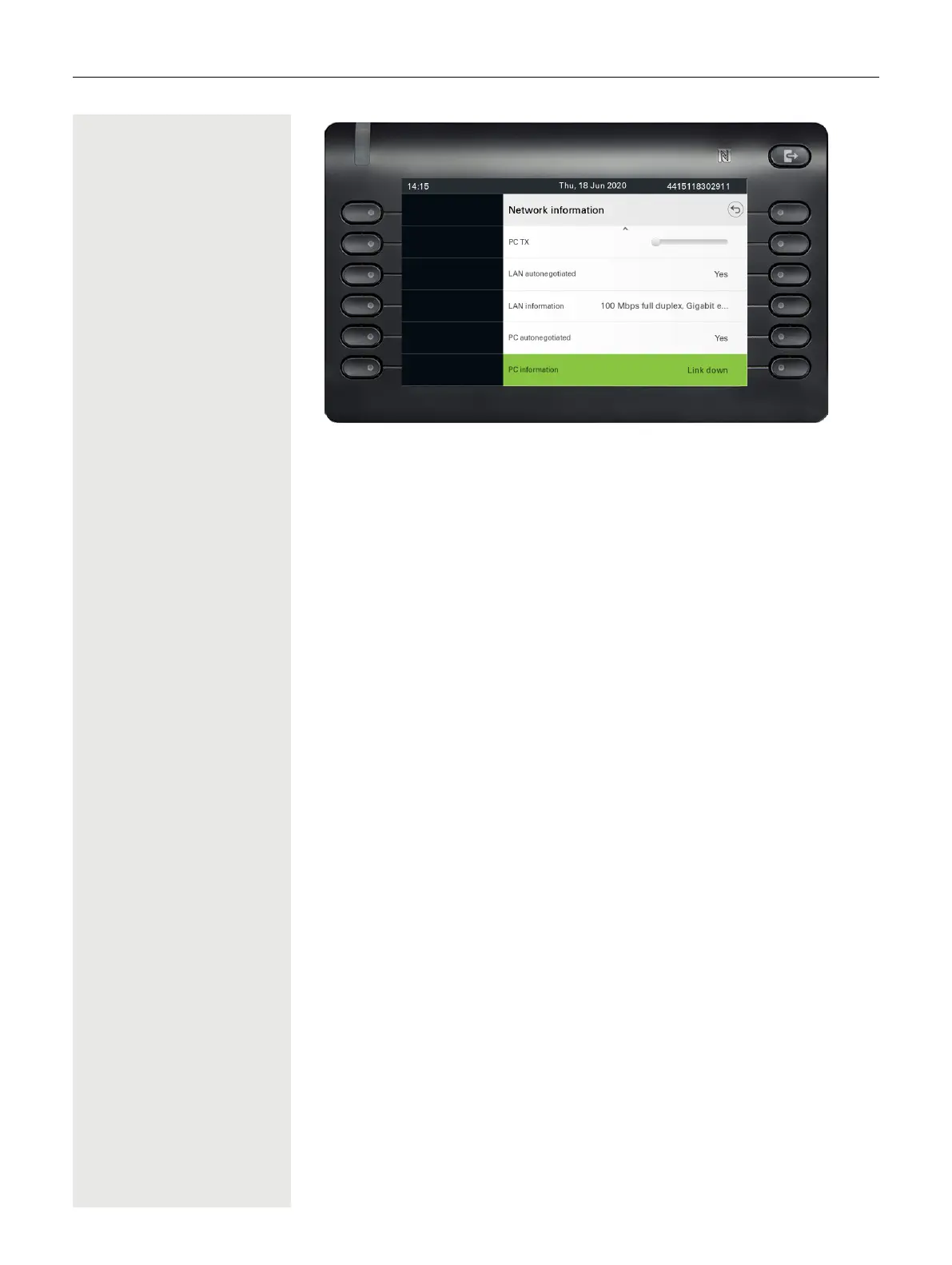

DNS name: Name or number of telephone.
URL: HTTP address of the web interface. This address is specified in the ad-
dress line of the Internet browser and is used to call up the web interface of the
phone in the browser.
IPv4 address: Display of the IP address or name that was assigned to the
phone in the network.
LAN-RX/PC-RX: The network or PC interface data packets received are illus-
trated dynamically in graphical form.
LAN-TX/PC-TX: The network or PC interface data packets sent are illustrated
dynamically in graphical form.
LAN autonegotiation/PC autonegotiation [Yes)|No]: Displays whether the
data transfer rate network or PC interface is set to automatic (Yes) or manual
(No).
LAN information/PC information: [10|100|1000] Mbit/s: Data transfer rate of
the network or PC interface. If an interface is not in use, Link down is displayed.
