 Where addressable input
devices are available – a
screen for selection of the
first addressable input whose
parameters are to be
displayed:
For each addressable input are
displayed:
 Number of the loop, input
devices address in the loop
and the number of the input
in the device if more than one
– in the upper line;
 Text message for the device
– in the bottom line.
The selected input is pointed by
arrow – „>>”.
Buttons and seen on the right panel section appear when more than one addressable
input is available; the Go to field and the digit buttons appear when more than one addressable input
device is available.
Buttons and allow the user to switch between the next and the previous addressable
input (if available).
When you press a digit button, the arrow „>>” before the selected addressable input disappears
and the Go to field is activated; then you may enter a random 3-digit number for the device. To edit
the number press button , and the last entered digit is deleted.
The devices get numbers according to the following sequence: from the first device in Loop 1 to
the last device in Loop 2; from the first device in Loop 2 to the last device in Loop 2.
When you press button as soon as a number is entered in the Go to field, the first
addressable input of the first addressable input device is selected; its number is equal to or higher
than the number in the field:
 If you enter 0, the first addressable input will be selected;
 If you enter a number higher than the number of the last addressable input device, the last
addressable input will be selected.
Simultaneously, the number in the Go to field disappears, i.e. the field is deactivated.
When you press button as soon as a number is entered in the Go to field, it will be
deactivated and the arrow „>>” will appear before the selected addressable input.
С

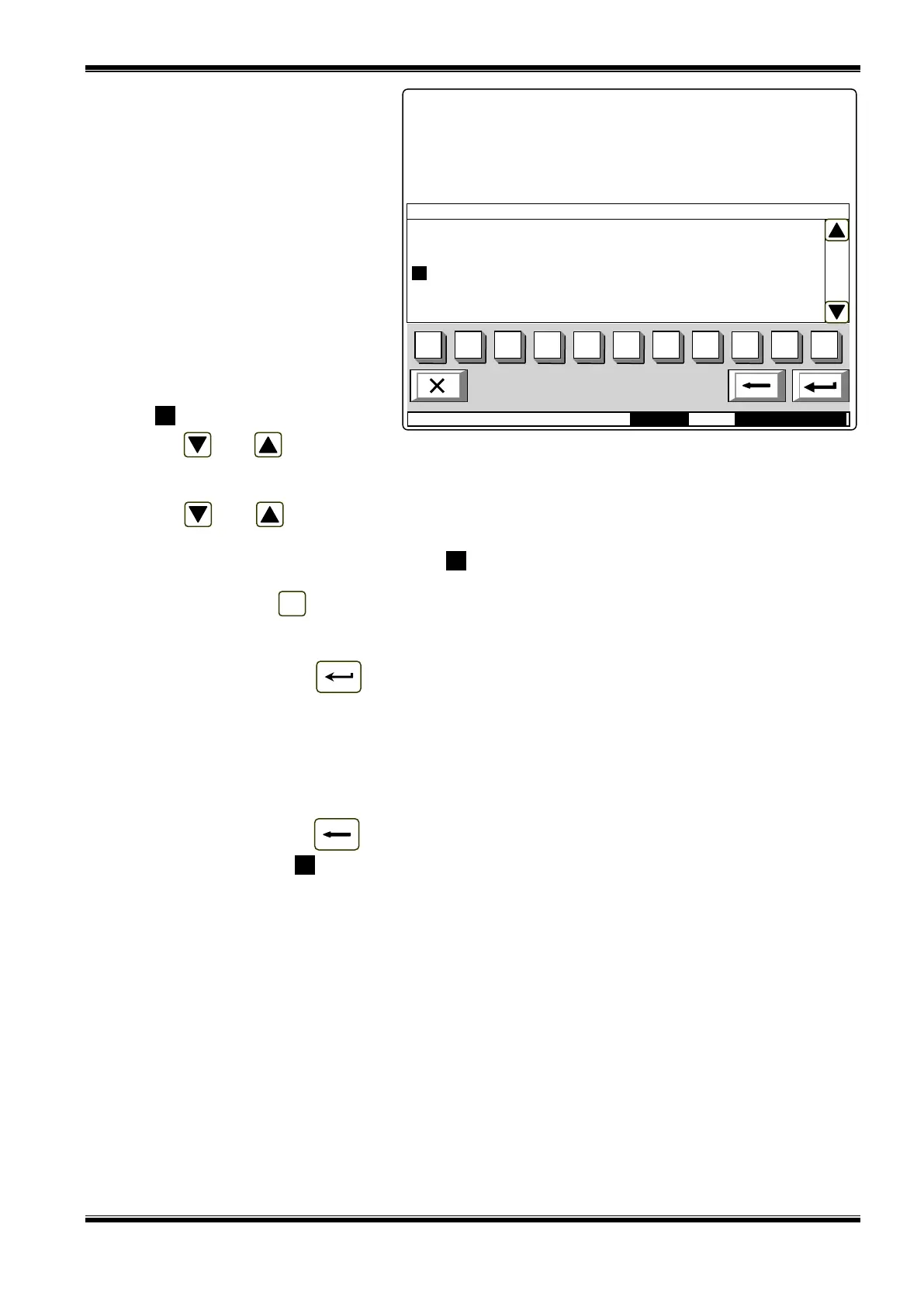

Mode:DAY LOC АctInp 0000 15:08:38 Mon 15 Mar 2010
FIRE CONTROL PANEL IFS7002
UniPOS
Parameters: Input Go to:
>>Loop1 Аddr9.1
Point 1.009
0
1
2
3
4
5
6
7
8
9
С
