Simultaneously, the number in the Go to field will be deleted; i.e. the field is deactivated.
When you press button the detector status is being changed alternatively from DISABLED
to ENABLED and reverse; in the panel bottom left section appears a reminder Data not saved.
Changes (disable/enable addressable fire detector) are accepted if you press button and the
Go to field is empty – then the reminder Data not saved disappears.
12.3.1.3. Menu Outputs
The menu is used for disabling and enabling outputs (monitored outputs and addressable output
modules. It contains the following subordinate menu and functions:
Monitored outputs;
Addr Outputs Loop1;
Addr Outputs Loop 2.
Upon activation of function
Monitored outputs a screen displaying
the status of the control panel’s
monitored outputs appears:
Buttons and appearing in
the right panel section allow the user
to switch between the first and the
second monitored output.
When you press button the
monitored output status is being
changed alternatively from DISABLED
to ENABLED and reverse; in the panel
bottom left section appears a reminder
Data not saved. Changes
(disable/enable addressable
monitored output) are
accepted if you press button and the Go to field is empty – then the reminder Data not saved
disappears.
Menus Addr Outputs Loop1 and Addr Ouputs Loop 2 have identical layout. Enter the menus to
display one of the following screens:
If no disabled addressable
output modules are available:

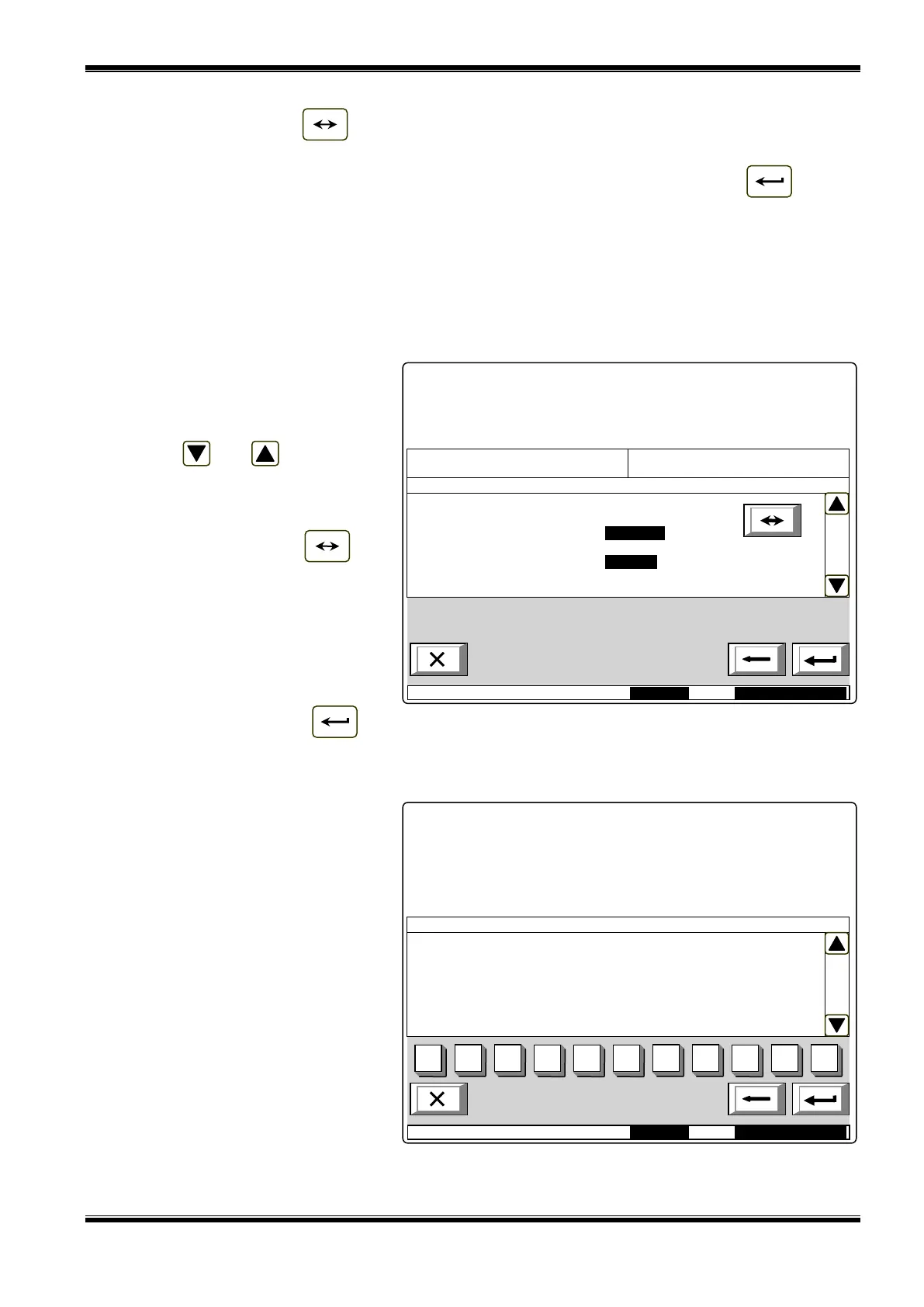

Mode:DAY 14:39:46 Mon 22 Mar 2010
FIRE CONTROL PANEL IFS7002
UniPOS
Faults total: 00000
Disables total: 003
Failed Outputs: 00000
Disabled Outputs: 001
System functions/Disables/Outputs
Monitored output 1: DISABLEDDISABLED
Monitored output 2: ENABLED
Mode:DAY LOC АctInp 0000 15:09:10 Mon 22 Mar 2010
FIRE CONTROL PANEL IFS7002
UniPOS
System functions/Disables/Outputs Go to:
Disabled Outputs - total Loop1 000
Loop 1
OUTPUT:
To Next Page
