13.4.2. Screen List Devices
The screen displays a list of the
devices, by type and their respective
number, if the loop is initialized:
Example: Fixed-temperature fire
detectors FD7110 – 3 pcs, Rate-of-
rise fire detectors FD7120 – 1 pc.,
manual call points FD7150 - 6 pcs
and so on.
13.4.3. Menu Device parameters
The menu is used to set up the parameters of the devices integrated in the fire alarm loop Enter
the menu to display:
 If no devices are included in the loop – a screen with the message No devices included; the
only option is to exit the menu;
 If some devices are included
in the loop – a screen where
you may select the device
whose parameters are to be
set up:

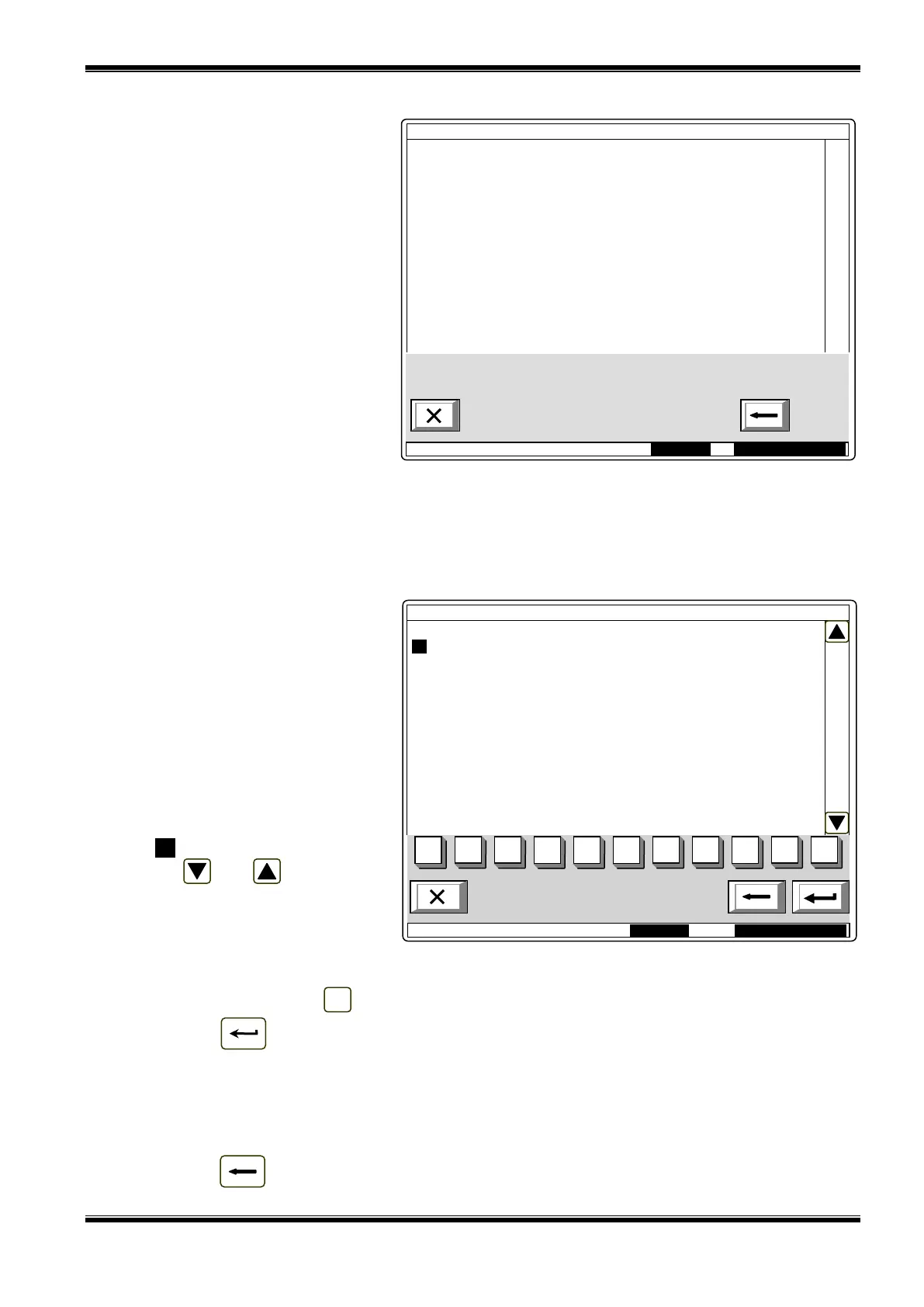

For each device are displayed:
 Its number (address) in the
loop – in the top line;
 Text message – in the line
beneath.
The current device is pointed by
arrow – „>>”.
Buttons and at the right
panel side are visualized if more than
one device is available in the loop;
the Go to field on the panel heading
and the digit buttons appear if more than 7 devices are available in the loop. Press a digit button,
the Go to field is activated and a random 3-digit address for each device in the loop can be entered.
To edit the address use button ; press it and the last entered digit will be deleted.
Press button after you entered a number in the Go to field; then the device whose address
is in the field will be selected:
 If the number is 0, the device having address 1 will be selected;
 If the number is higher than the actual number of devices in the loop, the device having the
highest address number will be selected
Simultaneously, the number in the Go to field will be deleted, i.e. the field is deactivated.
Press button after you entered a number in the Go to field and the field will be deactivated.
С
Mode: DAY LOC 15:34:53 Tue 23 Mar 2010
SetUp Loop 1 Devices Total: 37 Go to:
>>Аddr1 FD7110 On
Point 1.001
Аddr2 FD7201 On
Point 1.002
Аddr3 FD7201S On
Point 1.003
Аddr4 FD7120 On
Point 1.004
Адddr5 FD7130 On
Point 1.005
Аddr6 FD7150 On
Point 1.006
Аddr7 FD7203 On
Point 1.007
0
1
2
3
4
5
6
7
8
9
С
Mode DAY LOC ActInp: 0000 16:37:37 Fri 12 Mar 2010
List devices
Loop 1 Loop 2
FD7110 = 003 FD7110 = 002
FD7120 = 001 FD7120 = 003
FD7130 = 030 FD7130 = 023
FD7150 = 006 FD7150 = 004
FD7160 = 000 FD7160 = 001
FD7201 = 001 FD7201 = 001
FD7201S = 005 FD7201S = 001
FD7203 = 001 FD7203 = 000
FD7203R = 000 FD7203R = 000
FD7203OC = 000 FD7203OC = 000
FD7204 = 005 FD7204 = 002
FD7204S = 001 FD7204S = 001
Контур 1 Контур 2
FD7110 = 003 FD7110 = 002
FD7120 = 001 FD7120 = 003
FD7130 = 030 FD7130 = 023
FD7150 = 006 FD7150 = 004
FD7160 = 000 FD7160 = 001
FD7201 = 001 FD7201 = 001
FD7201S = 005 FD7201S = 001
FD7203 = 001 FD7203 = 000
FD7203R = 000 FD7203R = 000
FD7203OC = 000 FD7203OC = 000
FD7204 = 005 FD7204 = 002
FD7204S = 001 FD7204S = 001
Режим ДЕН ЛОК 16:44:26 Пет 25 Мар
2005
Режим ДЕН ЛОК 13:37:24 Пет 25 Мар
2005
Инициализация
Неуспешна операция!
Желаете ли повторение на операцията?
– потвърждение
– отказ
Режим ДЕН ЛОК 11:39:25 Пет 25 Мар
2005
