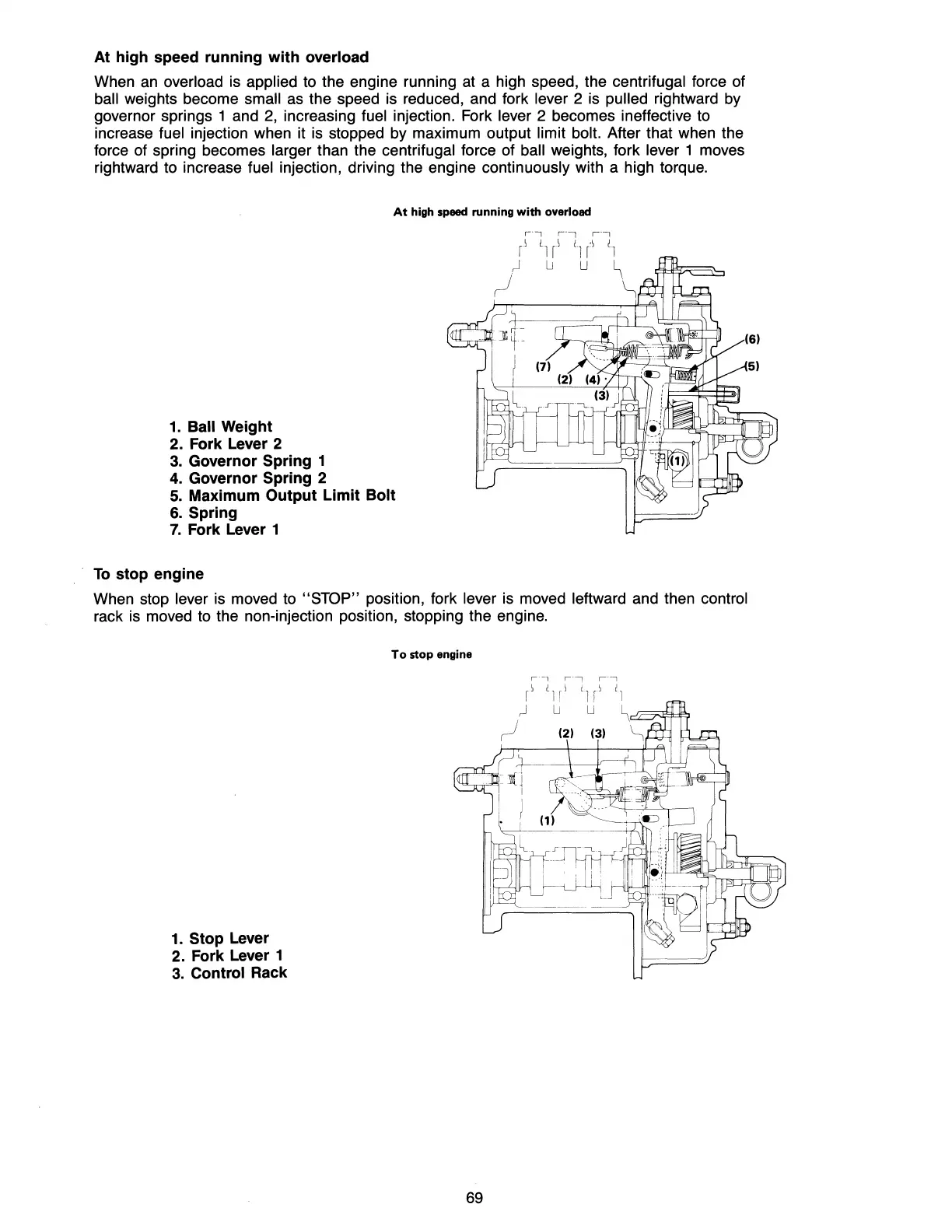

At
high
speed running
with
overload
When
an
overload is applied to the engine running at a high speed, the centrifugal force of
ball weights become small
as
the speed
is
reduced, and fork lever 2 is pulled rightward by
governor springs 1 and
2,
increasing fuel injection. Fork lever 2 becomes ineffective
to
increase fuel injection when it is stopped by maximum output limit bolt. After that when the
force
of
spring becomes larger than the centrifugal force of ball weights, fork lever 1 moves
rightward to increase
fuel injection, driving the engine continuously with a high torque.
At
high speed running
with
overload
1.
Ball Weight
2. Fork Lever 2
3.
Governor Spring 1
4.
Governor Spring 2
5.
Maximum
Output
Limit
Bolt
6.
Spring
7.
Fork Lever 1
To
stop engine
(6)
5)
When stop lever is moved
to
"STOP" position, fork lever is moved leftward and then control
rack
is
moved
to
the non-injection position, stopping the engine.
To
stop engine
-1 ,------,
'--I
I,
rl
'1
rIll
LJ
u
~,~-~1t=Il";I
~
1.
Stop
Lever
2. Fork Lever 1
3.
Control Rack
69
