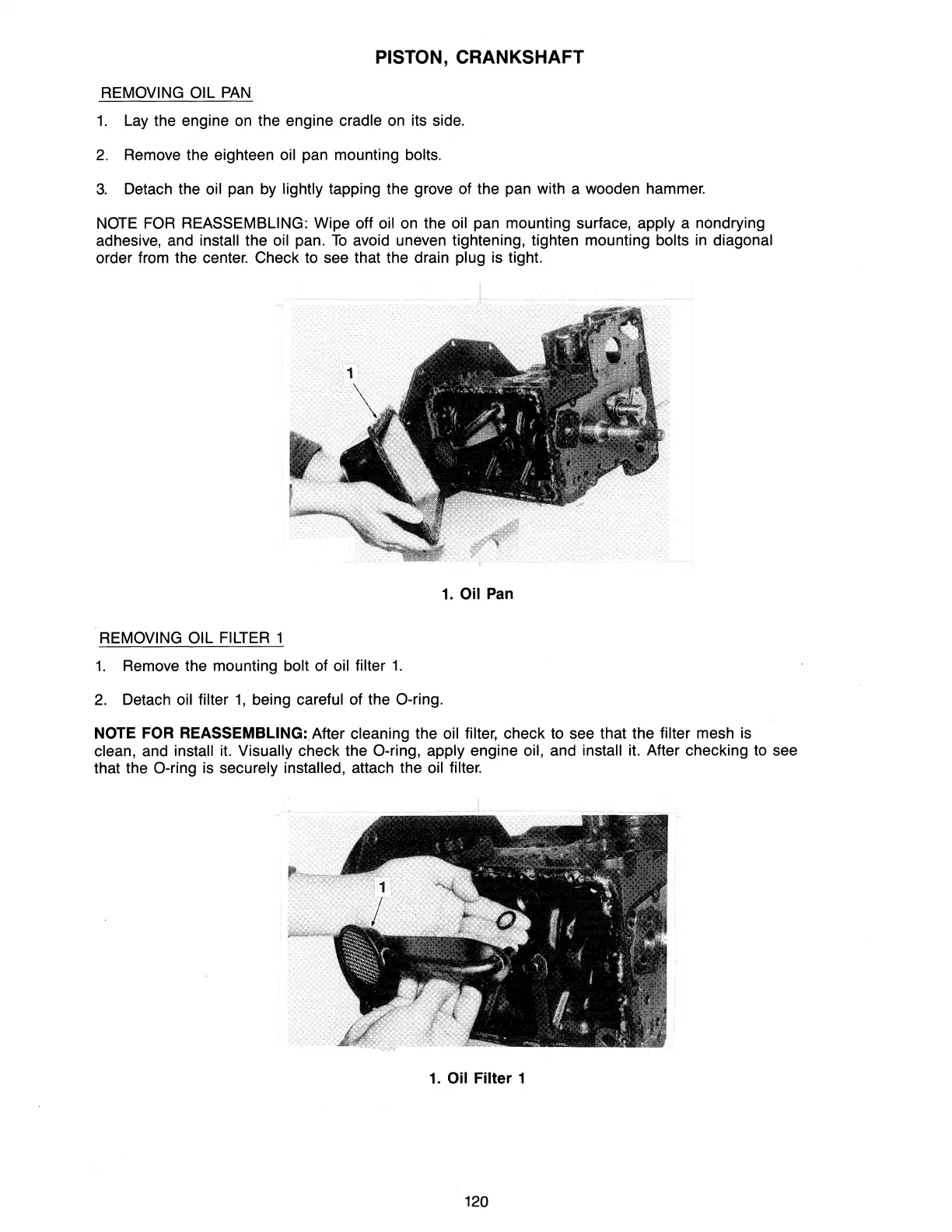

PISTON, CRANKSHAFT
REMOVING OIL
PAN
1.
Lay the engine
on
the engine cradle
on
its side.
2.
Remove the eighteen oil pan mounting bolts.
3.
Detach the oil pan
by
lightly tapping the grove of the pan with a wooden hammer.
NOTE
FOR
REASSEMBLING: Wipe off oil
on
the oil pan mounting surface, apply a nondrying
adhesive, and
install the oil pan.
To
avoid uneven tightening, tighten mounting bolts
in
diagonal
order from the center. Check to see that the drain
plug
is
tight.
1. Oil
Pan
REMOVING OIL
FILTER
1
1.
Remove the mounting bolt of oil filter
1.
2.
Detach oil filter
1,
being careful of the a-ring.
NOTE FOR REASSEMBLlNG:.After cleaning the oil filter, check to see that the filter mesh
is
clean, and install
it.
Visually check the a-ring, apply engine oil, and install it. After checking
to
see
that the a-ring
is
securely installed, attach the oil filter.
1. Oil Filter 1
120
