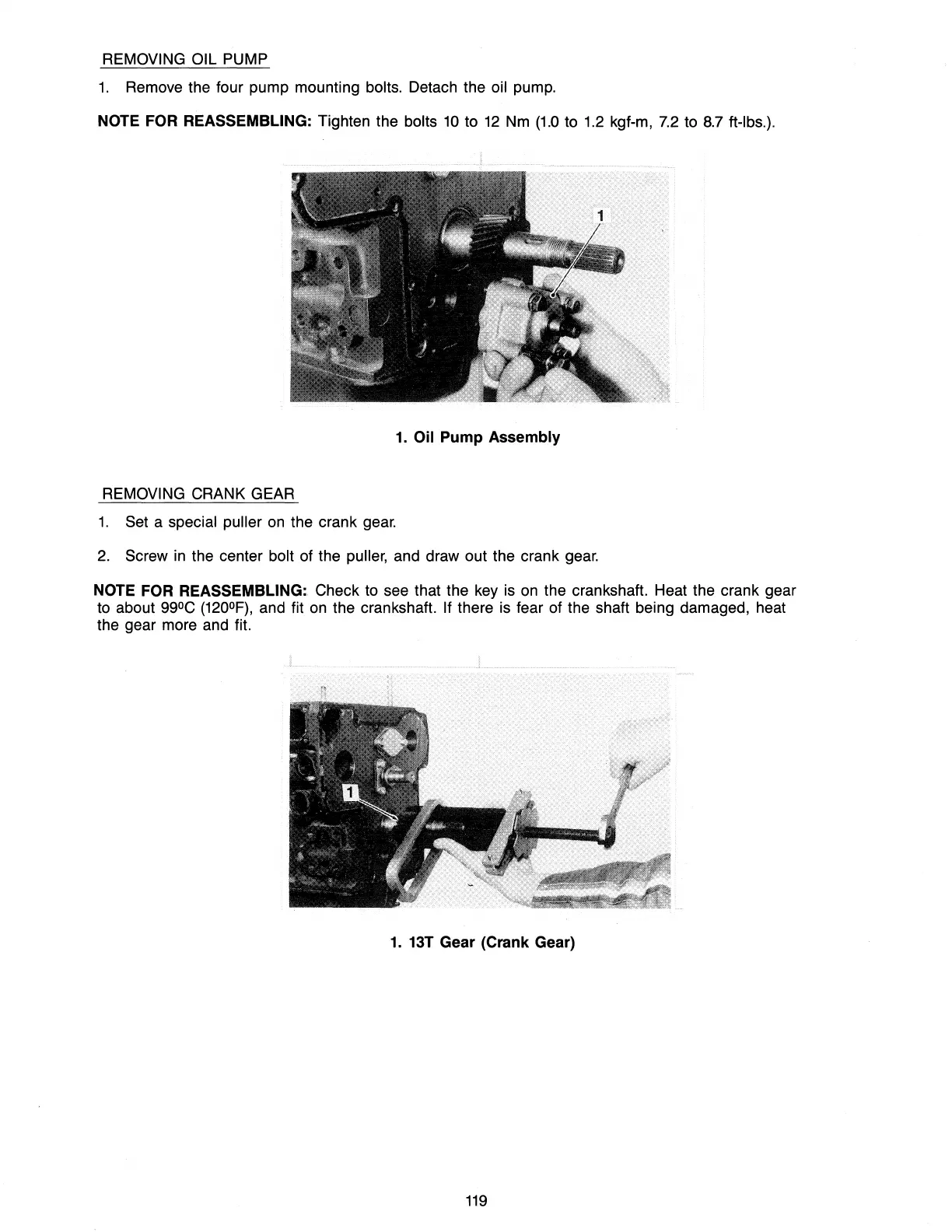

REMOVING OIL PUMP
1.
Remove the four pump mounting bolts. Detach the oil pump.
NOTE FOR REASSEMBLING: Tighten the bolts
10
to
12
Nm
(1.0
to
1.2
kgf-m,
7.2
to
8.7
ft-Ibs.).
1.
Oil Pump Assembly
REMOVING
CRANK GEAR
1.
Set a special puller
on
the crank
gear.
2.
Screw
in
the center bolt of the puller, and draw out the crank
gear.
NOTE
FOR REASSEMBLING: Check
to
see that the
key
is
on
the crankshaft. Heat the crank gear
to about
99
0
C
(120
0
F),
and fit
on
the crankshaft. If there
is
fear of the shaft being damaged, heat
the gear more and fit.
1.
13T Gear (Crank Gear)
119
