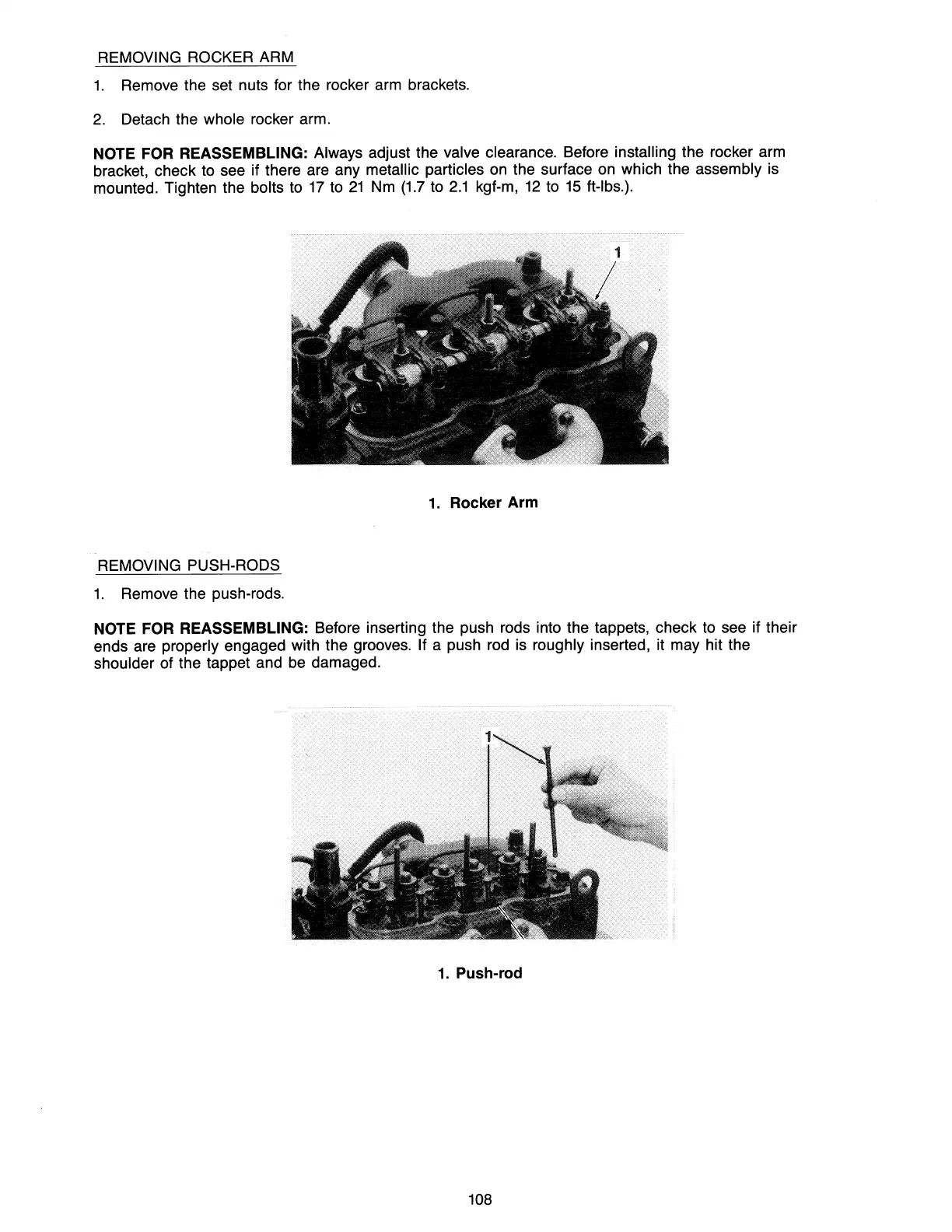

REMOVING ROCKER ARM
1.
Remove the set nuts for the rocker arm brackets.
2. Detach the whole rocker arm.
NOTE FOR REASSEMBLING: Always adjust the valve clearance. Before installing the rocker arm
bracket, check to see if there are any
metallic particles
on
the surface on which the assembly is
mounted. Tighten the
bolts to 17 to
21
Nm
(1.7 to
2.1
kgf-m, 12 to 15 ft-Ibs.).
REMOVING PUSH-RODS
1.
Remove the push-rods.
1. Rocker
Arm
NOTE FOR REASSEMBLING: Before inserting the push rods into the tappets, check
to
see if their
ends are
properly engaged with the grooves. If a push
rod
is roughly inserted, it may hit the
shoulder of the tappet and
be
damaged.
1. Push-rod
108
