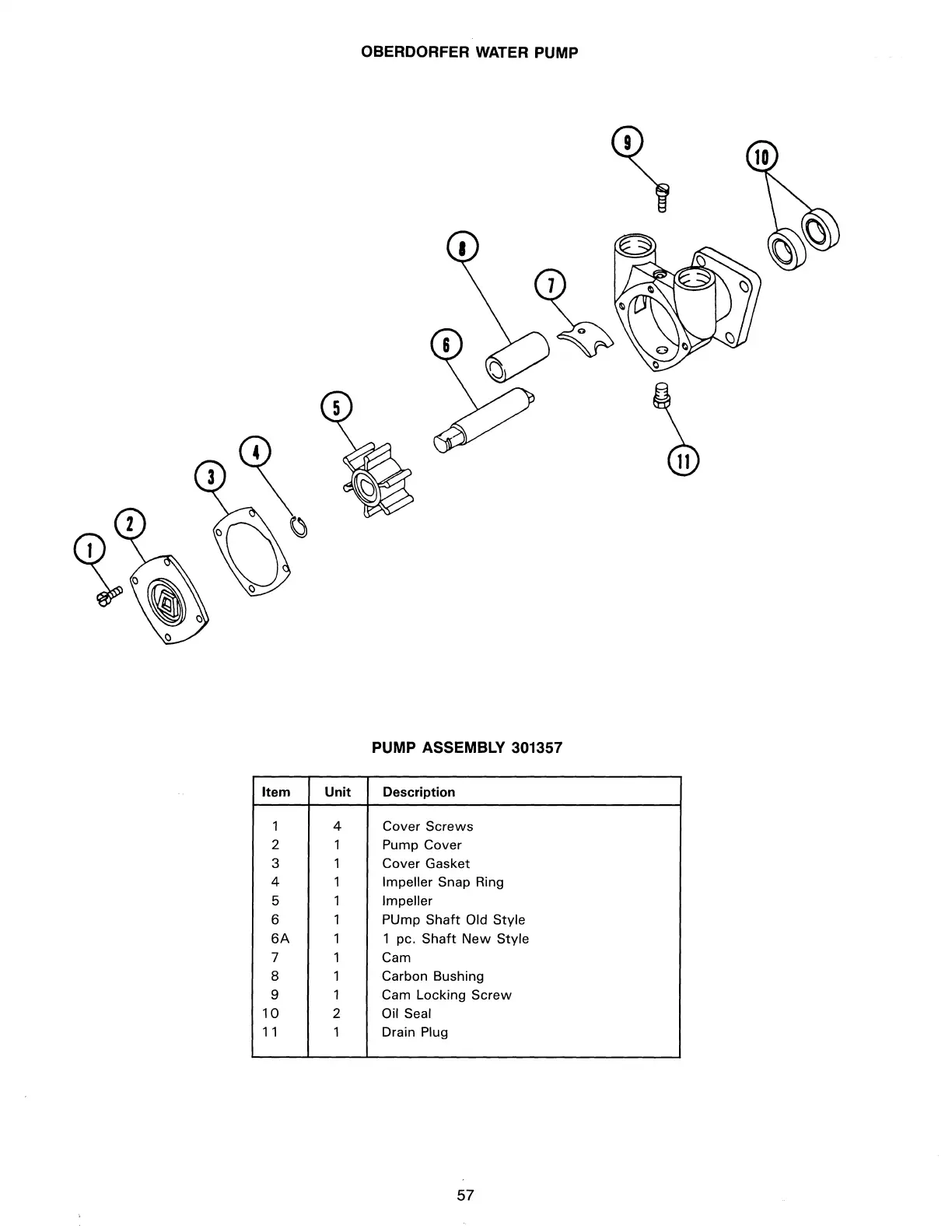

OBERDORFER

WATER

PUMP

PUMP ASSEMBLY 301357

Item Unit Description

1 4 Cover

Screws

Pump

Cover

3 1

Cover Gasket

4 1 Impeller Snap Ring

1 Impeller

1 PUmp

Shaft

Old Style

1 1 pc.

Shaft

New

Style

1 Cam

8 1 Carbon Bushing

9 1 Cam Locking

Screw

2 Oil Seal

1 Drain Plug
