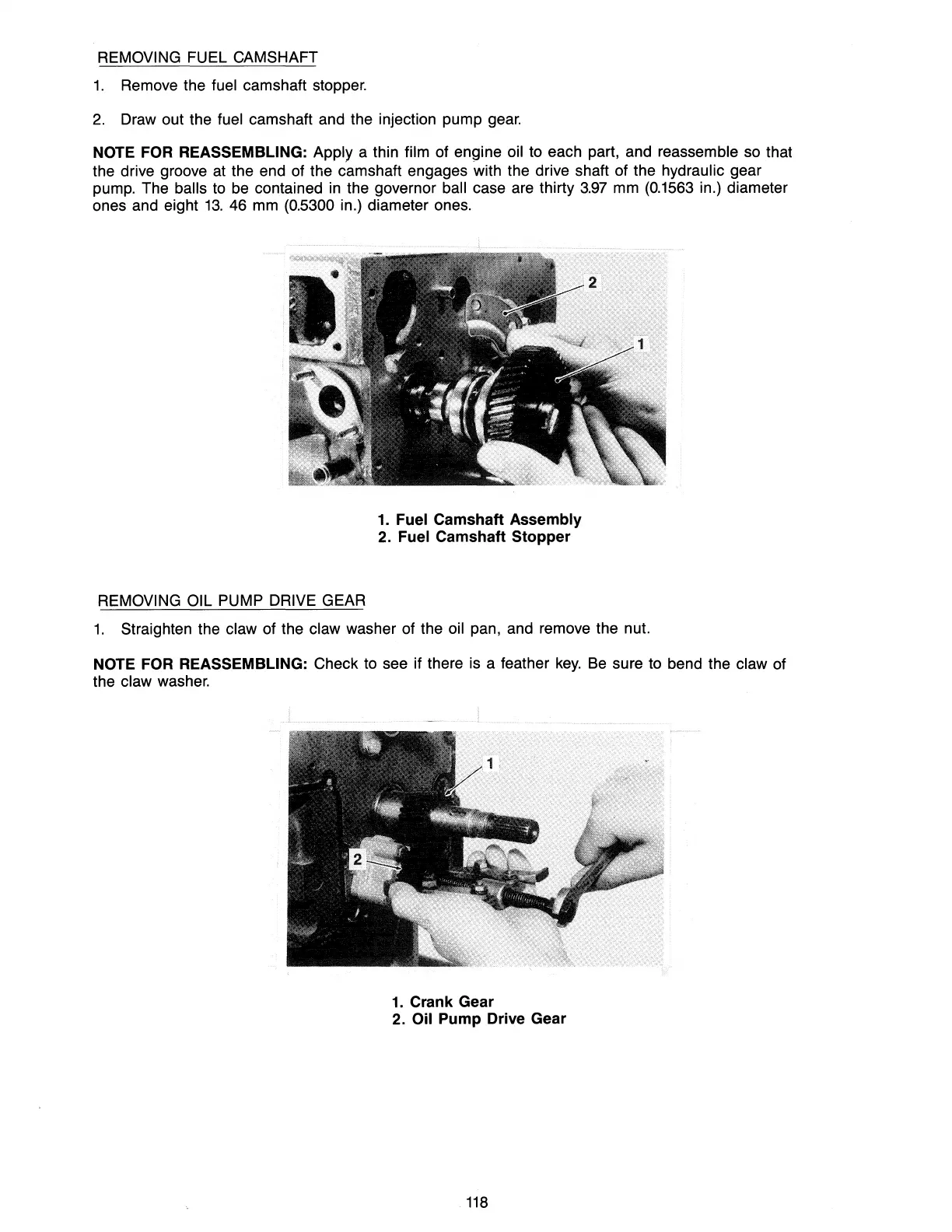

REMOVING FUEL CAMSHAFT
1.
Remove the fuel camshaft stopper.
2.
Draw out the fuel camshaft and the injection pump
gear.
NOTE FOR REASSEMBLING: Apply a thin film of engine oil to each part, and reassemble so that
the drive groove at the end of the camshaft engages with the drive shaft of the
hydraulic gear
pump. The
balls
to
be contained
in
the governor ball case are thirty
3.97
mm
(0.1563
in.) diameter
ones and eight
13.
46
mm
(0.5300 in.) diameter ones.
1.
Fuel Camshaft Assembly
2. Fuel Camshaft
Stopper
REMOVING OIL PUMP DRIVE GEAR
1.
Straighten the claw of the claw washer of the oil pan, and remove the nut.
NOTE FOR REASSEMBLING: Check to see if there is a feather
key.
Be sure to bend the claw of
the
claw washer.
1.
Crank Gear
2.
Oil Pump Drive Gear
118
