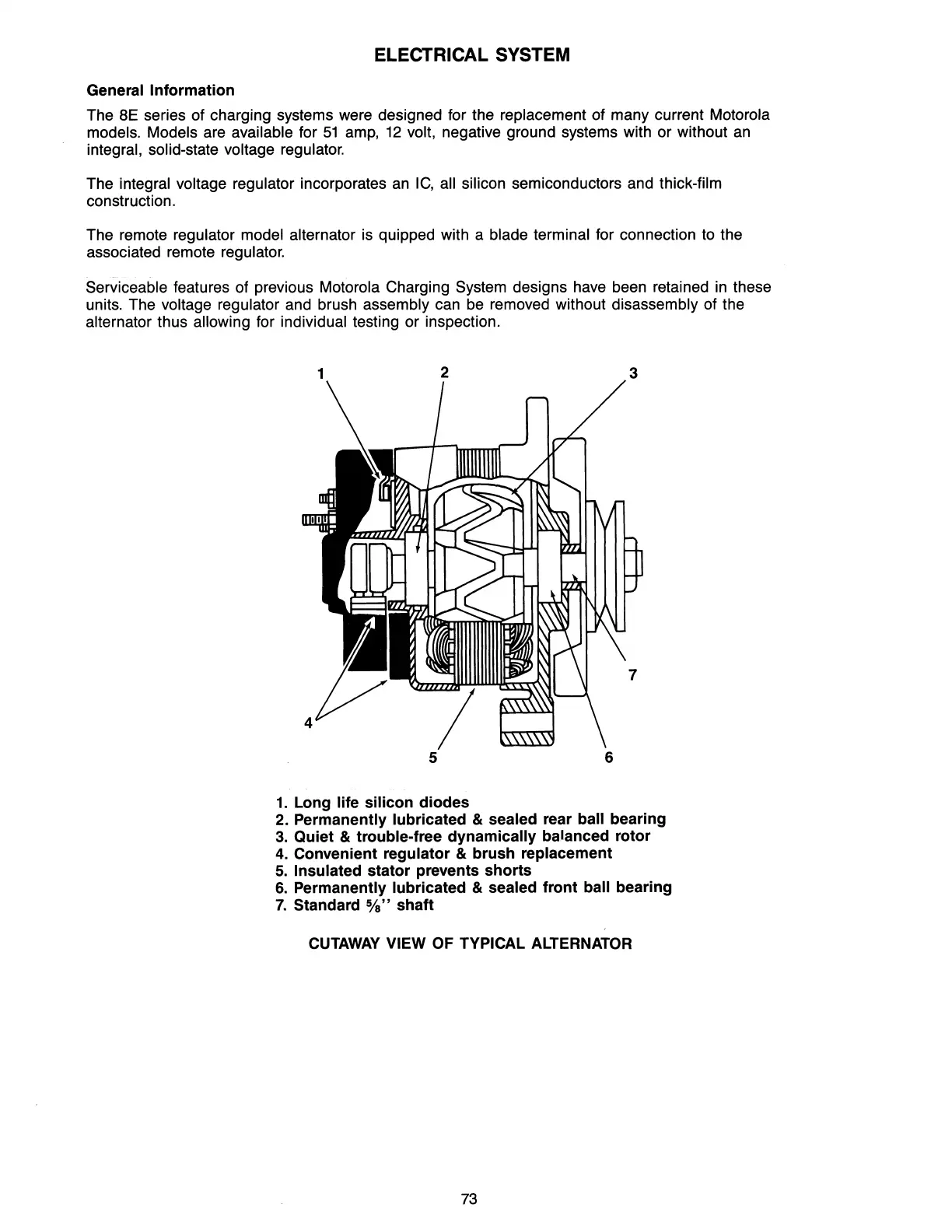

ELECTRICAL SYSTEM
General Information
The 8E series of charging systems were designed for the replacement of many current Motorola
models. Models are
available for
51
amp,
12
volt, negative ground systems with or without an
integral,
solid-state voltage regulator.
The integral voltage regulator incorporates an
IC,
all silicon semiconductors and thick-film
construction.
The remote regulator model alternator is quipped with a blade terminal for connection to the
associated remote regulator.
Serviceable features of previous Motorola Charging System designs have been retained in these
units. The voltage regulator and brush assembly can be removed without disassembly of the
alternator thus allowing for individual testing or inspection.
1
2
3
1.
Long life silicon
diodes
2. Permanently lubricated & sealed rear ball bearing
3.
Quiet & trouble-free dynamically balanced rotor
4.
Convenient regulator & brush replacement
5.
Insulated stator prevents
shorts
6.
Permanently lubricated & sealed
front
ball bearing
7.
Standard
%"
shaft
CUTAWAY
VIEW
OF
TYPICAL ALTERNATOR
73
