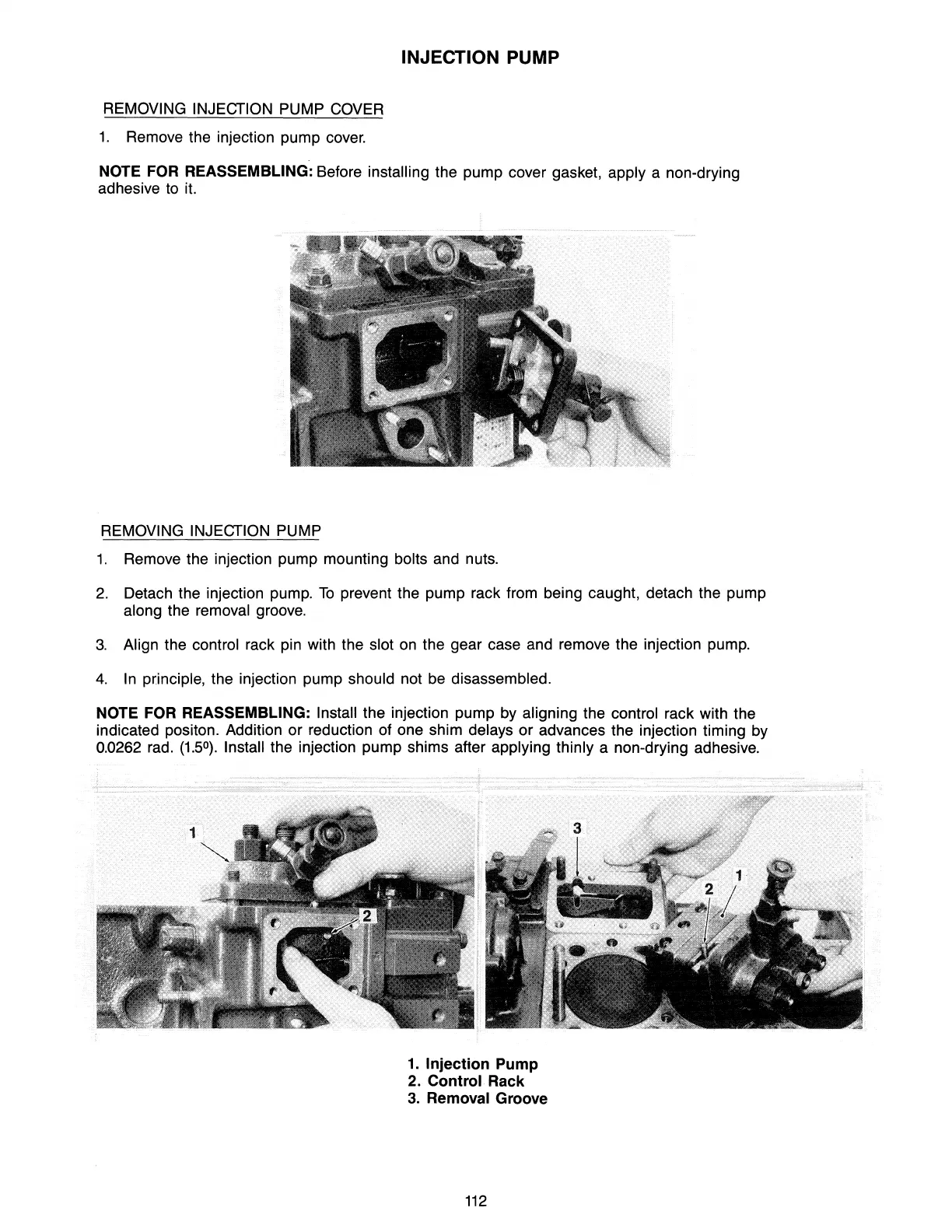

INJECTION PUMP
REMOVING INJECTION PUMP COVER
1.
Remove the injection pump
cover.
NOTE
FOR
REASSEMBLING: Before installing the pump cover gasket, apply a non-drying
adhesive
to
it.
REMOVING INJECTION PUMP
1.
Remove the injection pump mounting bolts and nuts.
2.
Detach the injection pump.
To
prevent the pump rack from being caught, detach the pump
along the removal groove.
3.
Align the control rack pin with the slot
on
the gear case and remove the injection pump.
4.
In
principle, the injection pump should not
be
disassembled.
NOTE
FOR
REASSEMBLING: Install the injection pump
by
aligning the control rack with the
indicated positon. Addition or reduction of one shim delays or advances the injection timing
by
0.0262
rad.
(1.5
0
).
Install the injection pump shims after applying thinly a non-drying adhesive.
1.
Injection Pump
2.
Control Rack
3.
Removal Groove
