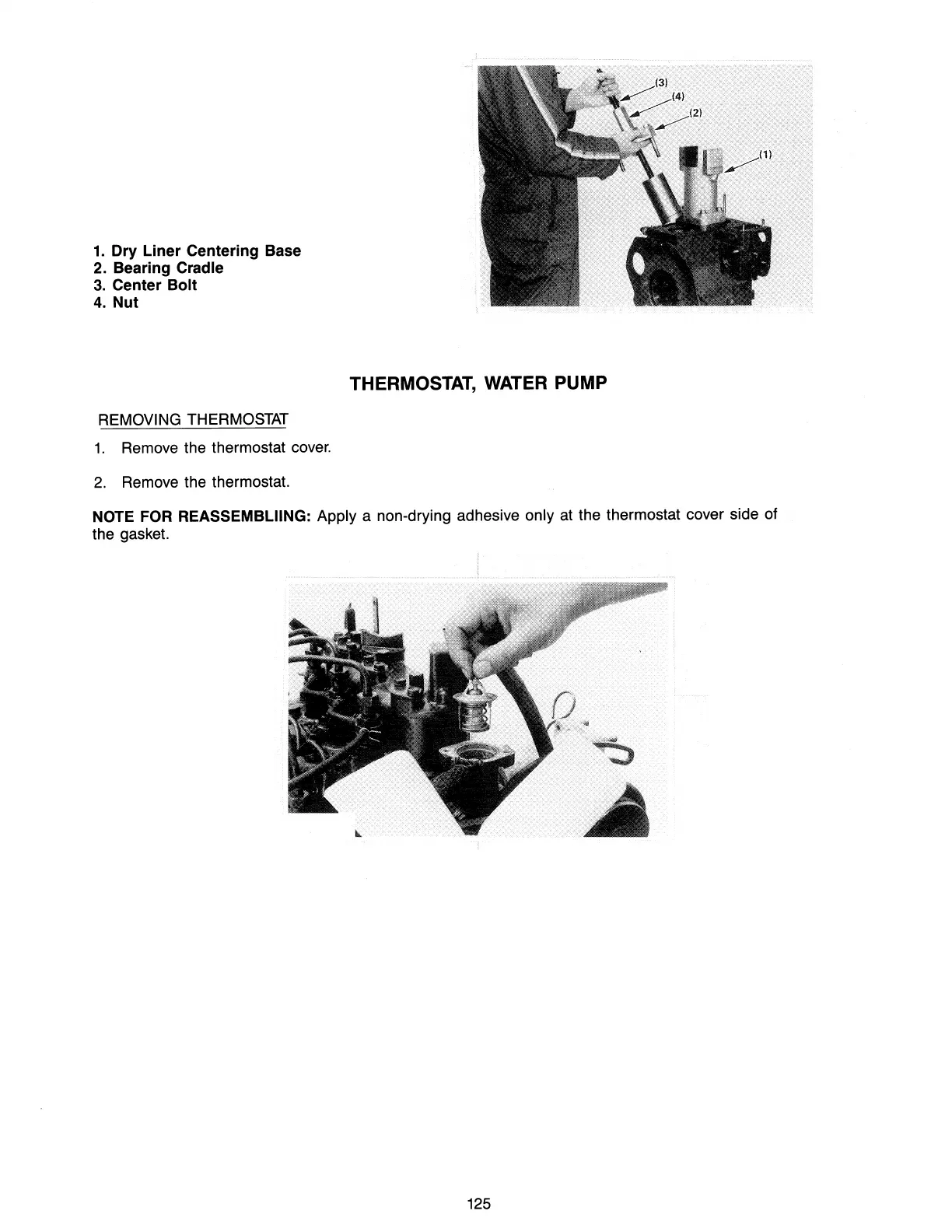

Universal M-25XP - REMOVING THERMOSTAT

1. Dry Liner Centering Base
2. Bearing Cradle
3. Center Bolt
4. Nut
THERMOSTAT, WATER PUMP
REMOVING THERMOSTAT
1. Remove the thermostat cover.
2. Remove the thermostat.
NOTE FOR REASSEMBLIING: Apply a non-drying adhesive only at the thermostat cover side of
the gasket.
125
