Uponor Smatrix Base PULSE User Manual

Remove the star module
1.2 mm
8 mm
1
SI0000094
2
SI0000095

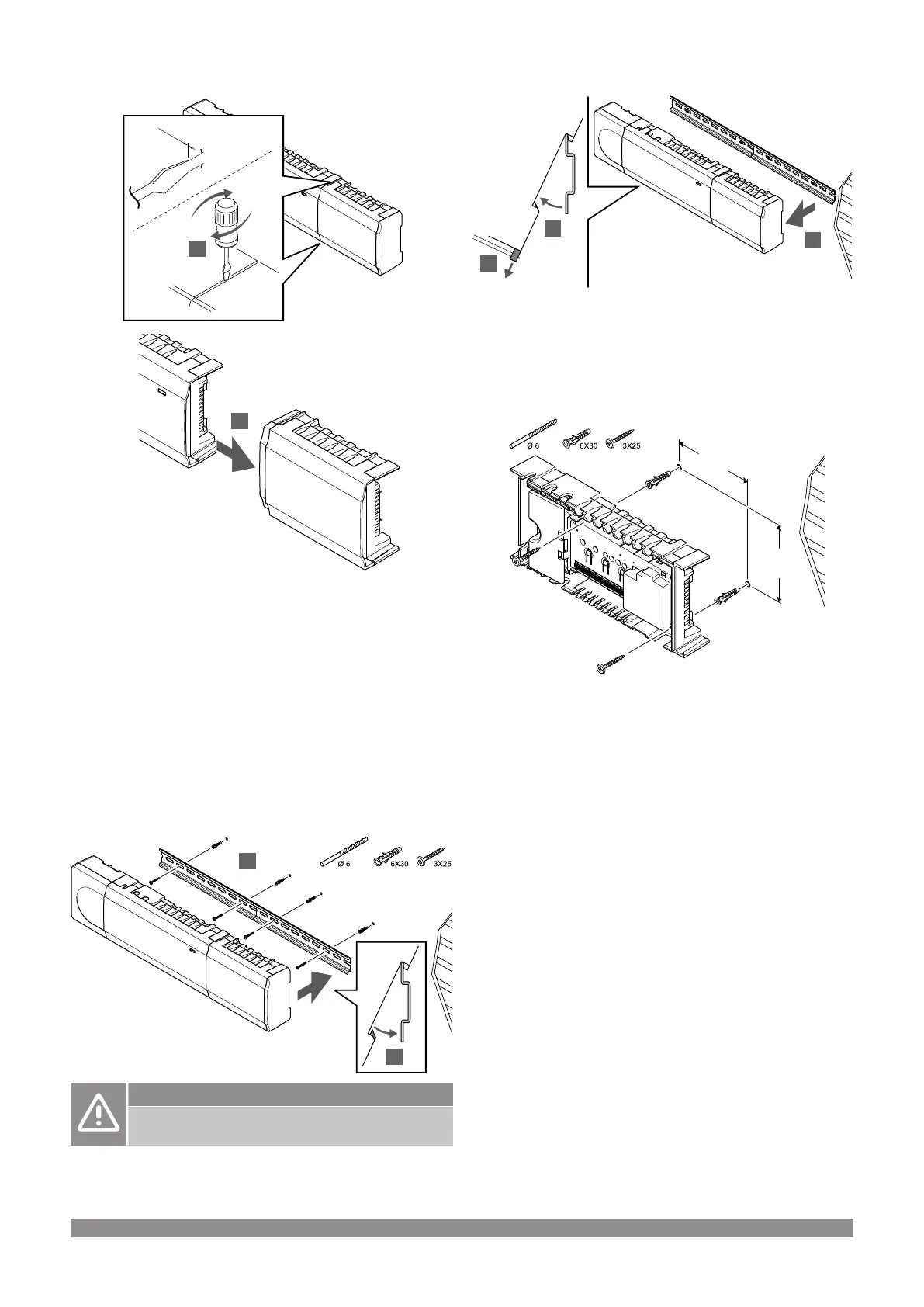

1. Place a wide flat head screwdriver in the slot between the star
module and the other unit and twist until the snap-in lock
releases. Repeat for the other side.
2. Remove the star module. Use caution not to bend the
connection pins.
5.4 Attach room controller to the
wall
Attach the room controller to the wall using a DIN-rail and/or screws
and wall plugs.
Using DIN rail
1
2
SI0000008
Caution!
Make sure the room controller cannot slide off the DIN
rail if mounting it in any other position than horizontal.
1. Fasten the DIN rail to the wall using the screws and wall plugs.
2. Snap the room controller to the DIN rail.
Remove from DIN rail
1
2
3
SI0000093
1. Use a screwdriver (or similar) and extend the springy plastic
catcher from the room controller.
2. Angle the room controller from the wall.
3. Remove the room controller from the DIN rail.
Using screws and wall plugs
110 mm
80 mm
SI0000009
Attach the room controller to the wall using screws and wall plugs.
22
|
Uponor Smatrix Base PULSE
|
Installation and operation manual
