Uponor Smatrix Base PULSE User Manual

3 Uponor Smatrix Base PULSE system
description
Uponor Smatrix Base is a management system for underfloor heating
and cooling installations. Comfort, user friendliness and temperature
control for each individual room of a home can be combined through
the various components.
3.1 System overview
Uponor Smatrix Base consists of a room controller, a communication
module (optional), thermostats, and actuators. The room controller
manages the operation of the actuators when the thermostats detect
a demand for heating or cooling.
System optimization and settings (for up to four room controllers) is
facilitated via the Uponor Smatrix PULSE app (connected via the
communication module). The system can function without the
communication module, but with reduced functionality.
Uponor Smatrix Wave is controlled by different types of thermostats.
Designed for maximum comfort, the thermostats communicate with
the room controller by a wired communication protocol. It is possible
to mix the different types of Uponor Smatrix Base thermostats in the
same installation.
SD0000015

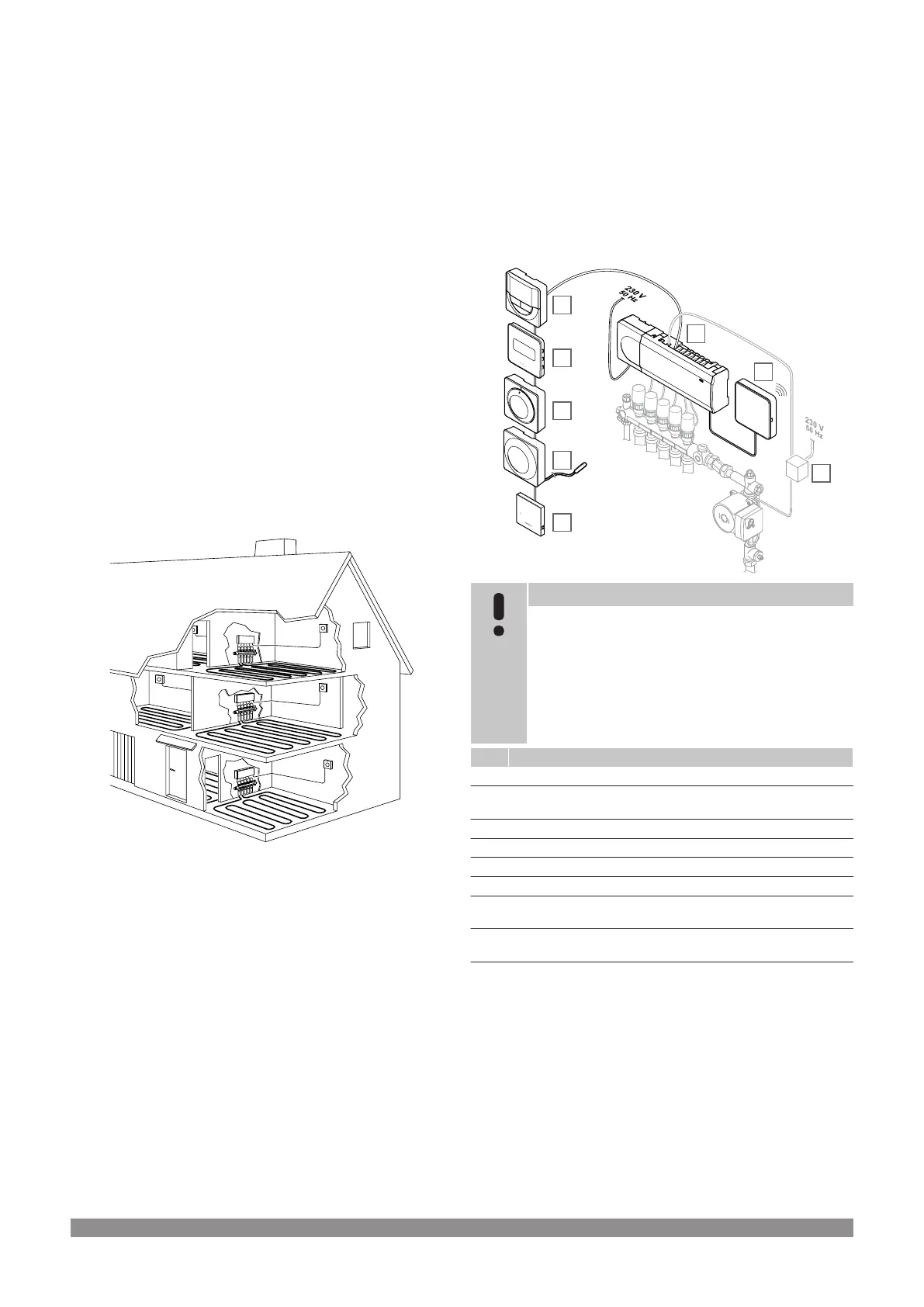

3.2 Example of a system
The illustration below shows Uponor Smatrix Base with several
installation options and thermostats.
CD0000132
B
A
D
E
F
G
H
C
Note
The floor sensor can be connected to a thermostat
(except the T-141, T-144, or T-145). Which can be used
for floor temperature limitation.
For example, the maximum limitation can protect a
sensitive floor covering from exposure of too high
temperatures when there is a high heating demand. The
minimum limitation can keep a tiled floor warm even
when there is a no general heating demand for the room.
Item Description
A Uponor Smatrix Base T-146, Page 10 (digital thermostat)
B Uponor Smatrix Base T-149, Page 10 (digital thermostat with
RH) with floor sensor
C Uponor Smatrix Base T-145, Page 9 (standard thermostat)
D Uponor Smatrix Base T-143, Page 9 (public thermostat)
E Uponor Smatrix Base T-141, Page 8 (room sensor thermostat)
F Uponor Smatrix Base PULSE X-245, Page 7 (room controller)
G Uponor Smatrix PULSE Com R-208, Page 8 (communication
module)
H External connection box for pumps (third-party product, just
schematic example in illustration)
6
|
Uponor Smatrix Base PULSE
|
Installation and operation manual
