Uponor Smatrix Base PULSE

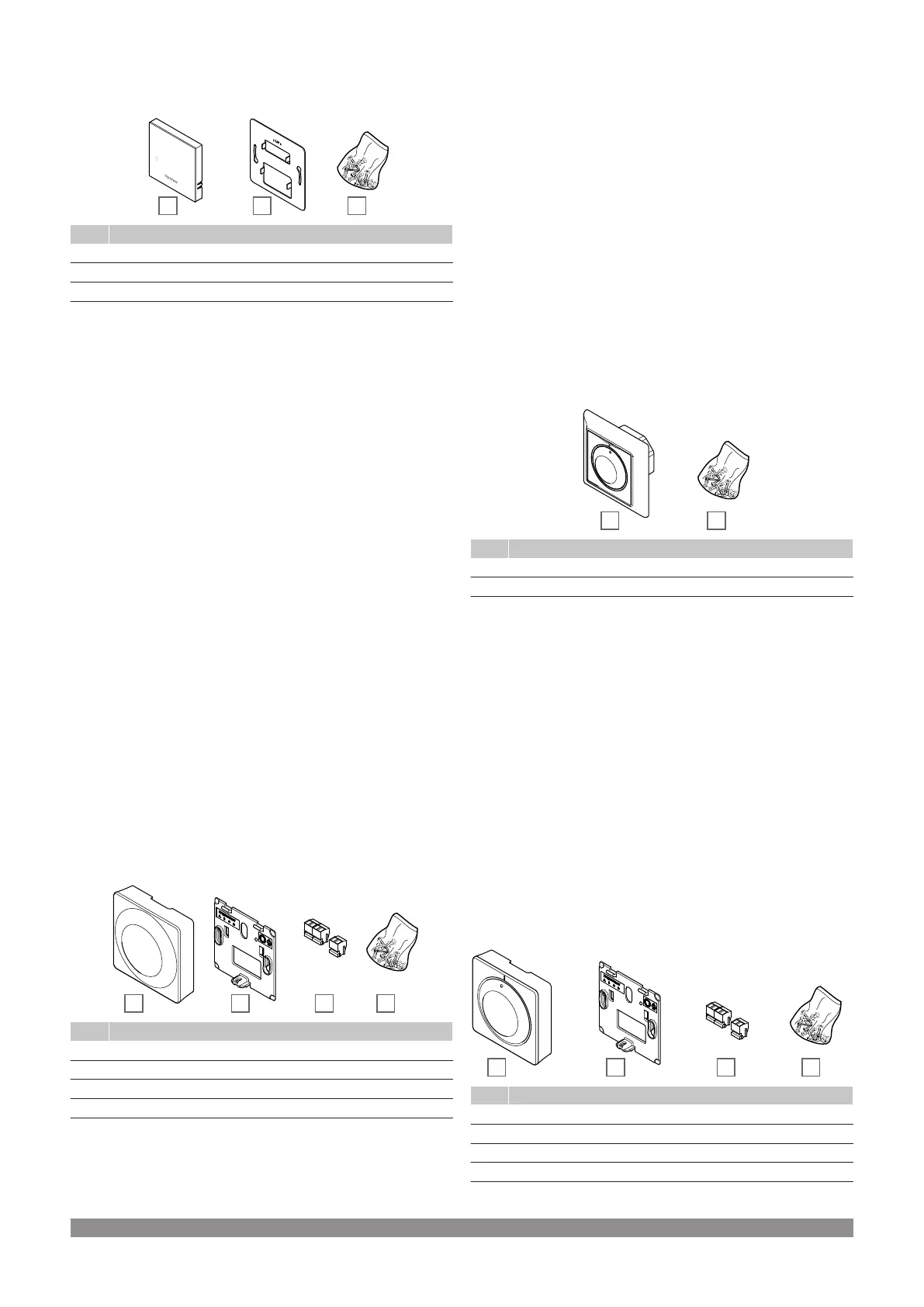

Components of the thermostat:
The illustration below shows the thermostat and its components.
A
B C
CD0000134
Item Description
A Uponor Smatrix Base T-141
B Metal wall bracket
C Mounting material
Uponor Smatrix Base T-143
The thermostat is designed for public locations which means that the
dial is hidden. It must be removed from the wall to set the
temperature. When removed, an alarm is triggered (if activated).
The thermostat can be registered as a system device, enabling extra
functions. When functioning as a system device, the internal room
sensor is disabled.
Main characteristics:
• Adjust setpoint temperature with a potentiometer on the back of
the thermostat.
• Setpoint range is 5 – 35 °C (maximum and minimum setting may
be limited by other system settings).
• Alarm is indicated on the room controller if removed from wall for
tamper detection. Using the Uponor Smatrix PULSE app
(requires communication module), the alarm will be displayed in
the app as well.
• Dry contact input for forced ECO mode of operation, if registered
as a system device.
• Optional external temperature sensor can be connected to the
thermostat. Floor temperature limitation settings (maximum and
minimum) are only available using the Uponor Smatrix PULSE
app (requires communication module). Otherwise system
defaults are used for limitation.
• Optional outdoor temperature sensor can be registered as either
standard thermostat or system device.
• Dip switch for selecting between function or sensor mode of
operation.
• Enable or disable Comfort/ECO scheduling for the room with a
dip switch on the back.
Components of the thermostat:
The illustration below shows the thermostat and its components.
A B C D
CD0000135
Item Description
A Uponor Smatrix Base T-143
B Wall bracket
C Connection terminals
D Mounting material
Uponor Smatrix Base T-144
The thermostat temperature settings are adjusted using the dial.
Maximum/minimum temperatures can only be set using the Uponor
Smatrix PULSE app (requires communication module). The 21 °C
position is marked on the dial.
Main characteristics:
• Flush installation, specially designed for in-wall box installation.
• Adjust temperature setpoint with large dial.
• Printed scale on the dial.
• Setpoint range is 5 – 35 °C (maximum and minimum setting may
be limited by other system settings).
• LED indicating, for about 60 seconds, whether a heating or
cooling demand exists.
• Enable or disable Comfort/ECO scheduling for the room with a
dip switch beneath the dial, which have to be removed for
access.
• Different frames can be used for installation in a switch rail
frame.
Components of the thermostat:
The illustration below shows the thermostat and its components.
A B
CD0000136
Item Description
A Uponor Smatrix Base T-144
B Mounting material
Uponor Smatrix Base T-145
The thermostat temperature settings are adjusted using the dial.
Maximum/minimum temperatures can only be set using the Uponor
Smatrix PULSE app (requires communication module). The 21 °C
position is marked on the dial.
Main characteristics:
• Adjust temperature setpoint with large dial.
• LED ring indication when twisting the dial (changing temperature
setpoint).
• Setpoint range is 5 – 35 °C (maximum and minimum setting may
be limited by other system settings).
• LED in lower right corner indicating, for about 60 seconds,
whether a heating or cooling demand exists.
• Enable or disable Comfort/ECO scheduling for the room with a
dip switch on the back.
Components of the thermostat:
The illustration below shows the thermostat and its components.
A B C D
CD0000137
Item Description
A Uponor Smatrix Base T-145
B Wall bracket
C Connection terminals
D Mounting material
Uponor Smatrix Base PULSE
|
Installation and operation manual
|
9
