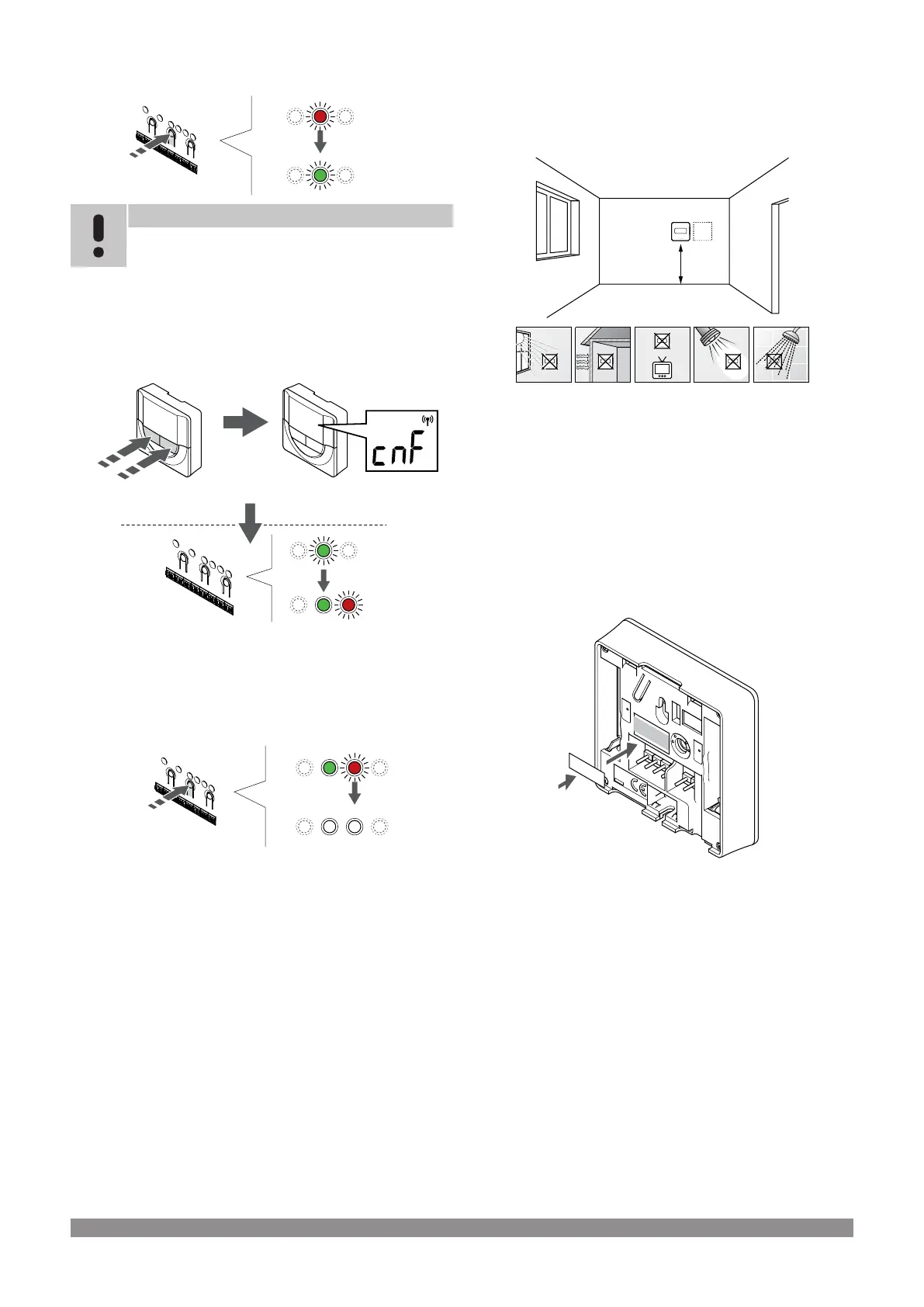

3. Lock selected channel
SI0000071
Note
It is recommended to register all channels to the
thermostat at the same time.
Press the OK button to select the channel for registration. The LED
for the selected channel starts flashing green.
Select all channels to be registered to the thermostat and continue to
the next step.
4. Register thermostat
5 s
SI0000072
Press and hold both - and + buttons on the thermostat until the text
CnF (configure) and a communication icon is displayed.
The selected channel LED in the room controller turns fixed green
and the registration is complete.
5. Exit registration mode
3 s
SI0000078
Press and hold the OK button on the room controller until the green
LEDs turn off to end registration and return to run mode.
To unregister already registered thermostats, see Unregister room
controller channels, Page 62.
6.6
Uponor Smatrix Base T-148
Placement of thermostat
1.3–1.5 m
SD0000002
Select an indoor wall and a position 1.3 m to 1.5 m above the
floor.
Ensure that the thermostat is away from direct sunlight.
Ensure that the thermostat will not be heated through the wall by
sunshine.
Ensure that the thermostat is away from any source of heat, for
example television set, electronic equipment, fireplace,
spotlights, and so on.
Ensure that the thermostat is away from any source of humidity
and water splashes (IP20).
Label thermostat
#01
#01
SI0000134
Label the thermostat, where suitable, with the channel numbers they
are to control, for example, #02, #03. For a system with several room
controllers, add the ID of each room controller, for example, 1.02,
1.03, 2.02, 2.03.
If an external sensor is connected, add information about sensor type
when applicable.
Available thermostat and sensor combinations:
Room temperature
Room and floor temperature
Room and outdoor temperature
Remote sensor temperature
