Uponor Smatrix Base PULSE User Manual

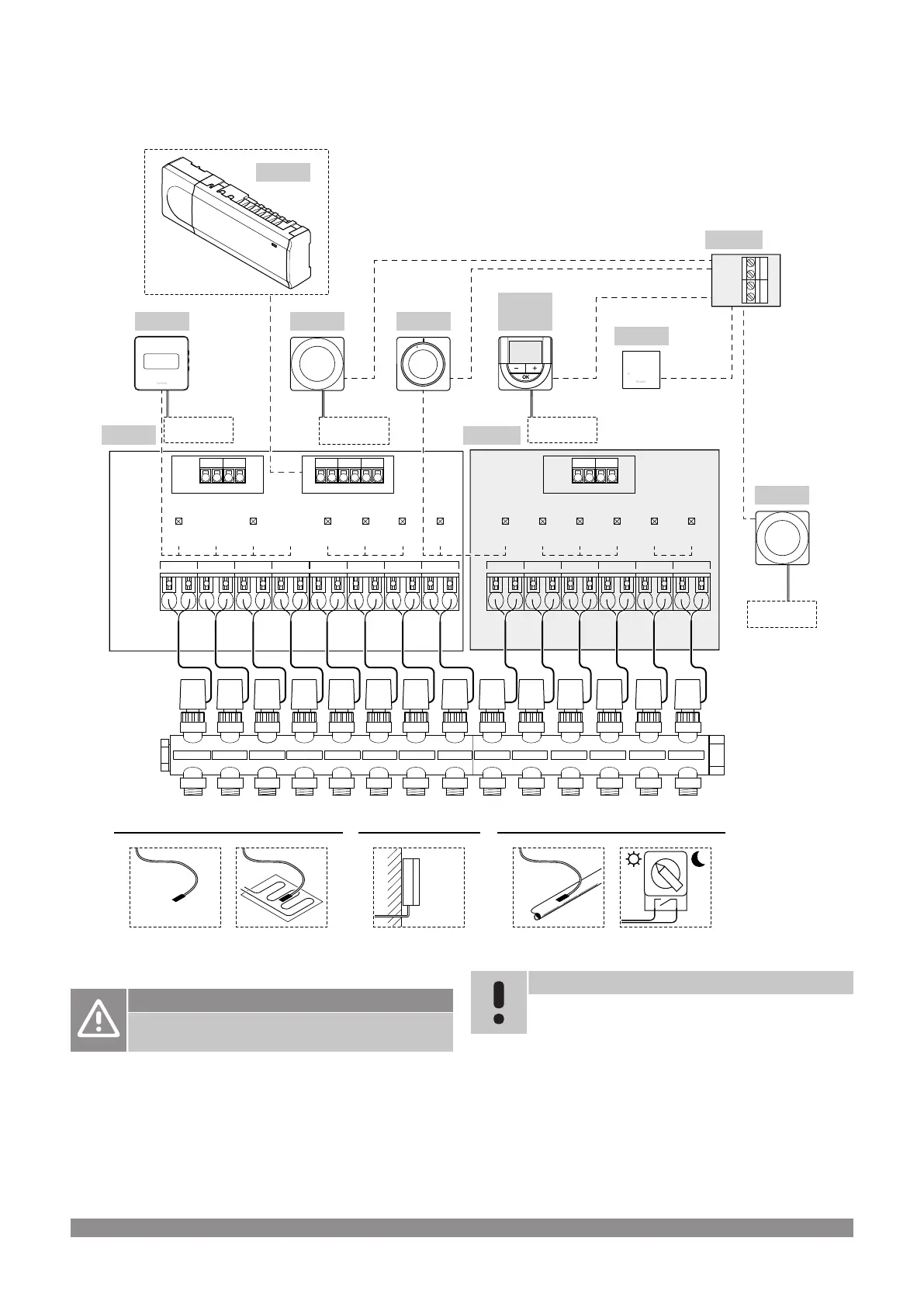

4.3 Installation example
M-242*
M-243*
X-245
T-146
T-148
T-141
T-145T-143T-149
T-143
SD0000016
24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V
03
#01 #08 #11#03
02a 02b01b01a 09 10 11 12080704 05
030201 04 05
06
8 x
3 x3 x
A+BA+B
A CB
T
S
TT T
T S T
T
#06
T
A+B+C
#03 - #05
S
B+C
A
B
+
-
A
B
+
-
A
B
-
A
B
-
A
B
+
-
X-245
#01
S
*) This example contains optional accessories which adds six actuator outputs
(slave module M-242) and extra bus connectors (slave module M-242 and star
module M-243) to the Uponor Smatrix Base PULSE controller
Caution!
Only 24 V Uponor actuators are compatible with the
room controller.
See Wiring diagram, Page 92, for more information
Uponor Smatrix Base PULSE system
Note
Setting up a system with a communication module
requires a mobile device (smart phone/tablet).
A connection example of Uponor Smatrix Base PULSE room
rontroller (six channels) with optional Uponor Smatrix Base PULSE
Slave Module (six extra channels and three extra bus connectors),
and Uponor Smatrix Base PULSE Star Module (eight extra bus
connectors), using system devices (S) and thermostats (T) as shown
in figure.
The installation will work in a standard way with the thermostats
regulating each room according to their set temperatures.
16
|
Uponor Smatrix Base PULSE
|
Installation and operation manual
