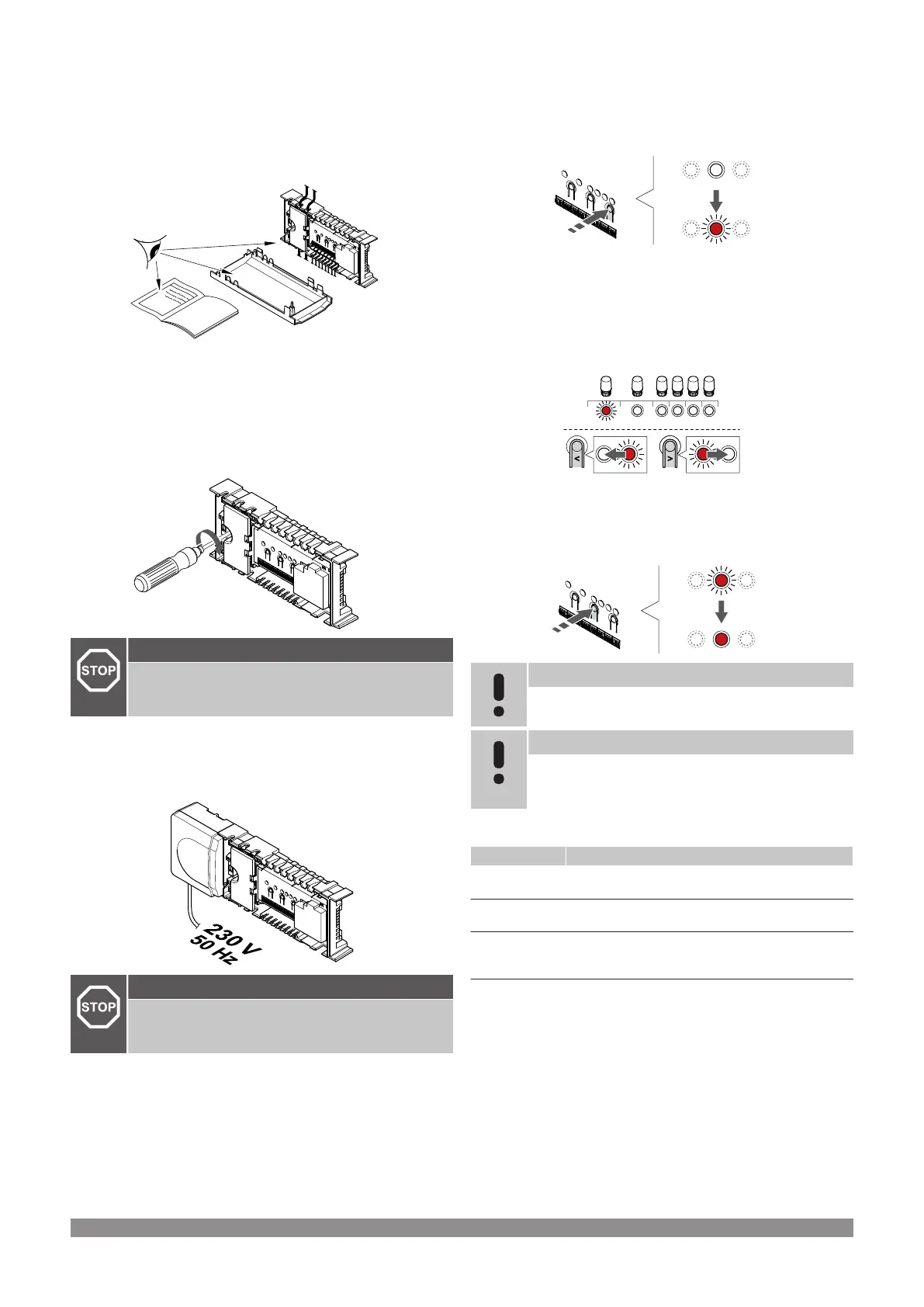

5.11 Connect room controller to
AC power
1. Check wiring
Check that all wiring is complete and correct:
• Actuators
• GPI connection (Heating/cooling switch)
• Relay connections (Circulation pump)
2. Close 230 V AC compartment
Warning!
Risk of electrical shock! Electrical installation and service
behind secured 230 V AC covers must be carried out
under the supervision of a qualified electrician.
Ensure that the 230 V AC compartment of the room controller is
closed and the fixing screw is tightened.
3. Power up the room controller
Warning!
Risk of electrical shock! Electrical installation and service
behind secured 230 V AC covers must be carried out
under the supervision of a qualified electrician.
Connect the power cable to a 230 V AC wall socket, or if required by
local regulations, to a junction box.
5.12
Test actuators
1. Enter forced mode
Press the > button, while in run mode, to enter forced mode.
The room controller is in run mode during regular operation.
Otherwise press and hold the OK button for about 3 seconds to exit
to run mode.
2. Select a channel
Use buttons < or > to move the pointer (LED flashes red) to a
preferred channel.
3. Test channel
Note
To end forced operation, enter forced mode, select the
active channel, and press the OK button.
Note
Testing an actuator takes about 10 minutes and the room
controller automatically returns to run mode when
finished.
Press the OK button to activate forced mode for the selected
channel.
Channel LED Status
Solid red The actuator starts opening and the system exits to
run mode.
Flashing red The channel cannot be chosen for forced operation.
Try again later.
Off Actuator management may be delaying the actuator,
if more than eight channels are opened at the same
time.
Uponor Smatrix Base PULSE
|
Installation and operation manual
|
35
