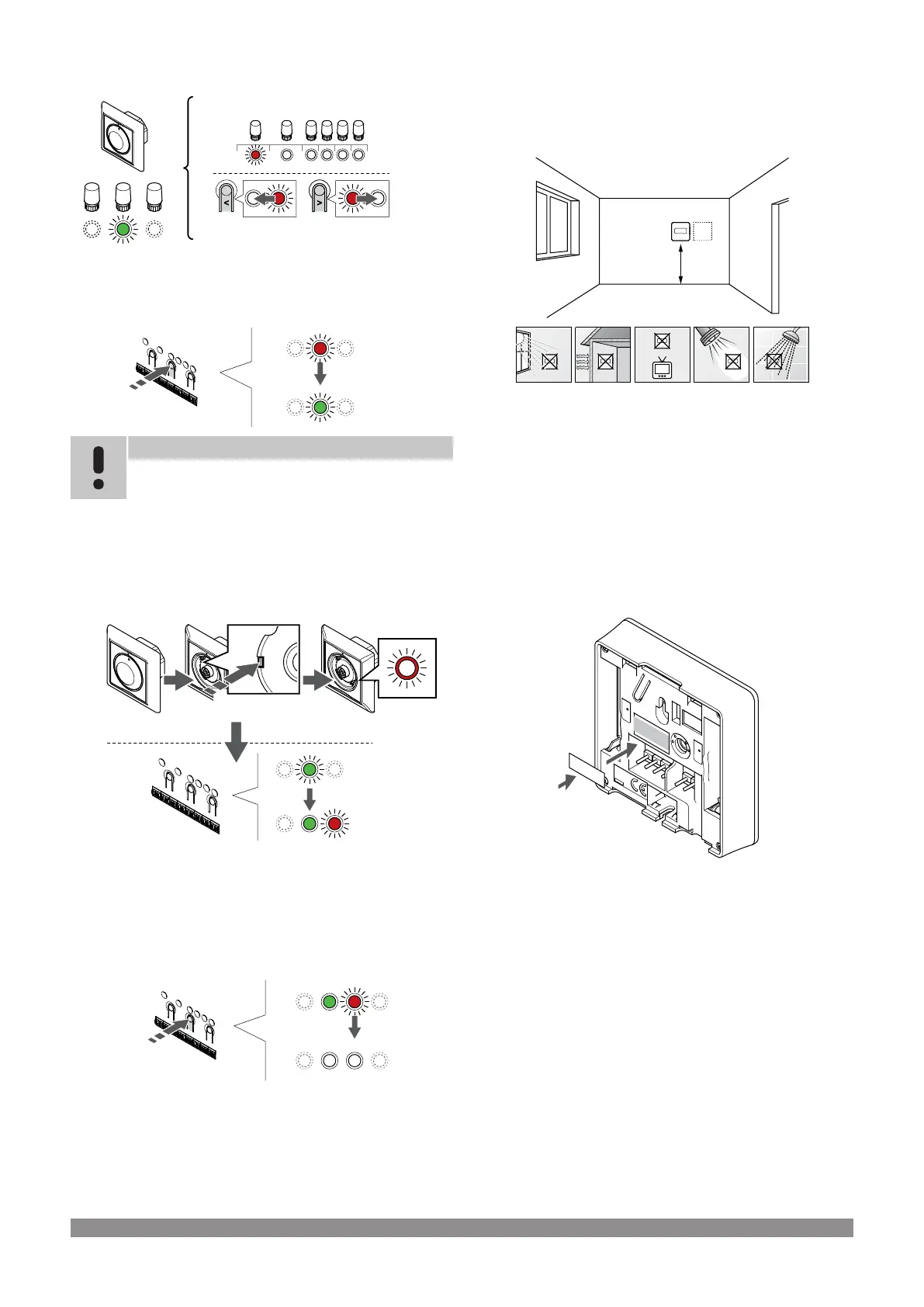

2. Select a channel
Use buttons < or > to move the pointer (LED flashes red) to a
preferred channel.
3. Lock selected channel
Note
It is recommended to register all channels to the
thermostat at the same time.
Press the OK button to select the channel for registration. The LED
for the selected channel starts flashing green.
Select all channels to be registered to the thermostat and continue to
the next step.
4. Register thermostat
Using a pointed instrument, gently press and hold the registration
button on the thermostat, release when the LED above the dial starts
flashing.
The selected channel LED in the room controller turns fixed green
and the registration is complete.
5. Exit registration mode
Press and hold the OK button on the room controller until the green
LEDs turn off to end registration and return to run mode.
6.4
Uponor Smatrix Base T-145
Placement of thermostat
• Select an indoor wall and a position 1.3 m to 1.5 m above the
floor.
• Ensure that the thermostat is away from direct sunlight.
• Ensure that the thermostat will not be heated through the wall by
sunshine.
• Ensure that the thermostat is away from any source of heat, for
example television set, electronic equipment, fireplace,
spotlights, and so on.
• Ensure that the thermostat is away from any source of humidity
and water splashes (IP20).
Label thermostat
Label the thermostat, where suitable, with the channel numbers they
are to control, for example, #02, #03. For a system with several room
controllers, add the ID of each room controller, for example, 1.02,
1.03, 2.02, 2.03.
