Uponor Smatrix Base PULSE

Components of the room controller

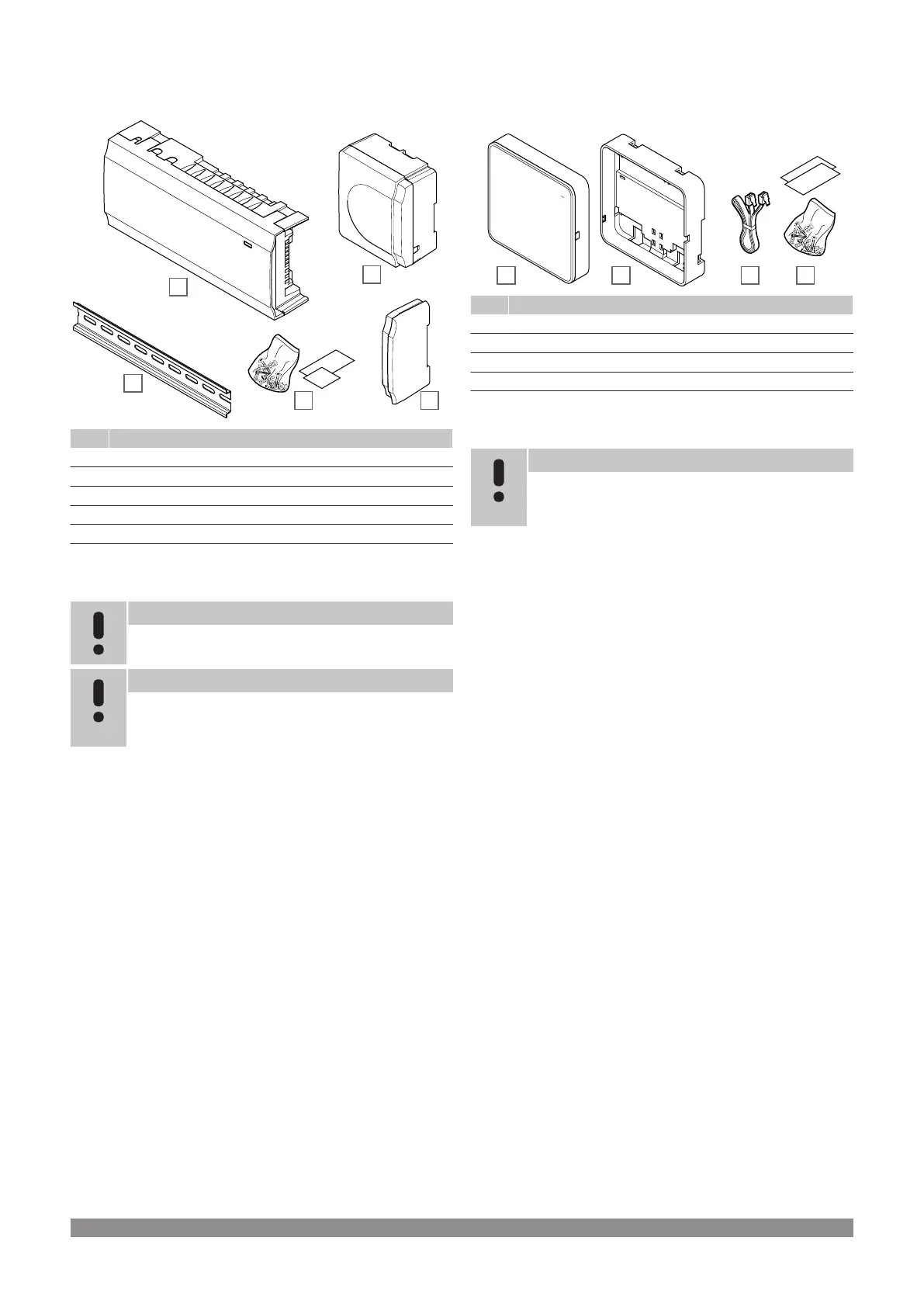

The illustration below shows the room controller and its components.
A
C
D E
B
CD0000159
Item Description
A Uponor Smatrix Base PULSE X-245
B Transformer module
C DIN rail
D Mounting material
E End cap
Communication module
Note
Setting up a system with a communication module
requires a mobile device (smart phone/tablet).
Note
It is recommended to attach the communication module
to a wall outside of the cabinet when using Wi-Fi
connection.
The communication module enables local and remote (requires
connection to Uponor cloud services) access to the room controller
from a mobile device (using the Uponor Smatrix PULSE app).
The communication module contains a local network module for Wi-
Fi or ethernet communication.
The app acts as a link between the user/installer and the room
controller(s) running in the system, displaying information and
enabling simplified programming of all relevant system settings. The
Uponor Smatrix PULSE app can be downloaded from Google Play
(Android) or App Store (iOS).
The Uponor Smatrix Wave system can be operated without the app
and communication module, but only with basic functionality (using
the thermostats).
Uponor Smatrix PULSE Com R-208
Main characteristics:
• Uponor Smatrix PULSE app connectivity via either Wi-Fi or
ethernet.
• Extra functionality (using Uponor Smatrix PULSE app):
-
Heating/cooling settings
-
Extra relay functionality (chiller, dehumidifier etc).
-
Integrate up to four room controller into one system.
Options:
• Cabinet or wall mounted (DIN rail or supplied screws).
Components of the communication module
The illustration below shows the communications module and its
components.
BA DC
CD0000026
Item Description
A Uponor Smatrix PULSE Com R-208
B Optional back mount for DIN-rail
C Communication cable
D Mounting material
Thermostats
Note
The thermostat is affected by the temperature of the
surrounding surfaces as well as the ambient air
temperature.
The thermostats communicate with the controller by a wired
communication protocol and are used either individually or in
combination with each other.
The following Uponor Smatrix thermostats can be used in the system:
• Uponor Smatrix Base T-141, Page 8
• Uponor Smatrix Base T-143, Page 9
• Uponor Smatrix Base T-144, Page 9
• Uponor Smatrix Base T-145, Page 9
• Uponor Smatrix Base T-146, Page 10
• Uponor Smatrix Base T-148, Page 10
• Uponor Smatrix Base T-149, Page 10
Uponor Smatrix Base T-141
The thermostat is designed to be as small as possible, and still able
to control the room temperature.
Main characteristics:
• Operative sensor for increased comfort.
• Adjust setpoint temperature via the Uponor Smatrix PULSE app
(requires communication module).
• Setpoint range is 5 – 35 °C (maximum and minimum setting may
be limited by other system settings).
• Relative humidity limit indicated in the Uponor Smatrix PULSE
app (requires communication module).
8
|
