Uponor Smatrix Base PULSE User Manual

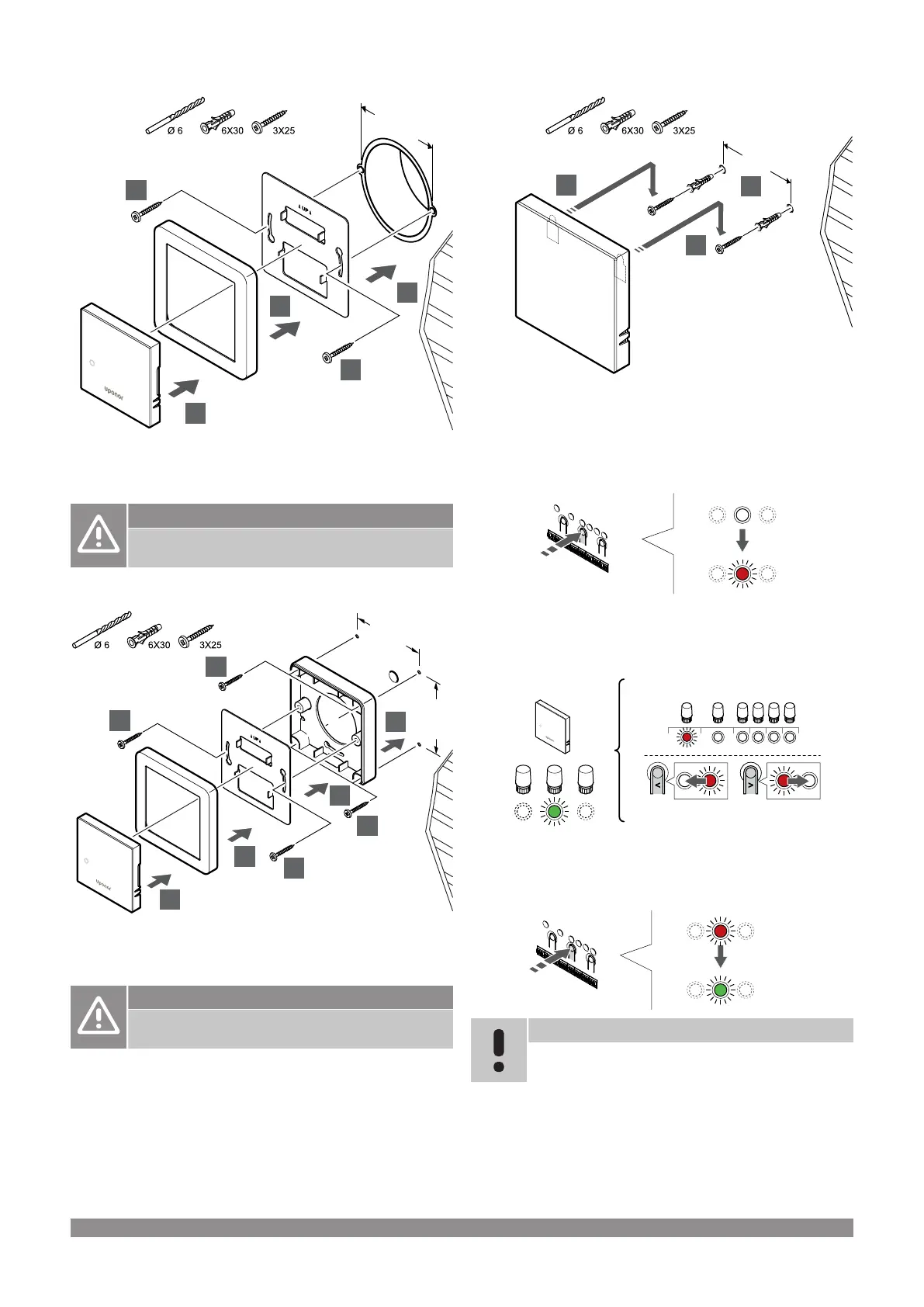

Wall bracket (recommended)
60 mm
1
2
2
3
4
SI0000130
Sensor frame not supplied by Uponor.
Attach the thermostat to the wall using the wall bracket, screws and
wall plugs.
Caution!
Do not overtighten the screws for the wall bracket. It may
cause the metal to distort.
Using wall bracket and surface adaptor (optional)
64 mm
64 mm
1
2
2
3
4
5
6
4
SI0000131
Sensor frame not supplied by Uponor.
Attach the thermostat to the wall using the wall bracket, optional
surface adaptor, screws and wall plugs.
Caution!
Do not overtighten the screws for the wall bracket. It may
cause the metal to distort.
Screw and wall plug
38 mm
1
2
3
SI0000132
Attach the thermostat to the wall using the screw and wall plug.
Register thermostat to room controller
1. Enter registration mode
3 s
SI0000065
Press and hold the OK button on the room controller until the LED for
channel 1 (or the first unregistered channel) flashes red.
2. Select a channel
SI0000070
1 65432
Use buttons < or > to move the pointer (LED flashes red) to a
preferred channel.
3. Lock selected channel
SI0000071
Note
It is recommended to register all channels to the
thermostat at the same time.
Press the OK button to select the channel for registration. The LED
for the selected channel starts flashing green.
Select all channels to be registered to the thermostat and continue to
the next step.
Uponor Smatrix Base PULSE
|
Installation and operation manual
|
37
