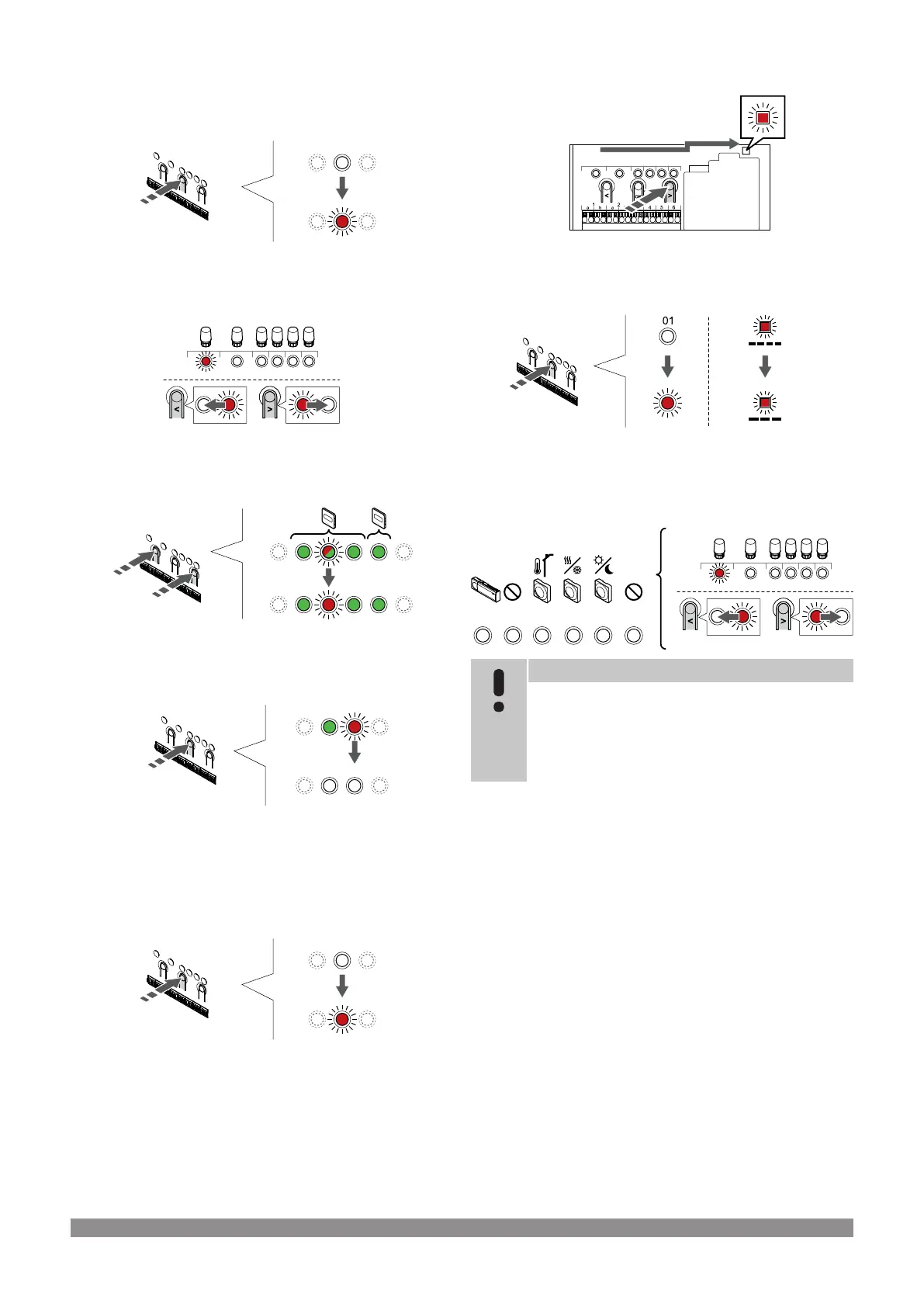

Unregister a room controller channel
1. Enter registration mode
Press and hold the OK button on the room controller until the LED for
channel 1 (or the first unregistered channel) flashes red.
2. Select a channel
Use buttons < or > to move the pointer (LED flashes red) to the
channel to unregister (solid green LED).
3. Unregister the channel
Press the < and > buttons simultaneously until the LED for the
selected channel starts flashing red (about 5 seconds).
4. Exit registration mode
Press and hold the OK button on the room controller until the green
LEDs turn off to end registration and return to run mode.
Unregister a system device channel
1. Enter registration mode
Press and hold the OK button on the room controller until the LED for
channel 1 (or the first unregistered channel) flashes red.
2. Move the channel pointer to the power LED
Use buttons < or > to move the pointer to the power LED (LED
flashes red).
3. Enter system device registration mode
Press the OK button to enter system device registration mode (power
LED). The power LED starts flashing according to the pattern long
blink, short pause, long blink. Channel 1 starts flashing red.
4. Select a channel
02 03 04 05 0601
SI0000159
1 65432
Note
If unregistering system device channel 1 from a sub room
controller, all remaining sub room controllers must be
unregistered from the master room controller (system
device channel 1). Register the remaining sub room
controllers to the master room controller again when
finished.
Use buttons < or > to move the pointer (LED flashes red) to the
channel to unregister (solid green LED).
Channel
1 Sub room controller
2 Not used
3 Public thermostat with outdoor sensor.
4 Public thermostat with heating/cooling switch from sensor input
(requires communication module).
5 Public thermostat with Comfort/ECO switch from contact.
6 Not used
Uponor Smatrix Base PULSE
|
Installation and operation manual
|
63
